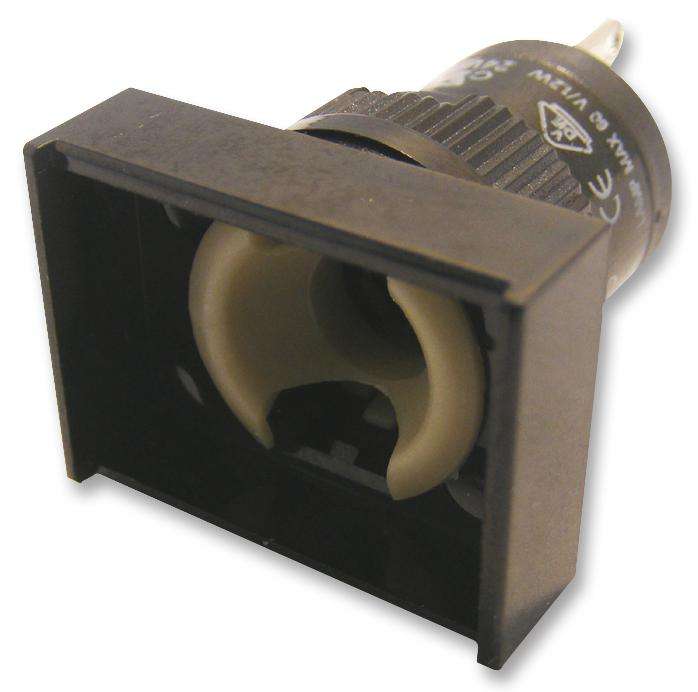

Multicomp Pro (D16-LAT1-1AB) Industrial Pushbutton Switch, 16 mm

Multicomp Pro (D16-LAT1-1AB) Industrial Pushbutton Switch, 16 mm

New 109 available
R749.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1736753
Bob Shop ID
674509330
Industrial Pushbutton Switch, 16 mm, SPST-NO, SPST-NC, On-Off, RectangularProduct InformationPushbutton Switch Type: IndustrialSwitch Operation: On-OffProduct Range: -Panel Cutout Diameter: 16mmContact Configuration: SPST-NO, SPST-NCPushbutton Actuator Style: RectangularIP Rating: -Actuator / Cap Colour: -Contact Current Max: 8AContact Voltage AC Nom: 250VContact Current AC Max: 8AContact Voltage VAC: 125VContact Voltage DC Nom: 24VContact Current DC Max: 6AContact Voltage VDC: 24VSwitch Mounting: Panel MountSwitch Terminals: SolderIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe D16-LAT1-1AB is a single-pole double-throw (SPDT) 16mm latching PushbuttonSwitch with solder terminal, rectangular head and 1NO + 1NC contacts. The 16series switch has high-grade temperature thermoplastic body. The contact is madefrom soldering type-silver is standard and socket type-pin with golden plating.Contact housing is moulded in electrical high-grade thermosetting plastic. Eachcontact block has one double break snap action switching mechanism.Alternate action switch mode2 million operations Mechanical lifetimeSilver contacts3mm Operating travel2 to 5N Actuating force depending on number of contact block
