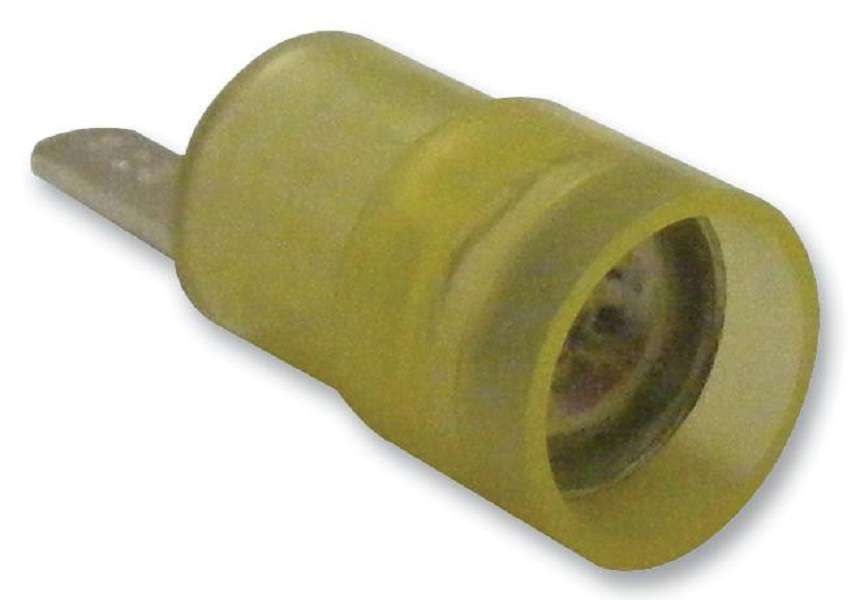

Multicomp Pro (DBNYD5-18) Blade Terminal, DBNYD, 12AWG to 10AWG, 6 mm²

Multicomp Pro (DBNYD5-18) Blade Terminal, DBNYD, 12AWG to 10AWG, 6 mm²

New 240 available
R1,709.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1687742
Bob Shop ID
645122000
Blade Terminal, DBNYD, 12AWG to 10AWG, 6 mm², Yellow, Nylon (Polyamide), 4.5mm x1mmProduct OverviewThe DBNYD5-18 from Multicomp Pro is a blade crimp terminal with yellow colournylon insulation. This blade crimp terminal tab size is 4.5mm x 18mm (W x L)with thickness of 1mm.Wire size range from 12AWG to 10AWG (4mm² to 6mm²)Maximum voltage rating of 600V at 105°CTerminal material is copperDouble crimp with copper sleeve on barrelTin plated terminal surfaceOverall length of 31mmMaximum electric current of 50AContentsPack of 100 blade crimp terminals.Product InformationProduct Range: DBNYDWire Size (AWG): 12AWG to 10AWGWire Size AWG Min: 12AWGWire Size AWG Max: 10AWGConductor Area CSA: 6mm²Insulator Colour: YellowInsulator Material: Nylon (Polyamide)Tab Size - Metric: 4.5mm x 1mmTab Size - Imperial: 0.177" x 0.039"
Add to cart
