Multicomp Pro (DHSB 1) Butt Splice, Red, DHSB, 22 AWG, 16 AWG, 1.5 mm²

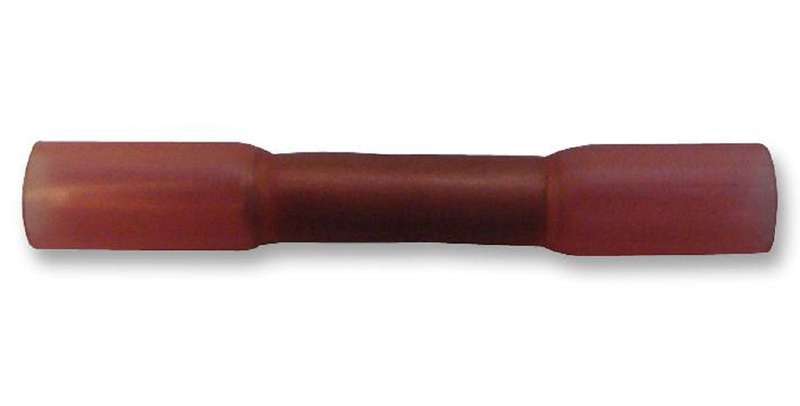

Butt Splice, Red, DHSB, 22 AWG, 16 AWG, 1.5 mm², PE (Polyethylene)Product OverviewThe DHSB 1 is a 15mm red sealed heat shrink Butt Splice with tin plated tubularcopper terminal, high density PE insulation and a clear polyolefin sleeve. Thissplices provides a tough and long lasting environmental seal against immersionin solvents, oils, fluids and salt water. The wire insulation should be strippedto 8mm and then crimped into the ends of the butt splice. Hot air should then beapplied to the sleeve until the tubing has shrunk to the cable size and theadhesive flows from the end of the splice, giving a fully sealed joint andadditional strain relief. The DHSB series butt splice terminal accepts 22 to18AWG wire gauge.600V at 105°C Maximum electrical rating19A Rated current-40 to +105°C Temperature rangeApplicationsIndustrial, Communications & NetworkingProduct InformationInsulator Colour: RedProduct Range: DHSBWire Size AWG Min: 22AWGWire Size AWG Max: 16AWGConductor Area CSA: 1.5mm²Insulator Material: PE (Polyethylene)
