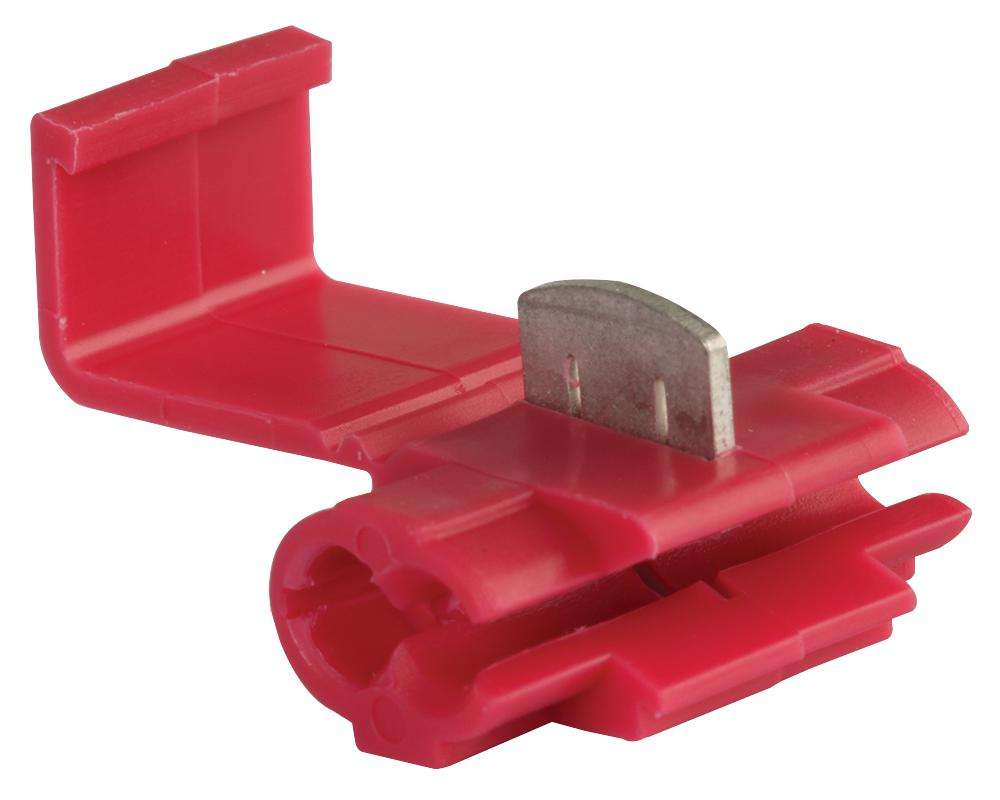

Multicomp Pro (DS1) Wire Splice, DS, Crimp, 22 AWG, 18 AWG

Wire Splice, DS, Crimp, 22 AWG, 18 AWG, 0.75 mm², Wire Tap SpliceProduct OverviewThe DS series Tap Splice is placed over the existing wire, the additional wireinserted and the block crimped with pliers. The tap splice is crimped over thewire as above. A 6.3mm push-on blade can then be inserted into the female bladesocket. It is suitable for splicing or as a break-in test lead.Simple to use - apply with pliersExcellent electrical connection with out cutting tap or run wires600V Voltage rating105°C Temperature ratingApplicationsIndustrialProduct InformationProduct Range: DSTermination: CrimpWire Size AWG Min: 22AWGWire Size AWG Max: 18AWGConductor Area CSA: 0.75mm²Terminal Type: Wire Tap SpliceInsulator Colour: Red
