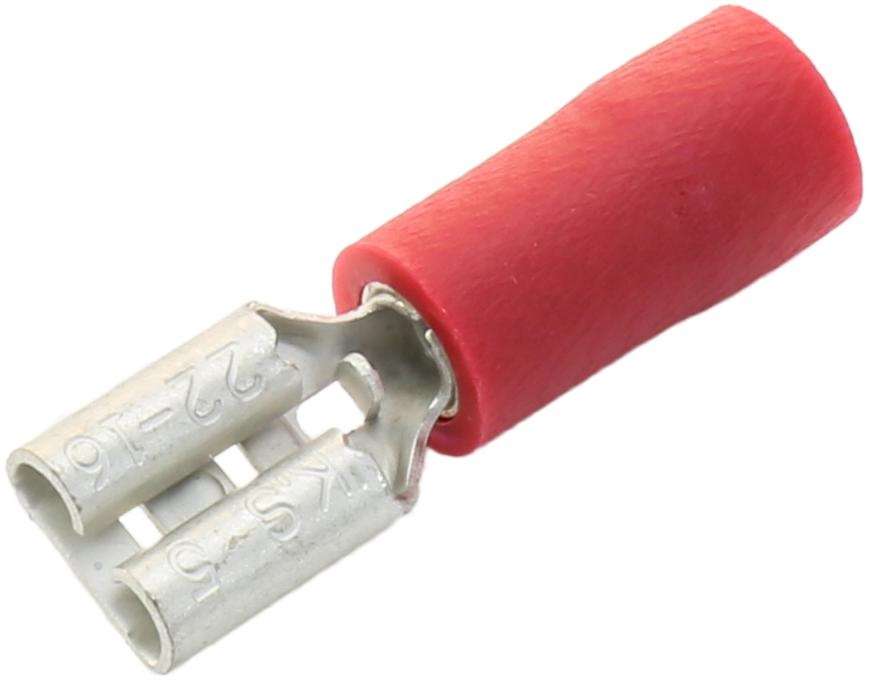

Multicomp Pro (FDD1-110(5)) Quick Disconnect Terminal 0.11" x 0.02", 22 AWG

Quick Disconnect Terminal, FDD1, Female Quick Disconnect, 2.8mm x 0.51mm, 0.11"x 0.02", 22 AWGProduct OverviewThe FDD1-110(5) is a red female double Crimp Terminal with copper-sleeve onbarrel, vinyl insulation and brass/copper terminals as per BS6017 (1981)standard. Quick disconnect type, electro tin plated as per BS1872 (1984)standard. Easy cable entry guide which eliminates flared wire strands and brightelectro tinned finish which prevents oxidization. A digit is indented above thecrimp to verify correct usage. This FDD series terminal accepts 22 to 16AWG wiregauge.Full compliance to BS4579, IEC352-2 and ISO1996 standards10A Rated current600V at 105°C Maximum electrical rating-20 to +85°C Temperature rangeApplicationsIndustrial, Communications & NetworkingProduct InformationProduct Range: FDD1Terminal Type: Female Quick DisconnectTab Size - Metric: 2.8mm x 0.51mmTab Size - Imperial: 0.11" x 0.02"Wire Size AWG Min: 22AWGWire Size AWG Max: 16AWGInsulator Colour: RedConductor Area CSA: 1.5mm²Insulator Material: VinylTerminal Material: Brass
