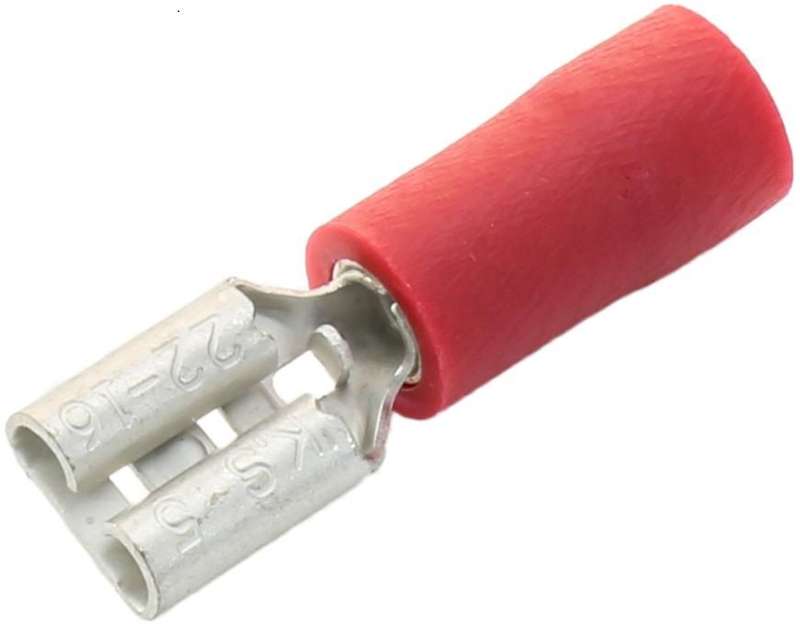

Multicomp Pro (FDD1-187(8)) FDD1, Female Quick Disconnect, 4.75mm x 0.81mm

Quick Disconnect Terminal, FDD1, Female Quick Disconnect, 4.75mm x 0.81mm,0.187" x 0.032"Product OverviewThe FDD1-187(8) is a red female push-on double Crimp Terminal with vinylinsulation and brass/copper terminals as per BS6017 (1981) standard. Quickdisconnect type, electro tin plated as per BS1872 (1984) standard. Easy cableentry guide which eliminates flared wire strands and bright electro tinnedfinish which prevents oxidization. A digit is indented above the crimp to verifycorrect usage. This FDD series terminal accepts 22 to 16AWG wire gauge.Full compliance to BS4579, IEC352-2 and ISO1996 standards10A Rated current600V at 105°C Maximum electrical rating-20 to +85°C Temperature rangeApplicationsIndustrial, Communications & NetworkingProduct InformationProduct Range: FDD1Terminal Type: Female Quick DisconnectTab Size - Metric: 4.75mm x 0.81mmTab Size - Imperial: 0.187" x 0.032"Wire Size AWG Min: 22AWGWire Size AWG Max: 16AWGInsulator Colour: RedConductor Area CSA: 1.5mm²Insulator Material: VinylTerminal Material: Brass
