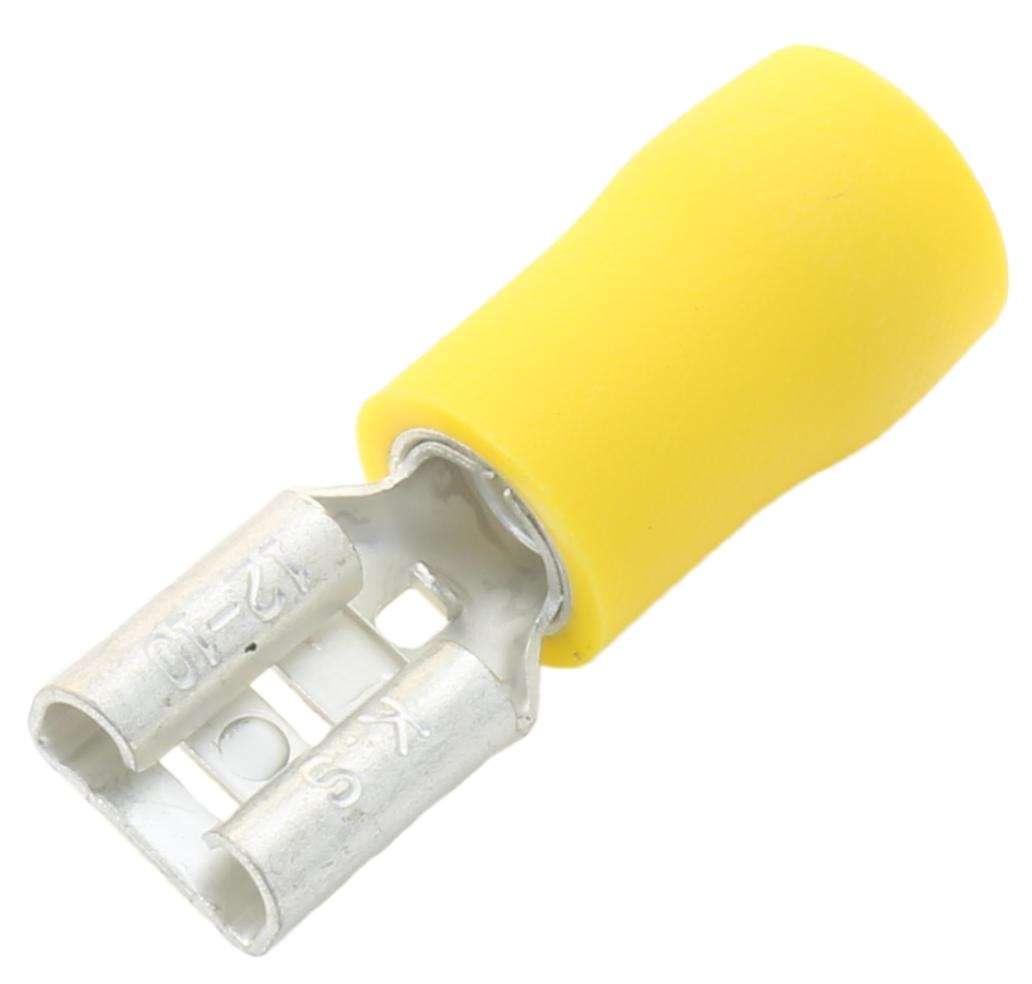

Multicomp Pro (FDD5-250) Quick Disconnect Terminal, 0.25" x 0.032", 12 AWG

Quick Disconnect Terminal, FDD5, Female Quick Disconnect, 6.35mm x 0.81mm, 0.25"x 0.032", 12 AWGProduct OverviewThe FDD5-250 is a yellow female push-on double Crimp Terminal with vinylinsulation and brass/copper terminals as per BS6017 (1981) standard. Quickdisconnect type, electro tin plated as per BS1872 (1984) standard. Easy cableentry guide which eliminate flared wire strands and bright electro tinned finishwhich prevents oxidization. A digit is indented above the crimp to verifycorrect usage. This FDD series terminal accepts 12 to 10AWG wire gauge.Full compliance to BS4579, IEC352-2 and ISO1996 standards10A Rated current600V at 105°C Maximum electrical rating-20 to +85°C Temperature rangeApplicationsIndustrial, Communications & NetworkingProduct InformationProduct Range: FDD5Terminal Type: Female Quick DisconnectTab Size - Metric: 6.35mm x 0.81mmTab Size - Imperial: 0.25" x 0.032"Wire Size AWG Min: 12AWGWire Size AWG Max: 10AWGInsulator Colour: YellowConductor Area CSA: 6mm²Insulator Material: VinylTerminal Material: Brass
