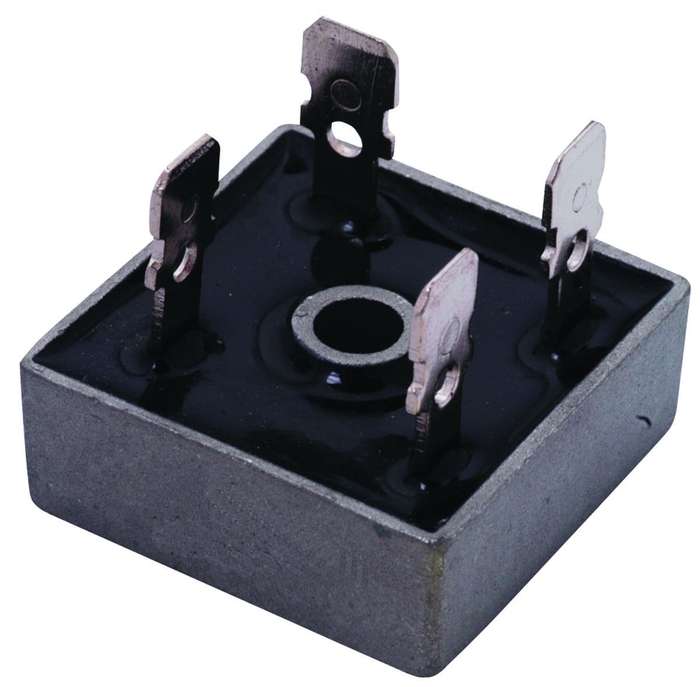

Multicomp Pro (KBPC3501) Bridge Rectifier, Single Phase, 100 V, 35 A

Bridge Rectifier, Single Phase, 100 V, 35 A, Module, 4 Pins, 1.1 VProduct OverviewThe KBPC3501 from Multicomp Pro is a glass passivated bridge rectifier withsolderable 0.25" FAST ON terminals. The rectifier bridge consists of foursilicon junctions connected as a full bridge. It has electrically isolated base-2000volts for maximum heat dissipation.Maximum recurrent peak reverse voltage Vrrm is 100VMaximum RMS bridge input voltage Vrms is 70VMaximum average forward rectified output current I(AV) at Tc = 55°C is 35APeak forward surge current 8.3ms single half sine wave super imposed on ratedload Ifsm is 400AOperating temperature range from -55°C to +150°CMaximum reverse current at rate DC blocking voltage per element at Tj = 25°C is10ALow forward voltage dropMaterials used carries U/L recognitionProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 100VAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.1VNo. of Pins: 4PinsBridge Rectifier Mounting: Panel MountOperating Temperature Max: 150°CProduct Range: KBPC
