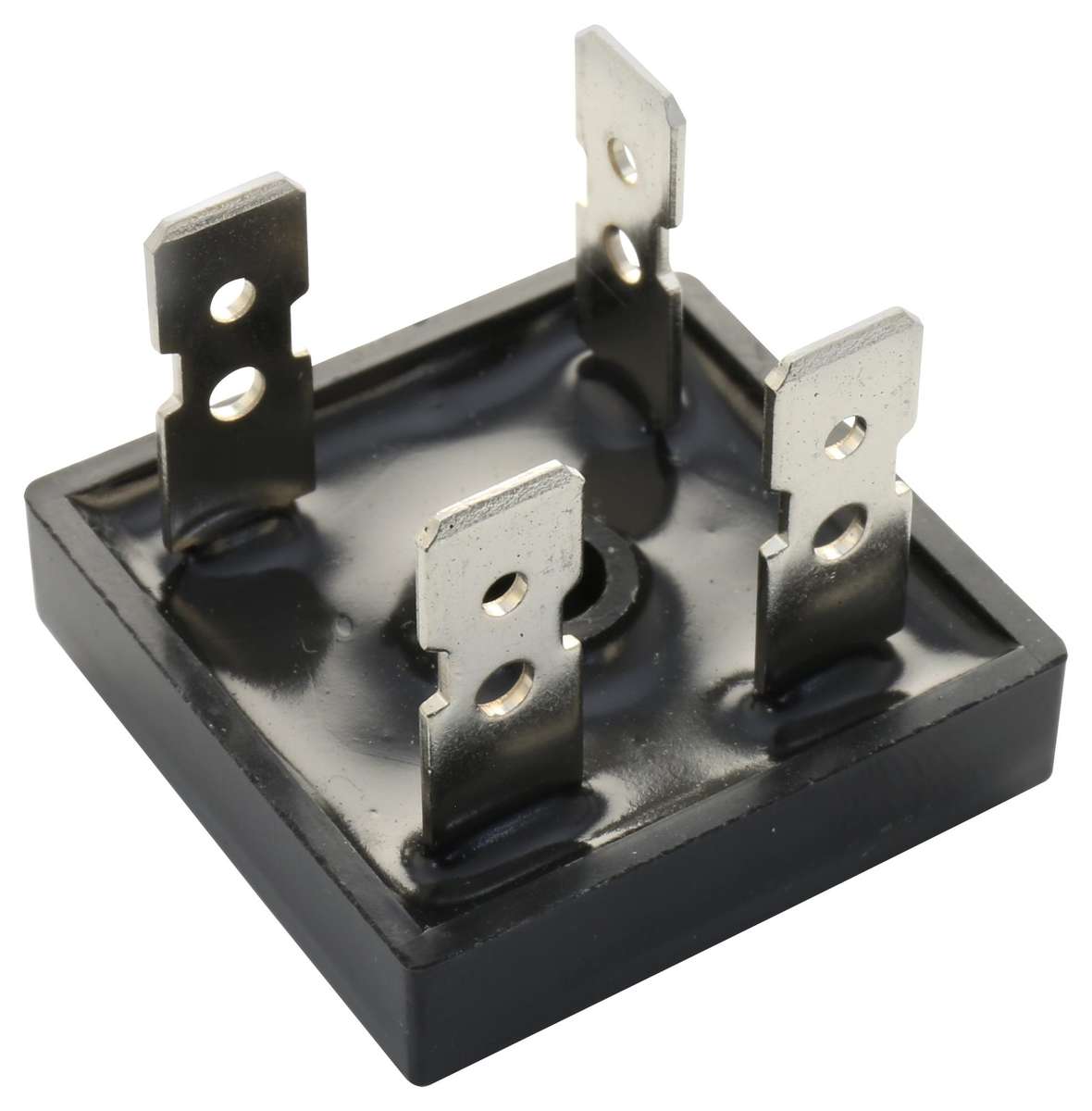

Multicomp Pro (KBPC3510) Bridge Rectifier, Single Phase, 1 kV, 35 A

Multicomp Pro (KBPC3510) Bridge Rectifier, Single Phase, 1 kV, 35 A

New 2068 available
R559.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2675368
Bob Shop ID
680901810
Bridge Rectifier, Single Phase, 1 kV, 35 A, Module, 4 Pins, 1.1 VProduct OverviewThe KBPC3510 from Multicomp Pro is a glass passivated bridge rectifier withsolderable 0.25" FAST ON terminals. The rectifier bridge consists of foursilicon junctions connected as a full bridge. It has electrically isolated base-2000volts for maximum heat dissipation.Maximum recurrent peak reverse voltage Vrrm is 1000VMaximum RMS bridge input voltage Vrms is 700VMaximum average forward rectified output current I(AV) at Tc = 55°C is 35APeak forward surge current 8.3ms single half sine wave super imposed on ratedload Ifsm is 400AOperating temperature range from -55°C to +150°CMaximum reverse current at rate DC blocking voltage per element at Tj = 25°C is10ALow forward voltage dropMaterials used carries U/L recognitionProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 1kVAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.1VNo. of Pins: 4PinsBridge Rectifier Mounting: Panel MountOperating Temperature Max: 150°CProduct Range: KBPC
