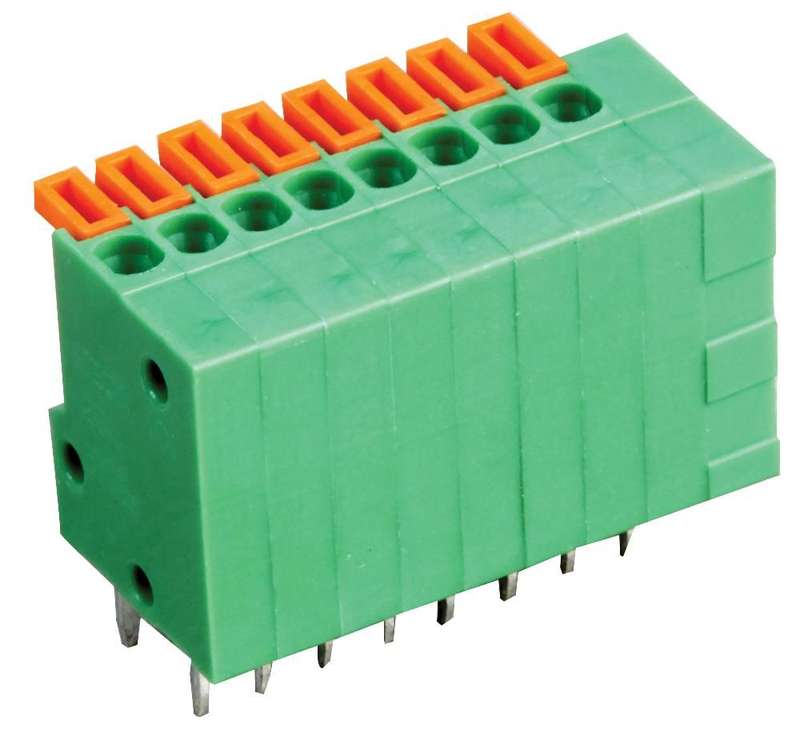

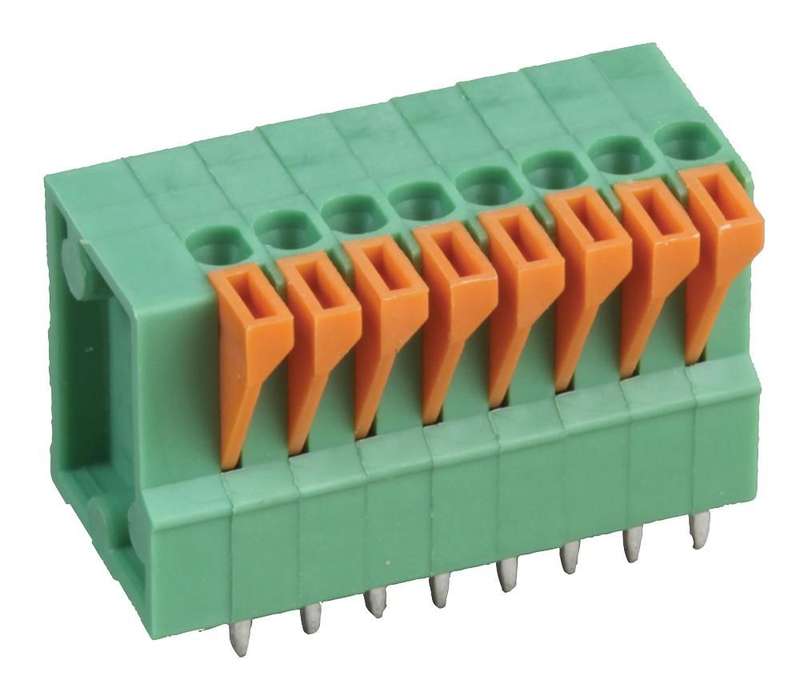

Multicomp Pro (MC000006) Wire-To-Board Terminal Block, 2.54 mm, 8 Ways

Wire-To-Board Terminal Block, 2.54 mm, 8 Ways, 26 AWG, 20 AWG, Push InProduct OverviewThe MC000006 is a 8-way 6A wire-to-board Terminal Block with tin-plated brassterminal, green polyamide 66 insulating body, cover, orange polyamide 66 leverand stainless strip steel spring. It has push-in wire connection andthrough-hole right-angle block orientation.2000MR at 500VDC Insulation resistance (Maximum)-40 to 105°C Operating temperature rangeApplicationsIndustrialProduct InformationPitch Spacing: 2.54mmNo. of Positions: 8WaysWire Size AWG Min: 26AWGWire Size AWG Max: 20AWGConductor Area CSA: -Wire Connection Method: Push InRated Current: 6ARated Voltage: 150VBlock Orientation: Through Hole Right AngleProduct Range: MX
