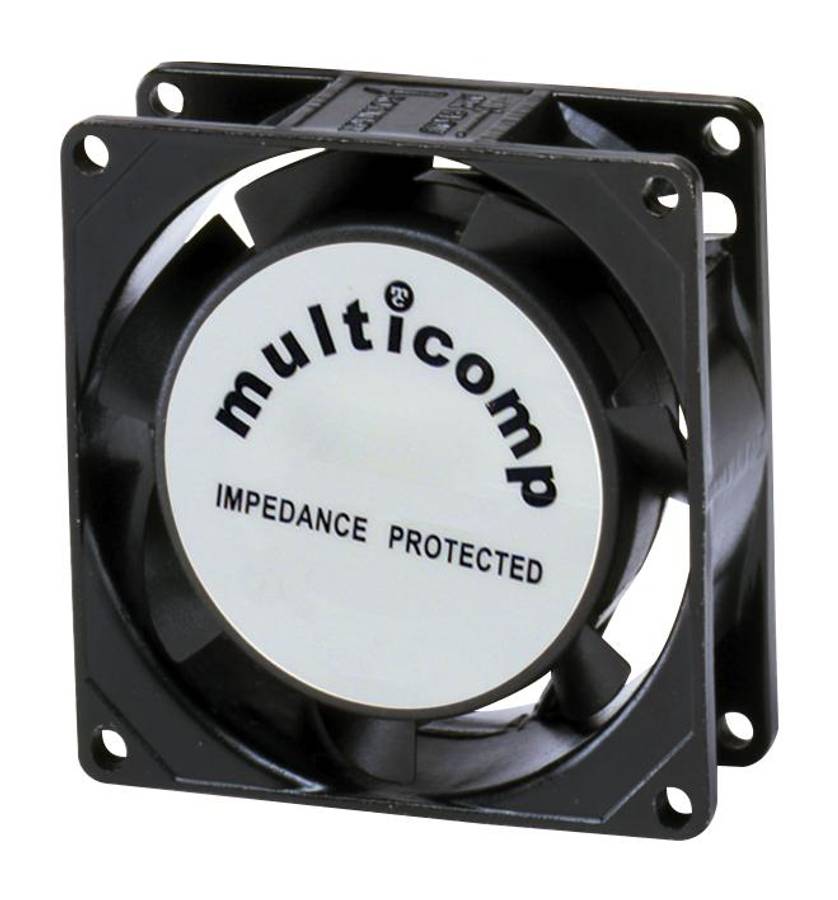

Multicomp Pro (MC19672) AC Axial Fan, 220V to 240V, Square, 91.5 mm

Product Information:Nominal Rated Voltage AC: 220V to 240VSupply Voltage V AC: 240VVoltage Type: ACFan Frame Type: SquareSupply Voltage: 240VACFan Frame Size: 91.5mmExternal Depth: 25.5mmBearing Type: Sleeve BearingNoise Rating: 39dBAAir Flow - CFM: 36CFMFlow Rate - Imperial: 36CFMFlow Rate - Metric: 1.02m³/minPower Connection Type: TerminalsRated Speed: 2250rpmCurrent Rating: 70mAProduct Range: -IP Rating: -Air Flow - m3/min: 1.02m³/minPower Rating: 14.5WProduct Overview:The MC19672 is a 240VAC Axial Fan with a lubricated sleeve bearing andthermoplastic PBT (UL94V-0) impeller. This square tube axial AC fan comes withan impedance protected reliable shaded-pole motor and die-cast aluminum frame.The noise level is measured in a semi-anechoic chamber with background noiselevel below 15dB(A). The fan is running in free air with microphone at adistance of one meter from the fan intake. The air performance is measured by adouble chamber. The values are recorded when the fan speed has stabilized atrated voltage. The direction of rotation is counter clock wise direction viewedfrom front of fan blade.500MR at 500VDC Minimum insulation resistance1500VAC for one second Dielectric strength-10 to 70°C Operating temperature range
