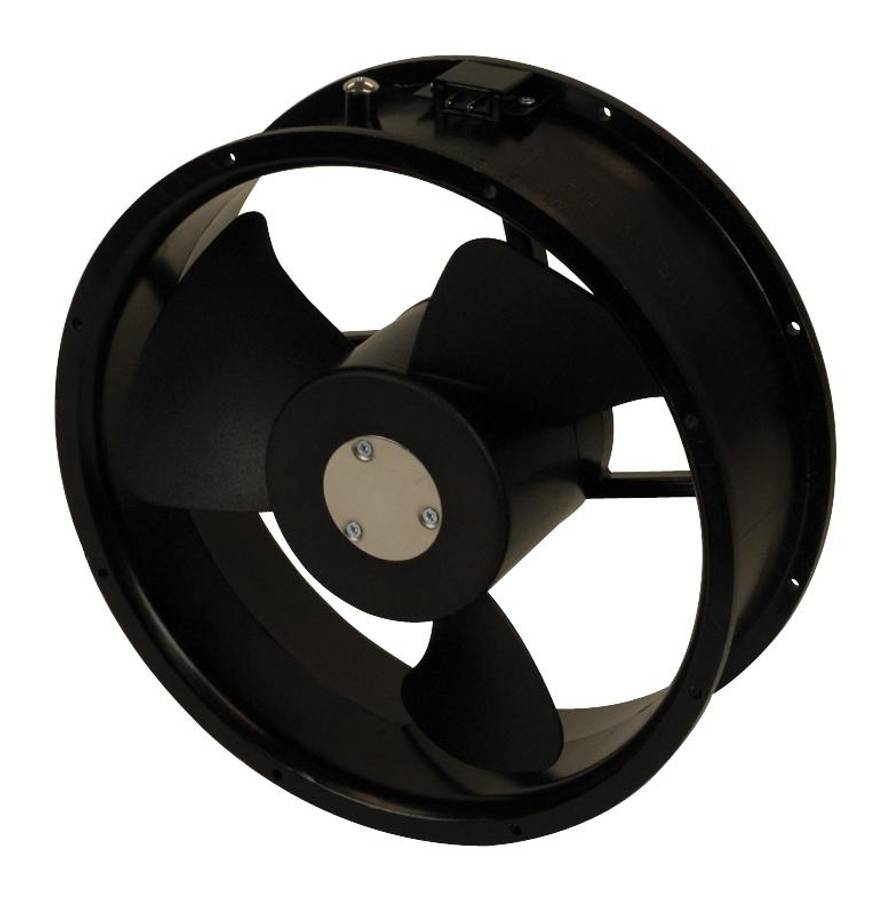

Multicomp Pro (MC21679) AC Axial Fan, 220V to 240V, Circular, 254 mm

Product Information:Nominal Rated Voltage AC: 220V to 240VSupply Voltage V AC: 240VVoltage Type: ACFan Frame Type: CircularSupply Voltage: 240VACFan Frame Size: 254mmExternal Depth: 89mmBearing Type: Precision Ball BearingNoise Rating: 52dBAAir Flow - CFM: 665CFMFlow Rate - Imperial: 665CFMFlow Rate - Metric: 18.84m³/minPower Connection Type: TerminalsRated Speed: 1400rpmCurrent Rating: 150mAProduct Range: -IP Rating: -Air Flow - m3/min: 18.84m³/minPower Rating: 30WProduct Overview:The MC21679 is a 150VAC Axial Fan with a precision bearing and aluminum die-castframe. This round tube axial AC fan comes with thermal protected reliablealveolate motor. The noise level is measured in a semi-anechoic chamber withbackground noise level below 15dB(A). The fan is running in free air withmicrophone at a distance of one meter from the fan intake. The air performanceis measured by a double chamber. The values are recorded when the fan speed hasstabilized at rated voltage. The direction of rotation is counter clock wisedirection viewed from front of fan blade.500MR Minimum at 500VDC insulation resistance18VAC for one second Dielectric strength±15% on Rated power and current tolerance-10 to 70°C Operating temperature range
