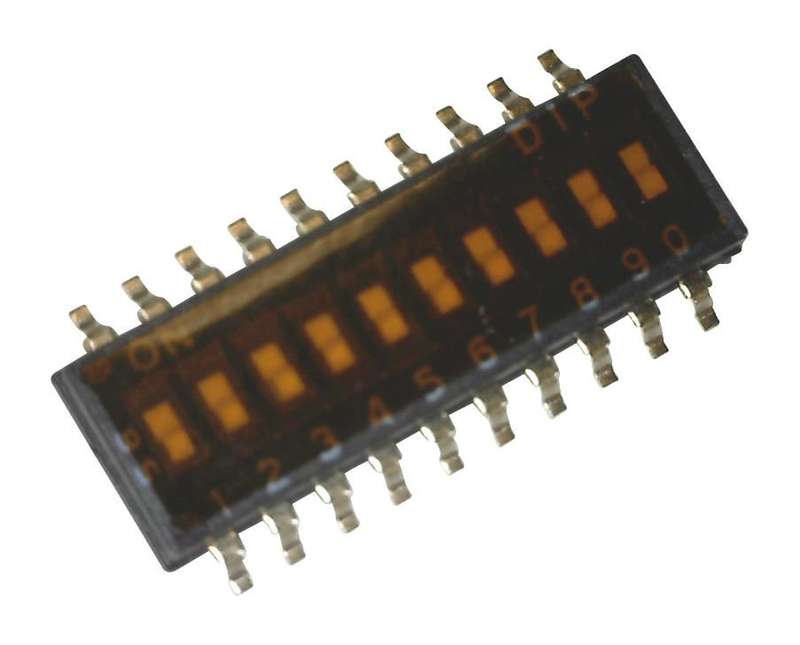

Multicomp Pro (MCDHN-10F-T-V) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 10 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 10CircuitsSwitch Actuator Style: SlideSwitch Mounting: Surface MountContact Configuration: SPSTContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: MCDHNSwitch Type: DIP SealedProduct OverviewThe MCDHN-10F-T-V from Multicomp Pro is a half pitch, top tape sealed 10-way DIPswitch. This switch has black high temperature thermoplastic nylon base/coverand white high temperature thermoplastic LCP actuator.Switching capacity is 25mA at 24VDCSPST contact configurationOperating force is 500gfOperating temperature range from -40°C to +85°CMaximum contact resistance is 100mohm at initialMinimum insulation resistance is 100Mohm at 500VDC1,000 cycles mechanical life and 1,000 cycles electrical lifeGold plated copper alloy contacts and gold plated brass terminalsApplicationsIndustrial, Power Management, Automation & Process Control
