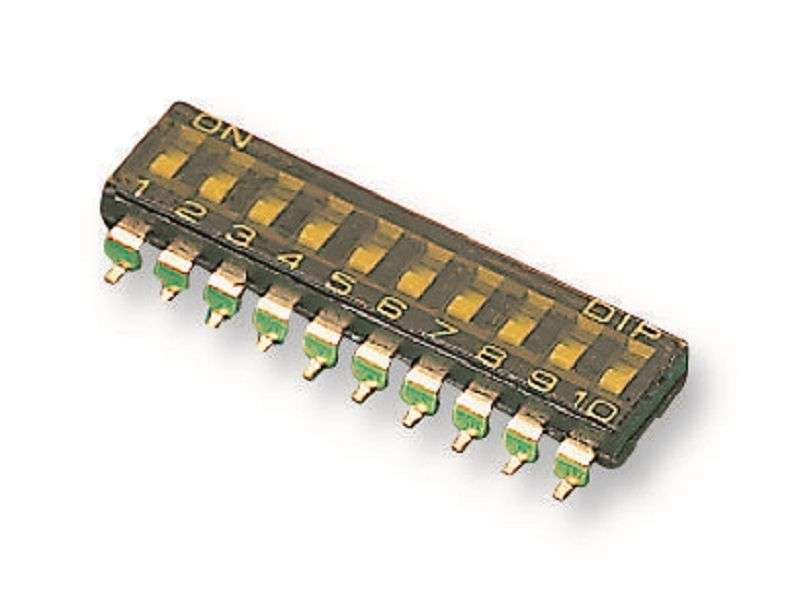

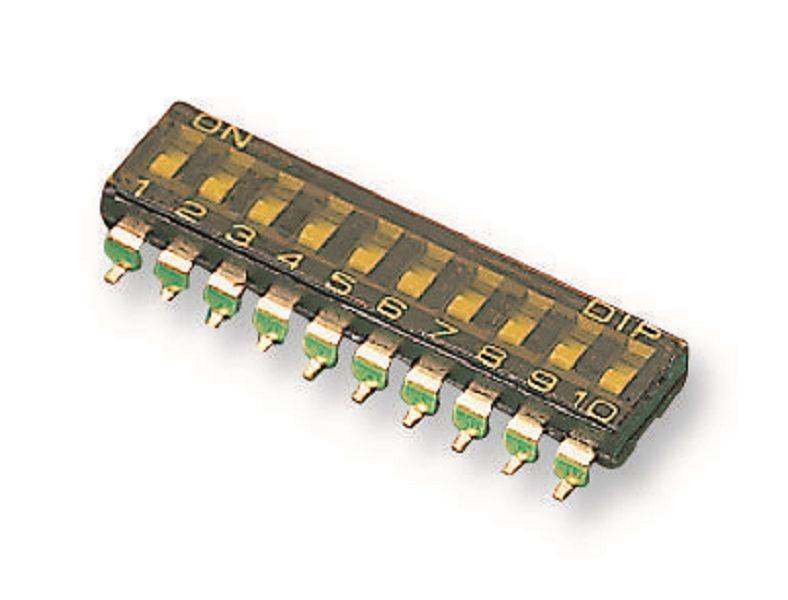

Multicomp Pro (MCDM(R)-10-T) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 10 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 10CircuitsSwitch Actuator Style: SlideSwitch Mounting: Surface MountContact Configuration: SPSTContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: DMSwitch Type: DIP SealedProduct OverviewThe MCDM(R)-10-T is a single-pole single-throw (SPST) 10-way low profile DILSwitch with white nylon thermoplastic recessed actuator, surface-mounting DIPswitch insertable. The DM series switch has gold plated over nickel contact,gold terminal and black high temperature base/cover. Splay terminals allow forautomatic insertion by IC insertion machine. Insert moulding of terminals andultrasonic welding improve flux proofness and enable flux washing in whole bytop tape sealing. Double contacts offers high reliability. Terminal plating bygold give excellent results when soldering.Vapour phase solderable, IR-reflow solderable100MR at 500V Insulation resistance500VAC for one minute Dielectric strength
