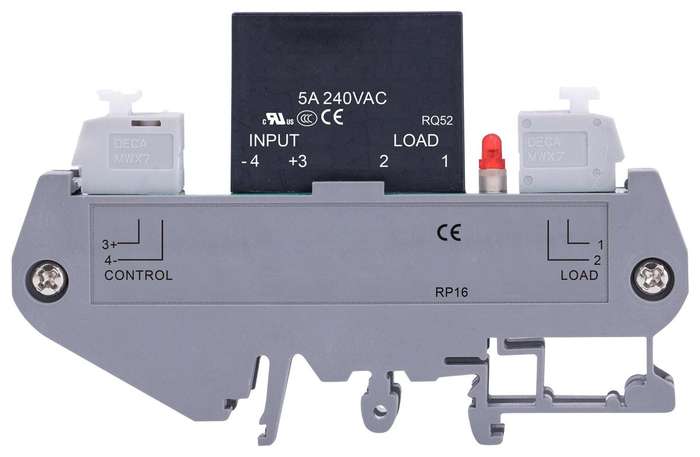

Multicomp Pro (MCDRA-1/KSD240D5-H(037)) Solid State Relay, 5 A, 280 VAC
New
10 were available
R995.00
0% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:
DescriptionThe product is single channel din-rail mounted module with 5A. Control voltageis 15-32V DC and isolation voltage is 4000V ACrms with high EMC capability,high inrush current, special for automatic machinery, control system, elevator,entertainment equipment.Technical SpecificationInput CircuitControl Voltage Range : 15V DC to 32V DCMin. Turn-On Voltage : 15V DCMin. Turn-Off Voltage : 1V DCMax. Input Current : 25mAOutput CircuitLoad Voltage Range : 48V AC to 280V ACTransient Overvoltage : 600VpkLoad Current Range : 0.1A to 5AMax. Turn-On Time : 1/2AC Cycle + 1msMax. Surge Current (@10 ms) : 60AMax. Off-State Leakage Current [@ Rated Voltage] : 5mAMax. On-State Voltage Drop [@ Rated Current] : 1.5VrmsMin. Off-State dv/dt [ @ Max. Rated Voltage] : 200V/?sGeneral InformationDielectric Strength Input/Output : ^4000VrmsAmbient Operating Temperature Range : -30°C to +80°CAmbient Storage Temperature Range : -30°C to +100°CWeight (Typical) : 55gApplicationSuitable for Automatic Equipment, Control System, Entertainment Equipment.Features- Load Current: 0.1A to 5A- Din Rail Mounted- DC Control- LED Indication- High EMC Capability- High Inrush Current
