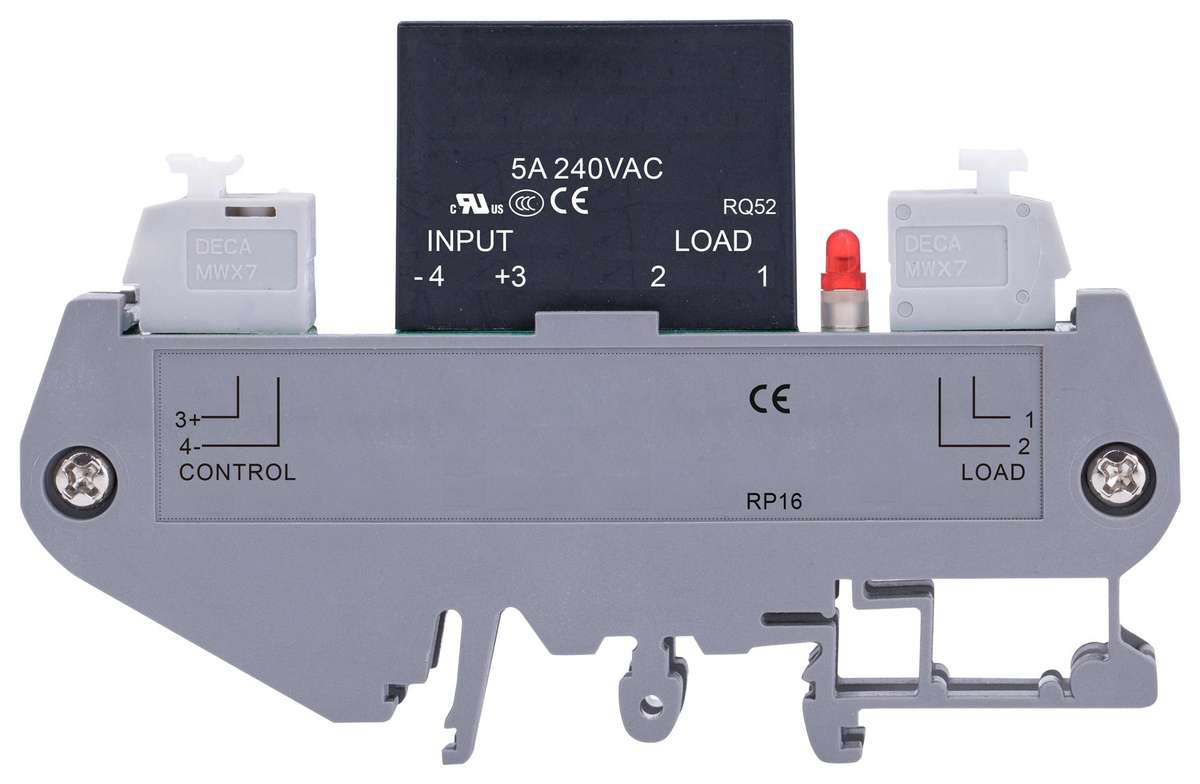

DescriptionThe product is single channel din-rail mounted module with 5A. Control voltageis 15-32V DC and isolation voltage is 4000V ACrms with high EMC capability,high inrush current, special for automatic machinery, control system, elevator,entertainment equipment.Technical SpecificationInput CircuitControl Voltage Range : 15V DC to 32V DCMin. Turn-On Voltage : 15V DCMin. Turn-Off Voltage : 1V DCMax. Input Current : 25mAOutput CircuitLoad Voltage Range : 48V AC to 280V ACTransient Overvoltage : 600VpkLoad Current Range : 0.1A to 5AMax. Turn-On Time : 1/2AC Cycle + 1msMax. Surge Current (@10 ms) : 60AMax. Off-State Leakage Current [@ Rated Voltage] : 5mAMax. On-State Voltage Drop [@ Rated Current] : 1.5VrmsMin. Off-State dv/dt [ @ Max. Rated Voltage] : 200V/?sGeneral InformationDielectric Strength Input/Output : ^4000VrmsAmbient Operating Temperature Range : -30°C to +80°CAmbient Storage Temperature Range : -30°C to +100°CWeight (Typical) : 55gApplicationSuitable for Automatic Equipment, Control System, Entertainment Equipment.Features- Load Current: 0.1A to 5A- Din Rail Mounted- DC Control- LED Indication- High EMC Capability- High Inrush Current
