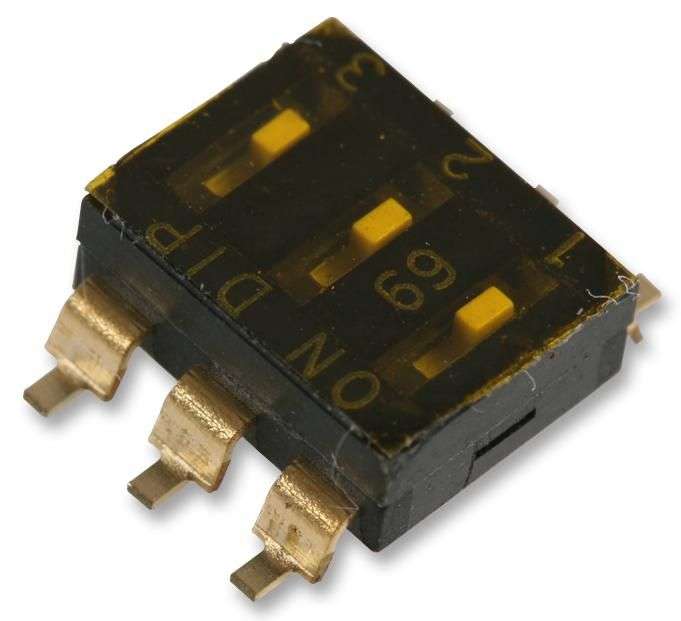

Multicomp Pro (MCEMR-03-T) DIP / SIP Switch, SPST, 24 VDC, 25 mA

DIP / SIP Switch, 3 Circuits, Slide, Surface Mount, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 3CircuitsSwitch Actuator Style: SlideSwitch Mounting: Surface MountContact Configuration: SPSTContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: MCEMRSwitch Type: DIP SealedProduct OverviewThe MCEMR-03-T from Multicomp Pro is a 3 way end stackable DIP switch withrecessed actuator. It has UL94V-0 rated black high temperature thermoplasticnylon base/cover and UL94V-0 rated white high temperature thermoplastic LCPactuator.Switching capacity is 25mA at 24VDCSPST contact configurationMaximum operating force is 1000gf2,000 cycles mechanical life and 2,000 cycles electrical lifeMinimum contact resistance is 100mohm at 500VDCMaximum insulation resistance is 100Mohm at 500VDCOperating temperature range from -20°C to +85°CGold plated copper alloy contact and gold plated brass terminalTop tape sealedApplicationsIndustrial, Power Management, Automation & Process Control
