R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 7 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

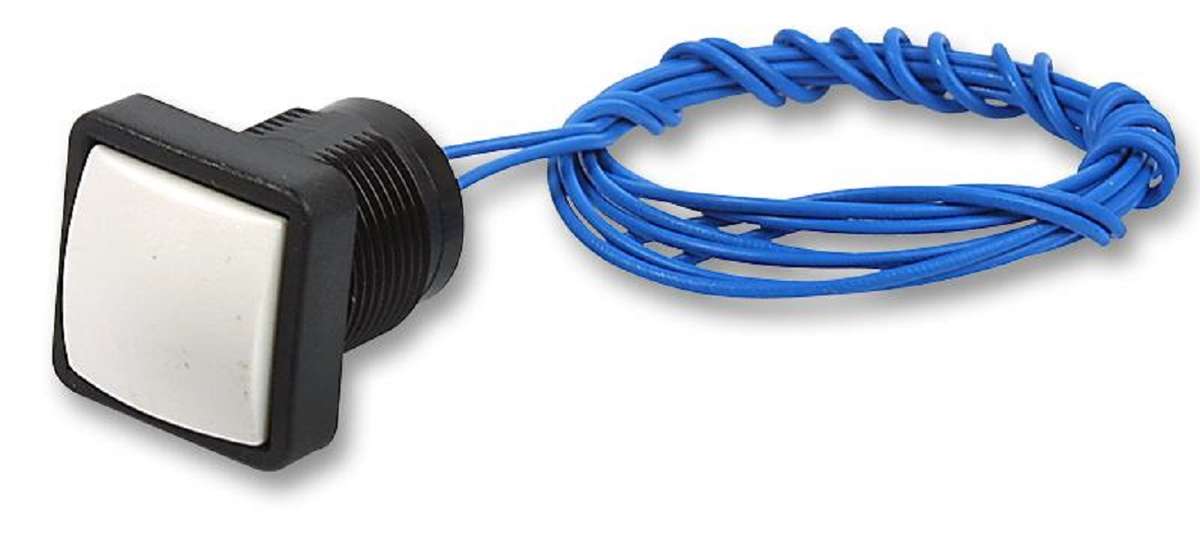

Industrial Pushbutton Switch, 13.6 mm, SPST, Off-(On), Square, WhiteProduct InformationPushbutton Switch Type: IndustrialSwitch Operation: Off-(On)Contact Configuration: SPSTContact Voltage AC Nom: 48VPanel Cutout Diameter: 13.6mmContact Voltage DC Nom: 50VPushbutton Actuator Style: SquareContact Current Max: 500mAActuator / Cap Colour: WhiteProduct Range: -Contact Current AC Max: 400mAContact Voltage VAC: 32VContact Current DC Max: 100mAContact Voltage VDC: 50VIP Rating: IP67Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe MCPAS6-D1-M1CES1-5 is a single-pole double-throw (SPDT) Pushbutton Switchwith solder lug termination, OFF-Momentary function and square threaded bushing(die-casting). The PA series switch has gold over silver contact and white cap.Epoxy seal (standard)50mR Maximum initial contact resistance1GR at 500V Minimum insulation resistance
