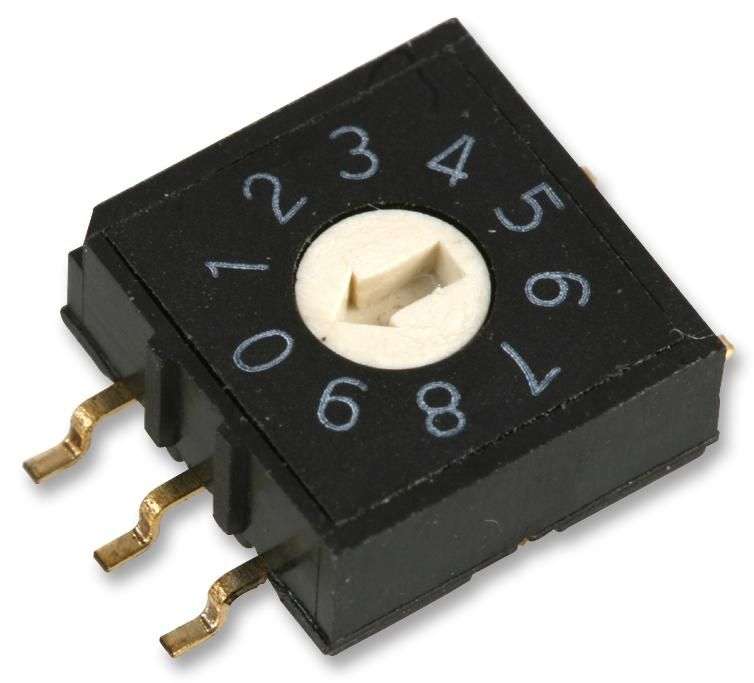

Multicomp Pro (MCRM2AF-10R) Rotary Switch, 10 Position, 2 Pole, 36 °

Rotary Switch, 10 Position, 2 Pole, 36 °, 250 V, MCRMProduct InformationNo. of Switch Positions: 10 PositionNo. of Poles: 2 PoleAngle of Throw: 36°Contact Current AC Max: -Contact Voltage AC Max: 250VProduct Range: MCRMIllumination: Non IlluminatedContact Current DC Max: 100mAContact Voltage DC Max: 50VProduct OverviewThe MCRM2AF-10R is a 10-step dual in line SMD Rotary Switch with through-holeterminal and white UL94V-0 LCP thermoplastic recessed actuator. The switch hasblack UL 94V-0 nylon thermoplastic base/cover, gold plated over nickel soldercopper alloy plating and gold plated brass terminal.3 x 2 Terminal200gf.cm Maximum operating forceApplicationsIndustrial
