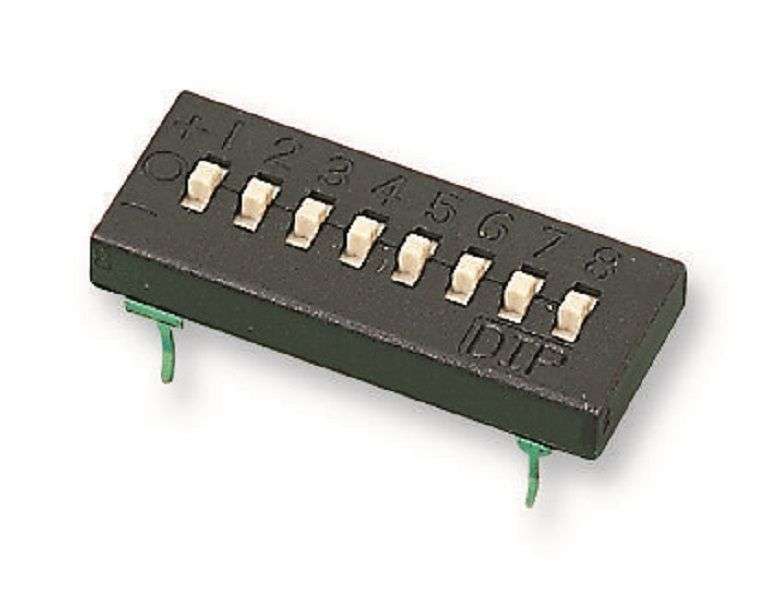

Multicomp Pro (MCTDS-08) DIP / SIP Switch, SPST, 24 VDC, 25 mA

Multicomp Pro (MCTDS-08) DIP / SIP Switch, SPST, 24 VDC, 25 mA

New 218 available
R155.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
9472070
Bob Shop ID
645126287
DIP / SIP Switch, 8 Circuits, Slide, Through Hole, SPST, 24 VDC, 25 mAProduct InformationNo. of Circuits: 8CircuitsContact Configuration: SPSTSwitch Actuator Style: SlideSwitch Mounting: Through HoleSwitch Type: DIP UnsealedContact Voltage DC Max: 24VDCContact Current DC Max: 25mAProduct Range: TDSProduct OverviewThe MCTDS-08 is a tri-state DIL Switch with SPST contact configuration andthrough-hole switch mounting. It features black PBT high thermoplastic base andcover, white nylon thermoplastic actuator, alloy copper with gold-platedcontact, brass with tin-plated terminal and gold-plating over nickel contact.2000 Operations mechanical life1000gf Maximum operation force-20 to +70°C Operation temperature2000 Cycles electrical life100MR Minimum insulation resistance at 500VDC500VAC Dielectric strength for 1 minute3 Switching positions circuit
Add to cart
