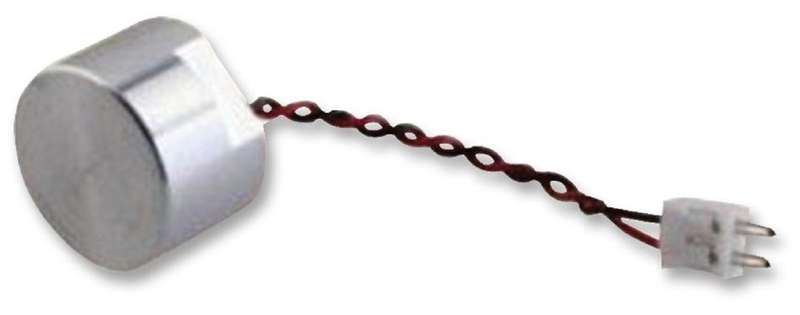

Ultrasonic Sensor, Transceiver, 14 mm Dia, IP67, 40 kHz, -75 dB, Aluminium,Silver, -40 °C to 85 °CProduct OverviewThe MCUSD14A40S09RS-30C is a 40kHz Transceiver, with open structure and dualuse. Compact and light weight. High sensitivity and sound pressure. Less powerconsumption. High reliability. This specification covers the water proof typeultrasonic ceramic transducer which are used for ultrasonic ranging and parkingsensor of automobile.2500pF Capacitance-40 to 85°C Operating temperatureApplicationsAutomation & Process Control, RoboticsProduct InformationSensing Range Min: -Sensing Range Max: -Beam Angle: 100°Switching Frequency: 40kHzExternal Diameter: 14mmSensitivity (dB): -75dBOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -
