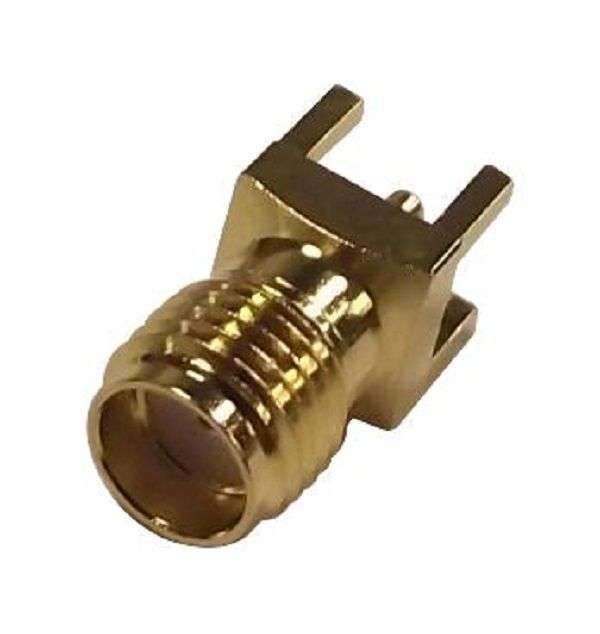

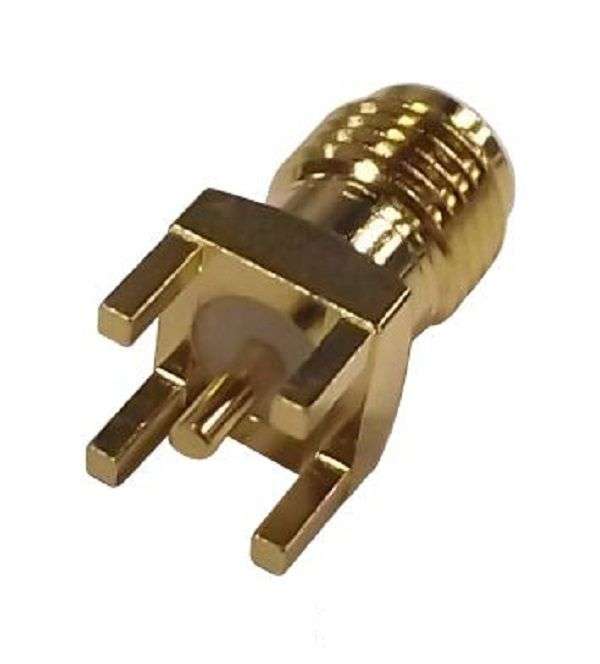

Multicomp Pro (MP-19-46-1-TGG) RF / Coaxial Connector, SMA Coaxial, 50 ohm

RF / Coaxial Connector, SMA Coaxial, Straight Jack, Solder, 50 ohm, BerylliumCopperProduct OverviewThe 19-46-1-TGG from Multicomp Pro is a SMA jack connector for PC boardapplication. SMA connectors are semi-precision, subminiature devices thatprovide repeatable electrical performance from DC to 12.4GHz with flexiblecable. Semi-rigid cabling extends the frequency range of the device to 18GHz.These devices offer broadband performance with low reflection and constant 50ohm impedance. These properties along with minimum attenuation and low VSWR havemade the SMA connectors extremely popular in the microwave community.Solder coaxial termination, PCB mountingImpedance is 50 ohmGold (50?'' minimum) plated beryllium copper contactsGold (3?'' minimum) plated brass bodyPTFE insulationConnector interface in accordance per MIL-STD-348 A standardApplicationsIndustrial, RF Communications, Communications & NetworkingProduct InformationConnector Type: SMA CoaxialConnector Body Style: Straight JackCoaxial Termination: SolderImpedance: 50ohmCoaxial Cable Types: -Contact Material: Beryllium CopperContact Plating: Gold Plated ContactsFrequency Max: 18GHzConnector Mounting: Through Hole MountProduct Range: 19-xxx-x-TGG
