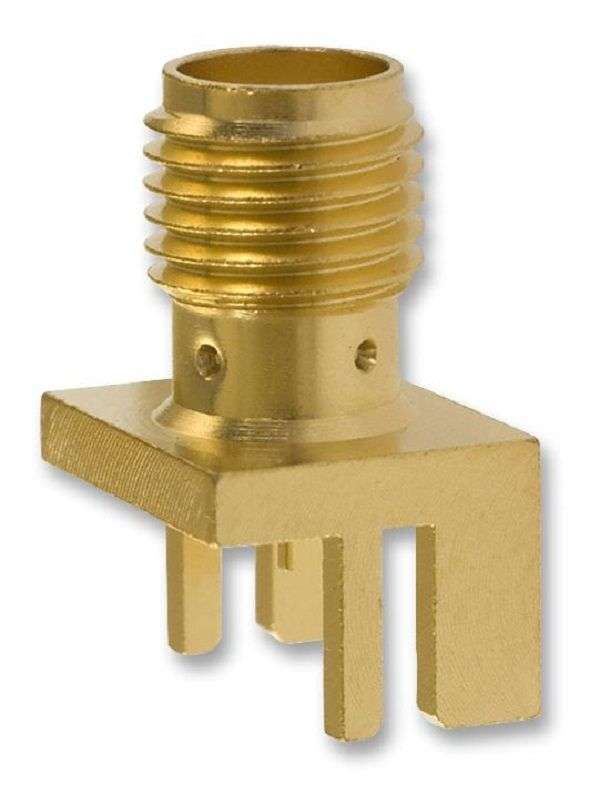

Multicomp Pro (MP-19-70-4-TGG) RF / Coaxial Connector, SMA Coaxial, 50 ohm

RF / Coaxial Connector, SMA Coaxial, Edge Launch Jack, Solder, 50 ohm, BerylliumCopperProduct OverviewThe 19-70-4-TGG from Multicomp Pro is a SMA edge (end) launch jack connector forPC board application. The relative dimension for PC board thickness is 0.068".SMA connectors are semi-precision, subminiature devices that provide repeatableelectrical performance from DC to 12.4GHz with flexible cable. Semi-rigidcabling extends the frequency range of the device to 18GHz. These devices offerbroadband performance with low reflection and constant 50 ohm impedance. Theseproperties along with minimum attenuation and low VSWR have made the SMAconnectors extremely popular in the microwave community.Gold plated centre contact and bodyPolytetrafluoroethylene insulatorConnector interface per MIL-STD-348 A standardsApplicationsIndustrial, RF Communications, Communications & NetworkingProduct InformationConnector Type: SMA CoaxialConnector Body Style: Edge Launch JackCoaxial Termination: SolderImpedance: 50ohmCoaxial Cable Types: -Contact Material: Beryllium CopperContact Plating: Gold Plated ContactsFrequency Max: 18GHzConnector Mounting: PCB MountProduct Range: -
