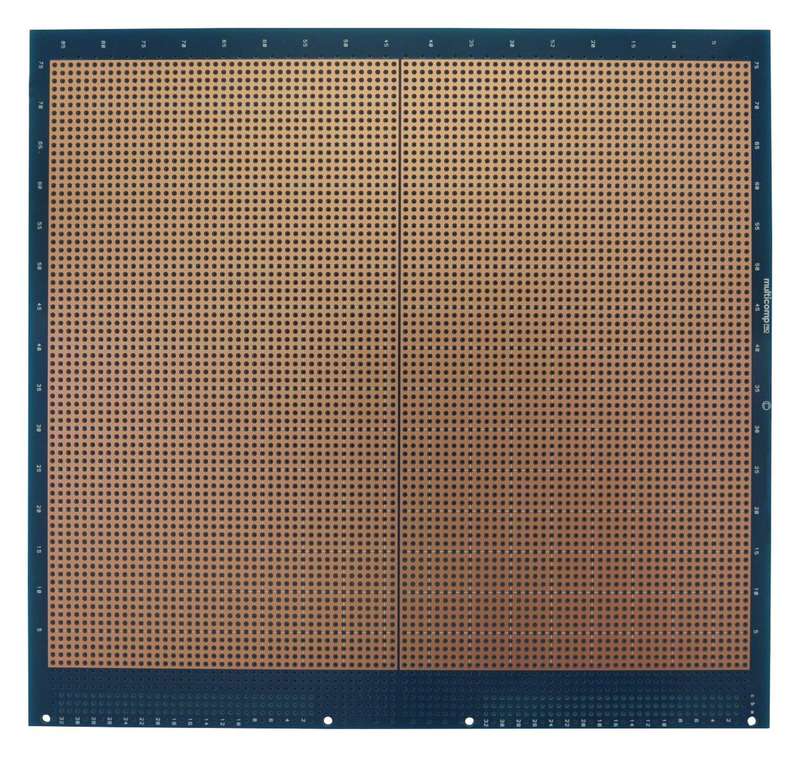

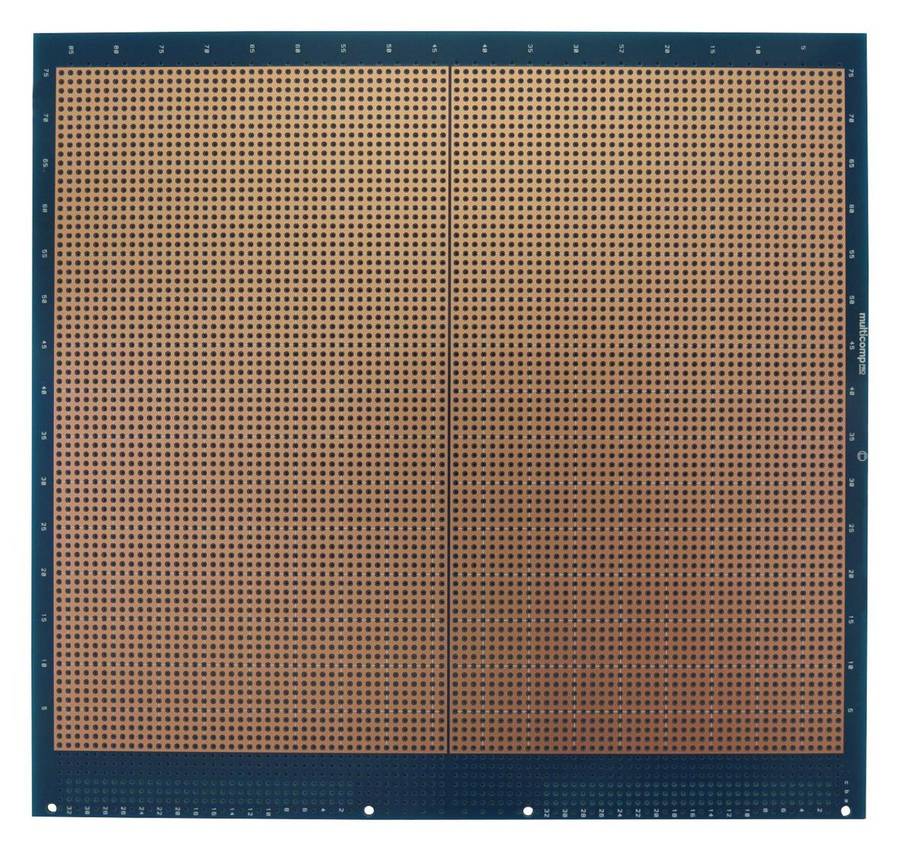

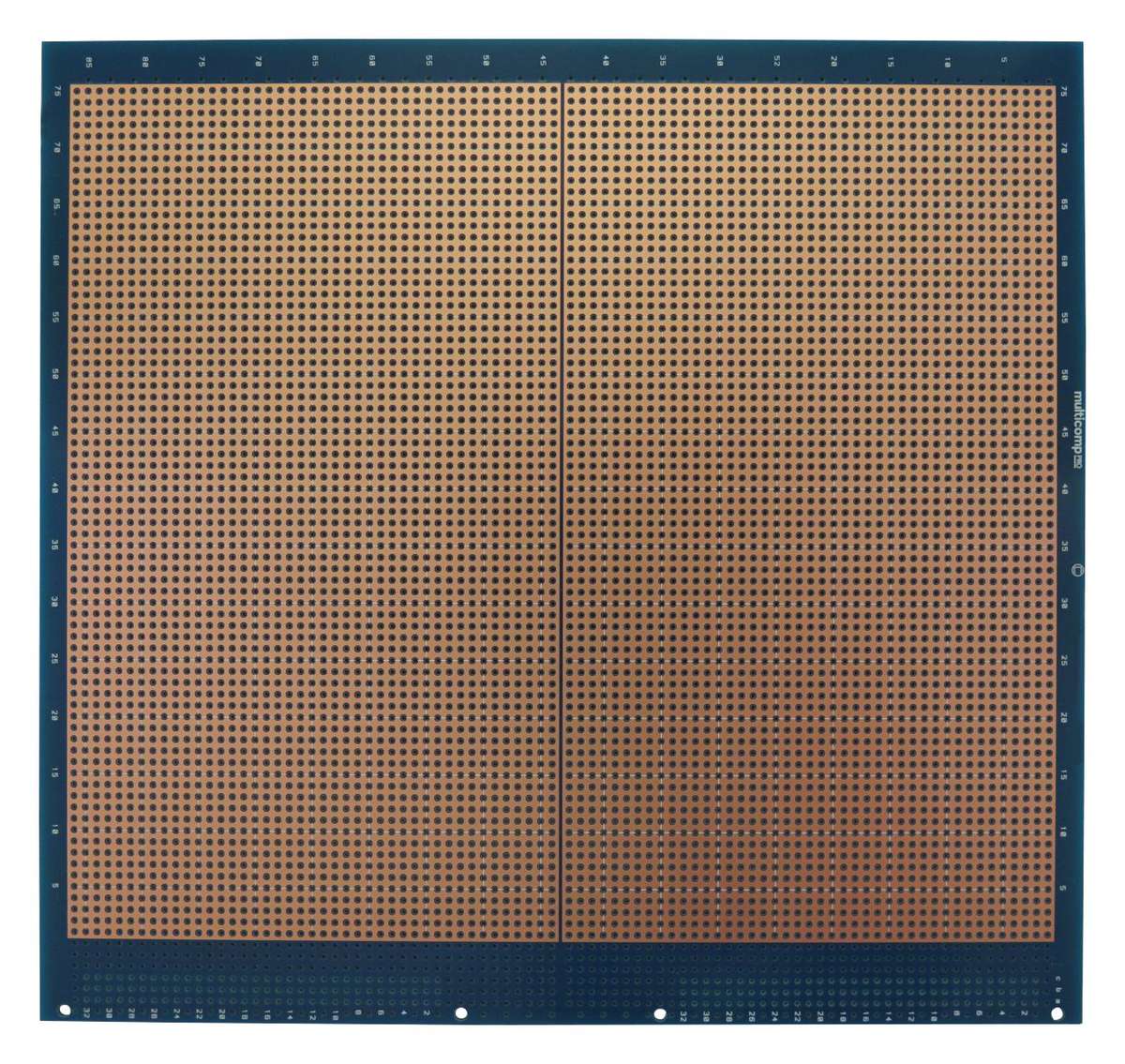

Multicomp Pro (MP005890) Eurocard PCB Board, Epoxy Glass Composite

Product Information:Board Type: EurocardBoard Material: Epoxy Glass CompositeHole Diameter: 1.02mmExternal Height: 220mmExternal Width: 233.4mmBoard Thickness: 1.6mmDescription:This series of General-Purpose Prototyping Eurocard Circuit Boards comprisessingle, double-sided and extended Eurocards single (3U) and double (6U) heightprototyping pcb's. These matrix boards are formatted for total flexibility - forgeneral purpose applications and various component packing densities, allowingany assembly and wiring techniques, i.e. wire wrapping, or discrete componentwiring. There are no restrictions to layout or wiring. IC's are accepted ineither plane. Supply lines are determined by the User. All The double-sidedboards have a colander ground plane for maximum screening. Octagonal pads offera large solder surface. Identification of component and wiring point locationsis provided by silk screen references on the component side and hole matrixidentification grid references on the solder side of the boards.Features:- General purpose prototyping PCB- With colander ground plane for maximum screening- Octagonal style pads- Used with wire wrapping or discrete component wiring- DIN 41612 connector mounting holes one end 32/64/96 way- Silkscreen reference component side- These double height boards have a 3.81mm gap in the centre of the board- Grid references- Material epoxy glass or FR4- Hole matrix 2.54mm × 2.54mm- Hole size 1.02mm- Board thickness 1.6mm- Copper Thickness 1 oz/ft2 or 35 microns or 305g/m2- Protective Coating OSP - organic solderability preservatives (anti tarnish)
