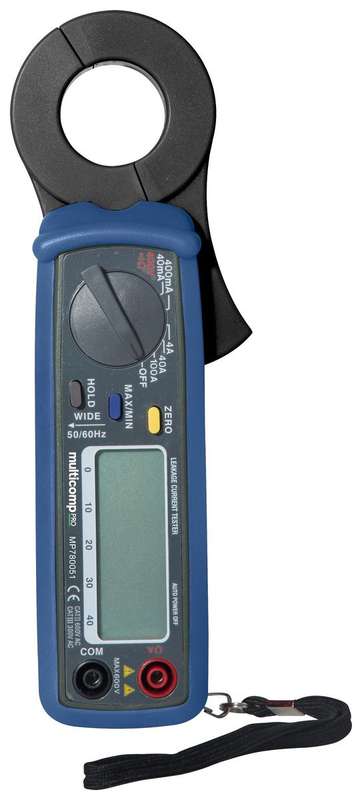

Multicomp Pro Mp780051 Clamp Meter

Features:- Accurate AC digital clamp meter for leakage current measurement- 10µA high resolution on 40mA range- Shield transformer jaws to minimize the effect of external stray magneticfield- Large jaw with 30 mm diameter- Five Ranges (40mA, 400mA, 4A, 40A, 100A) for all application- A filter circuit is designed to eliminate the effect of high-frequency noiseandharmonics by setting the frequency selector switch at the 50Hz/60Hz position forAC current measurement- 3-3/4? Digits LCD Display- Fast display (20 times/sec.) for transient observation- Max/Min and Data Hold functions- Relative Measurement- 600V overload protection for ohm measurement- Easy single rotary switch for any function selection- Auto power off- Function: AC Current, AC Voltage, Resistance and ContinuityProduct Information:DMM Functions: AC Current, AC Voltage, ResistanceCurrent Measure AC Max: 100AVoltage Measure AC Max: 400VVoltage Measure DC Max: -Resistance Measure Max: 400ohmDMM Response Type: -Range Selection: ManualNo. of Digits: 3.75Jaw Opening Max: 30mmProduct Overview:Multifunction AC leakage current tester with a high resolution of 10µA. With ameasuring range of 100A, this meter is ideal for appliance installations orin-vehicle applications.Shielded transformer jaw opens up to 30mmProvides a wide current measuring rangeData hold, max.min. and low battery indicationLarge 3.75 digit LCD display with 4000 countsOverload protectionAuto power offConforms to IEC 61010, CAT III 300VSupplied with a 9V, PP3 battery, 2x test leads and storage caseCurrent range: 40mA-100AVoltage range: 400VResistance range: 40-400R
