Multicomp Pro (R-132G7210100CC) RF/Coaxial Cable Assembly, 50 ohm, 3.9 "

Multicomp Pro (R-132G7210100CC) RF/Coaxial Cable Assembly, 50 ohm, 3.9 "

New 7241 available
R515.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1699254
Bob Shop ID
645121622

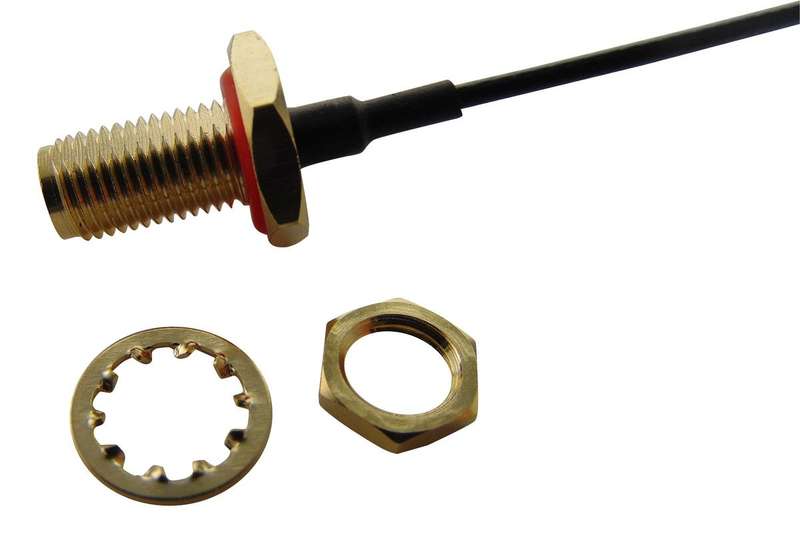

RF / Coaxial Cable Assembly, 90° U.FL Plug to SMA Bulkhead Jack, 1.37mm, 50 ohm,3.9 ", 100 mmProduct InformationConnector to Connector: 90° U.FL Plug to SMA Bulkhead JackConnector Type A: U.FL Right Angle PlugConnector Type B: SMA Bulkhead JackCoaxial Cable Type: 1.37mmImpedance: 50ohmCable Length - Imperial: 3.9"Cable Length - Metric: 100mmJacket Colour: BlackProduct Range: IP67 Miniature Coaxial Cable Assemblies SeriesProduct OverviewThe R-132G7210100CC is a 100mm RF Coaxial Cable Assembly, IP67 waterproof SMAbulkhead jack to a U.FL plug. Utilizing 1.37mm low-loss cable.Ideal for outdoor RF communications applications1.37mm low-loss micro coaxial cableImpedance: 50 RFrequency range: DC to 3 GHzWorking voltage: 60Vrms max.Dielectric withstanding voltage: 200Vrms max.Insulator resistance: 500MR min.VSWR: 1.4 : 1 max.Insertion loss: -1.3dB max.Sheath colour blackTemperature range-20-+70 degCIP67ApplicationsRF Communications
