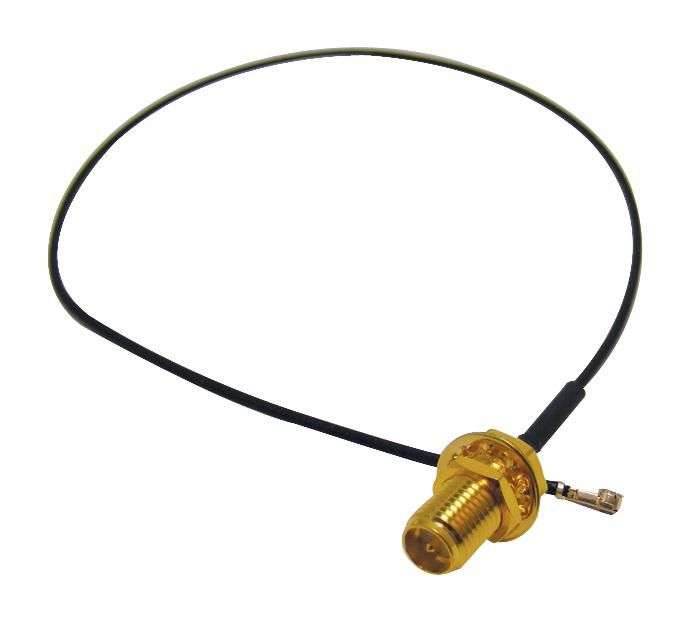

Multicomp Pro (R-134G7210100CC) RF/Coaxial Cable Assembly, 50 ohm, 3.9 "

RF/Coaxial Cable Assembly, 90° U.FL Plug to SMA RP Bulkhead Jack, 1.37mm, 50ohm, 3.9 ", 100 mmProduct InformationConnector to Connector: 90° U.FL Plug to SMA RP Bulkhead JackConnector Type A: U.FL Right Angle PlugConnector Type B: SMA RP Straight JackCoaxial Cable Type: 1.37mmImpedance: 50ohmCable Length - Imperial: 3.9"Cable Length - Metric: 100mmJacket Colour: BlackProduct Range: Miniature Coaxial Cable Assemblies SeriesProduct OverviewThe R-134G7210100CC is a 100mm RF/Coaxial Cable Assembly with right angle U.FLplug to RP-SMA bulkhead jack. It features black heat shrink tube, U.FL-LP-088shell and terminal contact Utilizing 1.37mm low-loss cable. Ideal for outdoor RFcommunications applications1.37mm low-loss micro coaxial cableImpedance: 50 RFrequency range: DC to 3 GHzWorking voltage: 60Vrms max.Dielectric withstanding voltage: 200Vrms max.Insulator resistance: 500MR min.VSWR: 1.4 : 1 max.Insertion loss: -1.3dB max.Sheath colour blackTemperature range-20-+70 degCApplicationsRF Communications
