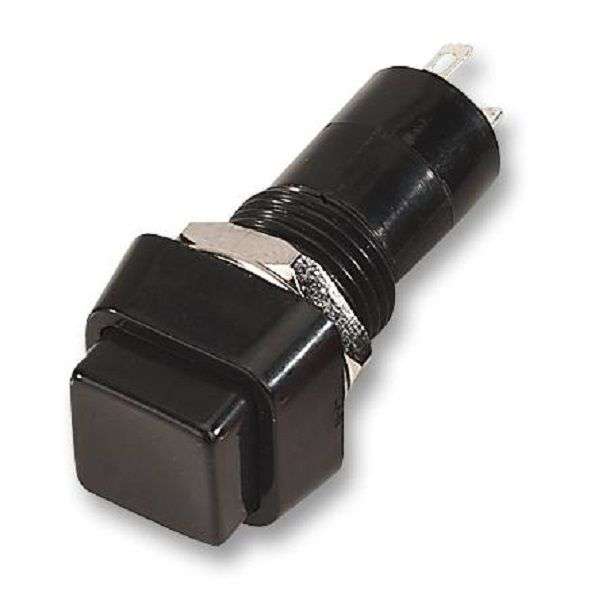

Multicomp Pro (R13-23A-05-BB) Pushbutton Switch, R13-23x, 12.2 mm, SPST-NO

Multicomp Pro (R13-23A-05-BB) Pushbutton Switch, R13-23x, 12.2 mm, SPST-NO

1231 available / new
R189.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1634629
Bob Shop ID
645116616
Pushbutton Switch, R13-23x, 12.2 mm, SPST-NO, Off-(On), Square, BlackProduct InformationPushbutton Switch Type: StandardProduct Range: R13-23xPanel Cutout Diameter: 12.2mmContact Voltage AC Nom: 250VContact Configuration: SPST-NOSwitch Operation: Off-(On)Pushbutton Actuator Style: SquareContact Current Max: 3AActuator / Cap Colour: BlackContact Current AC Max: 3AContact Voltage VAC: 125VContact Current DC Max: -Contact Voltage VDC: -IP Rating: -Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W):Product OverviewThe Multicomp Pro R13-23 series pushbutton switches are mechanically operatedand available in different switch operations.Two pin momentary actionCurrent rating of 3A at 125V and 1.5A at 250VACInsulation resistance of 100Mohm min at DC 500VDielectric strength of 1000VACBlack ABS actuator, black nylon 66 frame and black nylon 66+15%GF baseApplicationsIndustrial, Power Management, Automation & Process Control
Add to cart
