R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 7 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

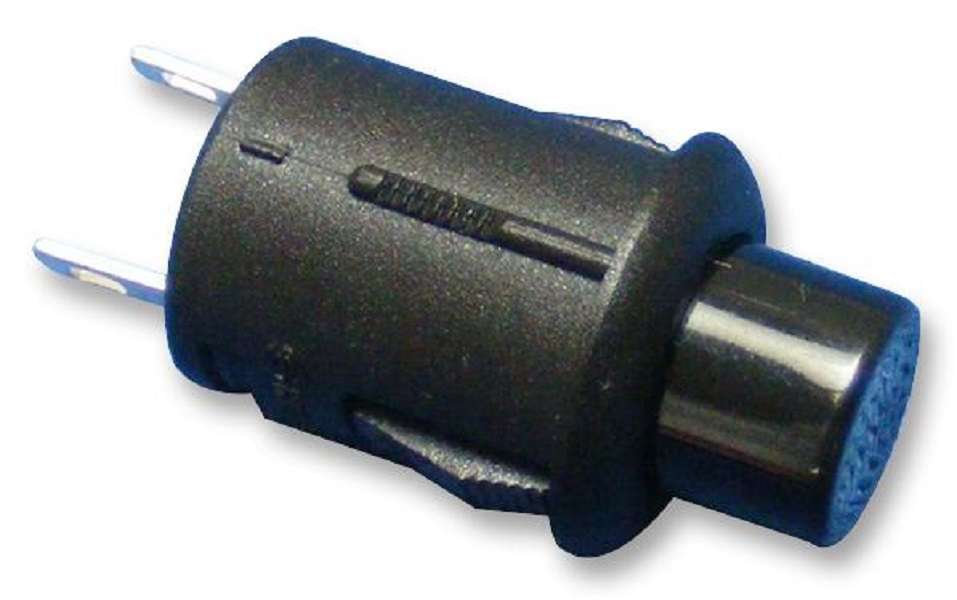

Pushbutton Switch, 12.1 mm, SPST, (On)-Off, Round Raised, BlackProduct InformationPushbutton Switch Type: StandardProduct Range: -Panel Cutout Diameter: 12.1mmContact Voltage AC Nom: 125VContact Configuration: SPSTContact Voltage DC Nom: 14VSwitch Operation: (On)-OffPushbutton Actuator Style: Round RaisedContact Current Max: 3AActuator / Cap Colour: BlackContact Current AC Max: 6AContact Voltage VAC: 125VContact Current DC Max: 6AContact Voltage VDC: 14VIP Rating: -Switch Mounting: Panel MountSwitch Terminals: Solder LugIllumination Colour: Non IlluminatedPanel Cutout (H x W): -Product OverviewThe R13-548A-05-BB is a single-pole single-throw Pushbutton Switch with solderterminals, 2P DPST (On)-Off operation and momentary function.Two pin momentary actionCurrent rating of 3A at 125V, 1.5A at 250VAC and 6A at 14VDC and 3A at 28VDCInsulation resistance of 100Mohm min at DC 500VDielectric strength of 1000VACBlack actuator and black frameApplicationsIndustrial
