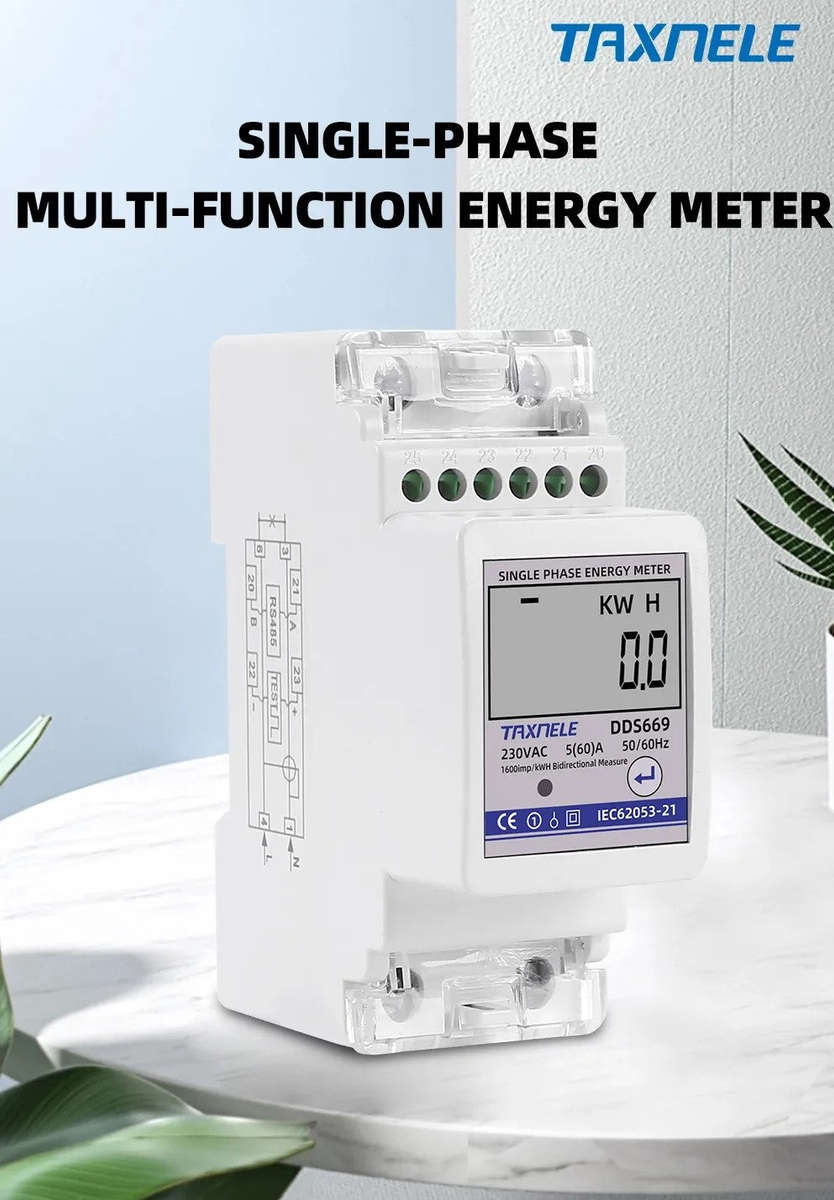

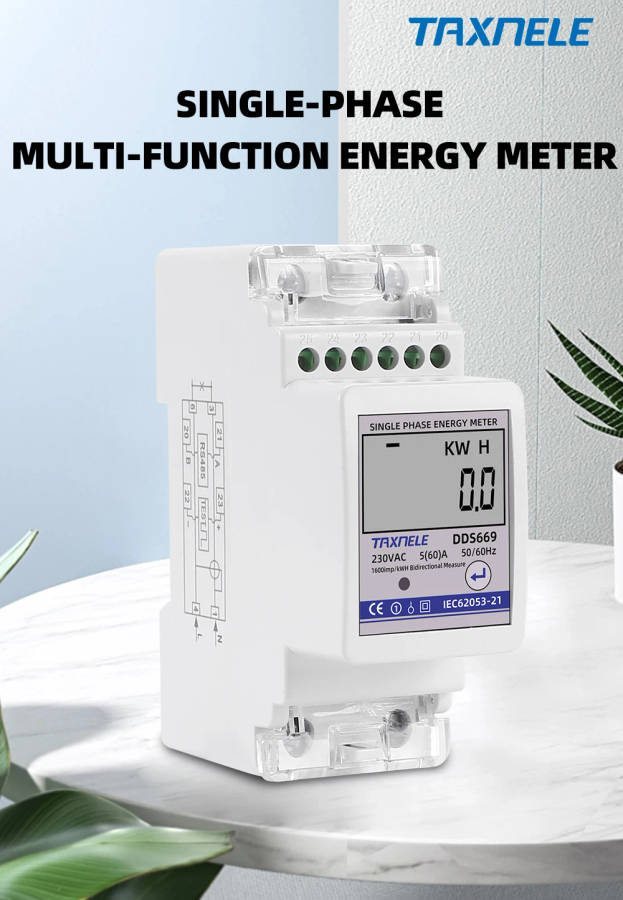

Multifunction 60A Bi-directional Solar Energy Meter

Multifunction 230V 60A Bi-directional Energy Meter KWH for Solar PV Power, Voltage, Current, Frequency ect (10006577)

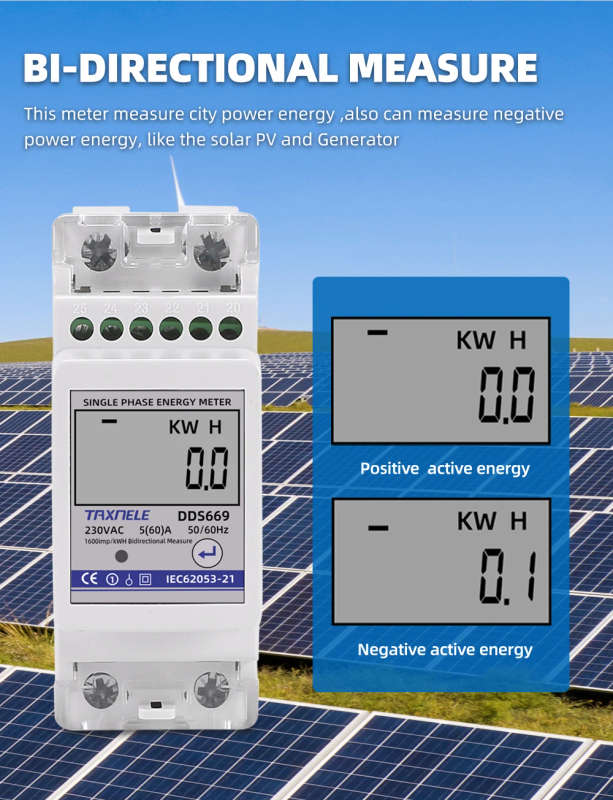

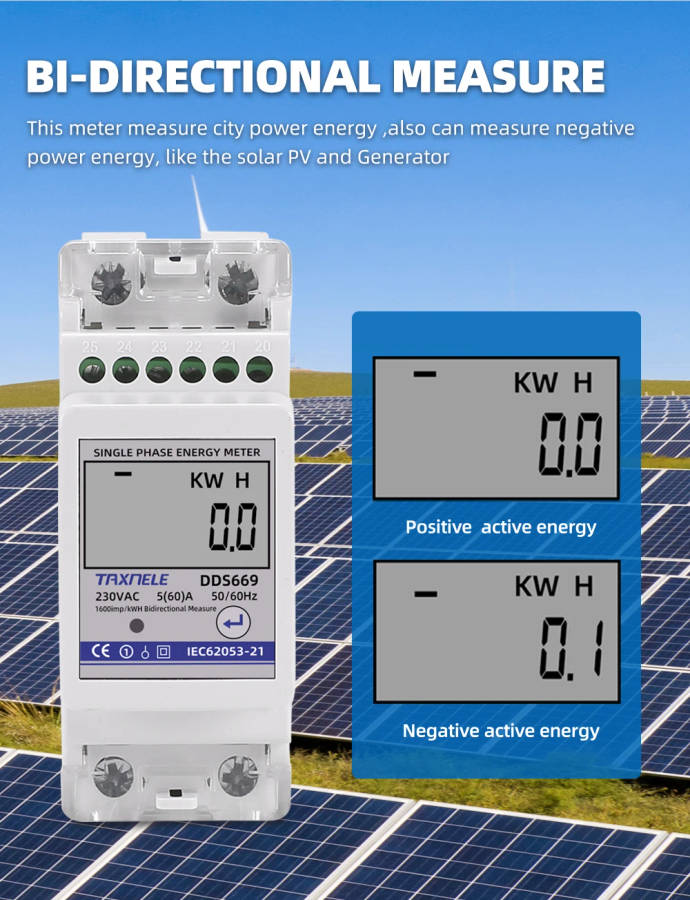

Bi-directional Measure

This meter measure city power energy ,also can measure negative power energy, like the solar PV and Generator

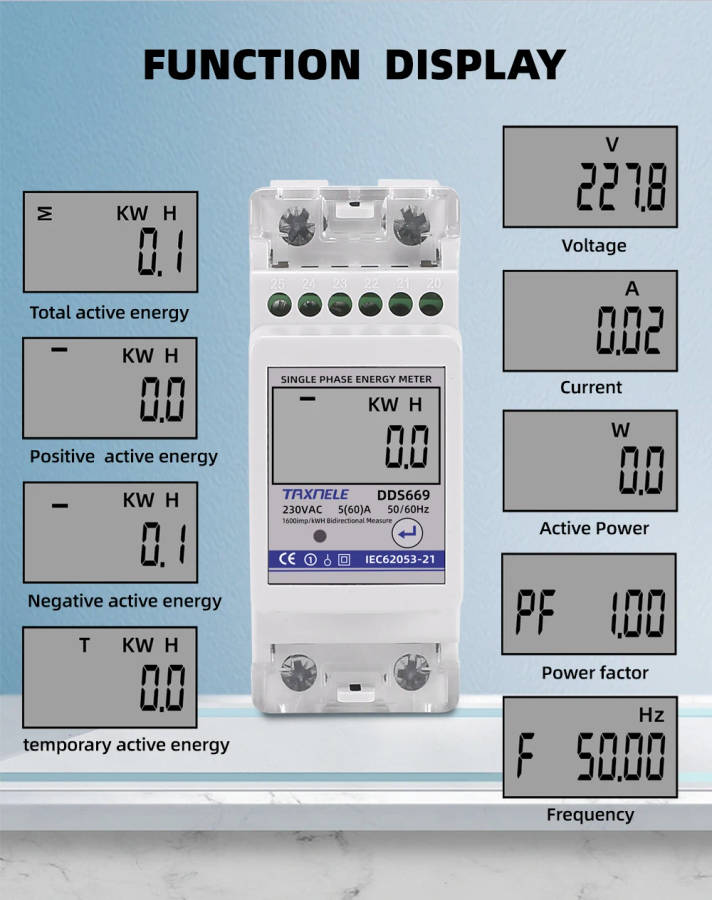

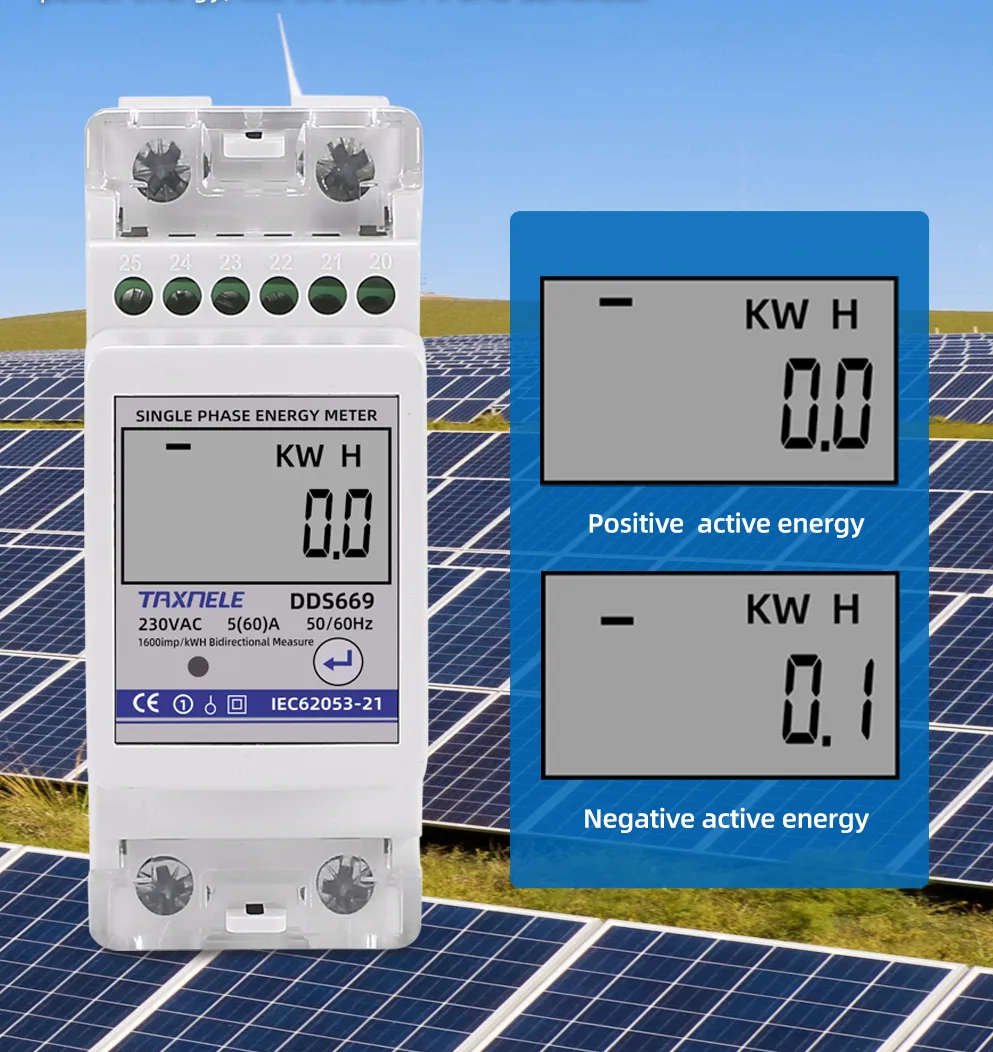

Real-time display of Total Active Energy KWh, Positive Active Energy KWH, Negative Active Energy KWH, Temporary Active Energy KWH

Voltage, Current, Active Power, Power factor ,Frequency

Reference Voltage: 220/230V

Reference Current: 5 (60A)

Accuracy Level: 1.0

Rated Frequency: 50-60Hz

Constant Pulse: 1600imp / kWh

Power Consumption: 2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°

Storage Temperature: -25 ~ 70°

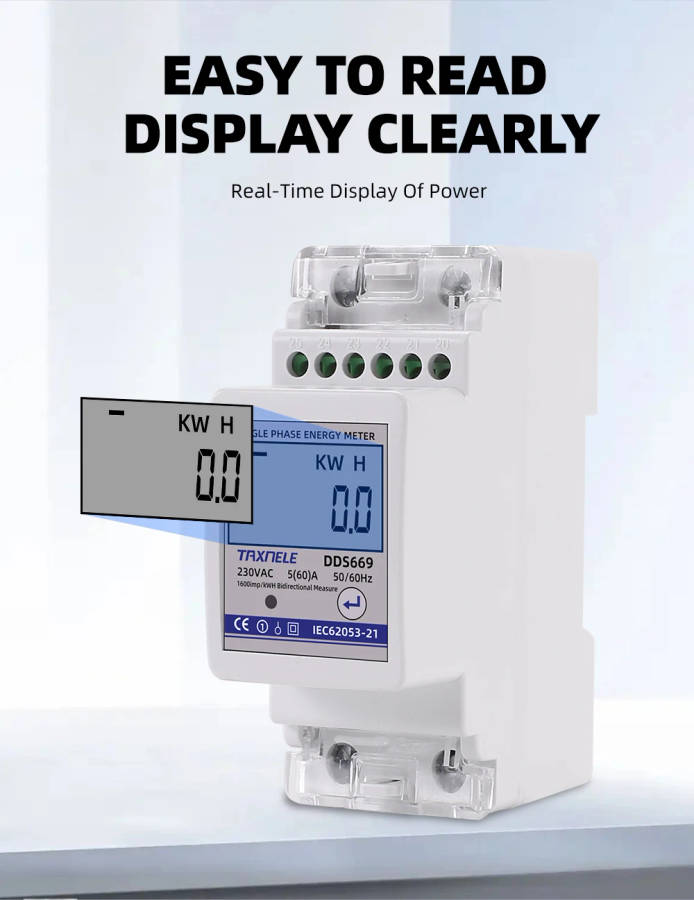

LCD display with Backlight

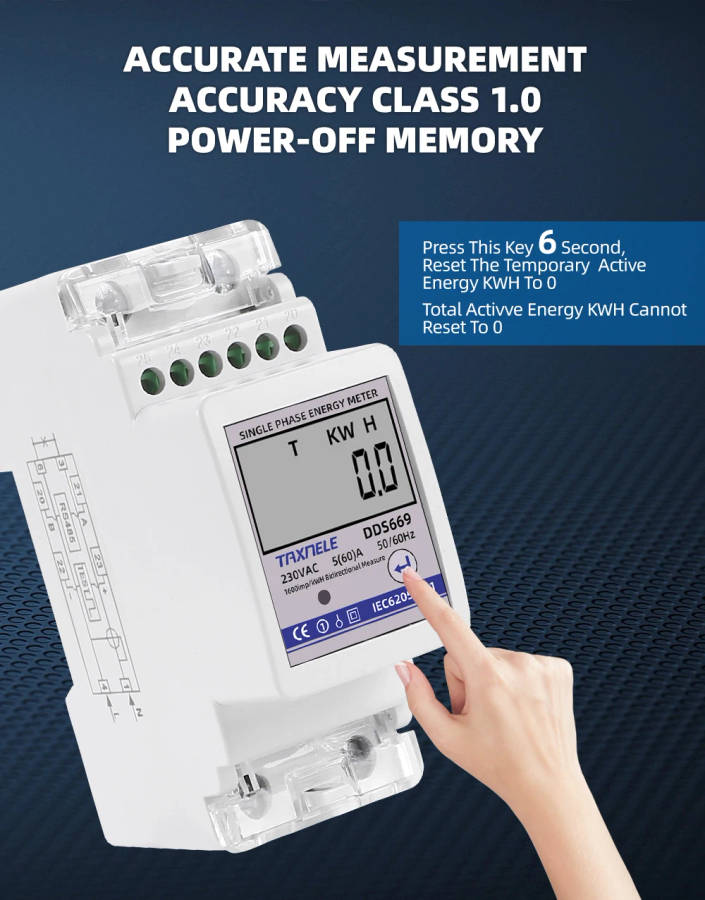

Note:

Hold the button for 6 seconds to Reset the temporary kWh to 0

The Total kWh can not be Reset.

User Manual
