Multifunction Inverter for Backlight Led Constant Current Board

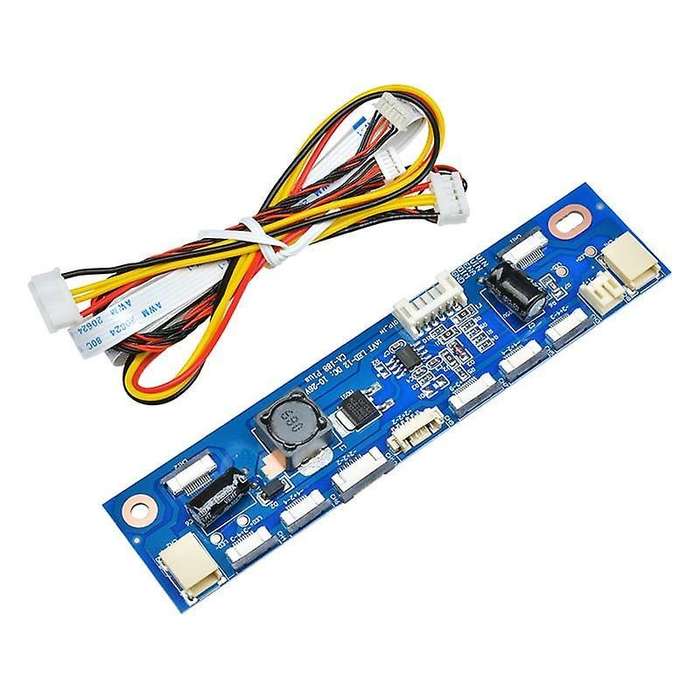

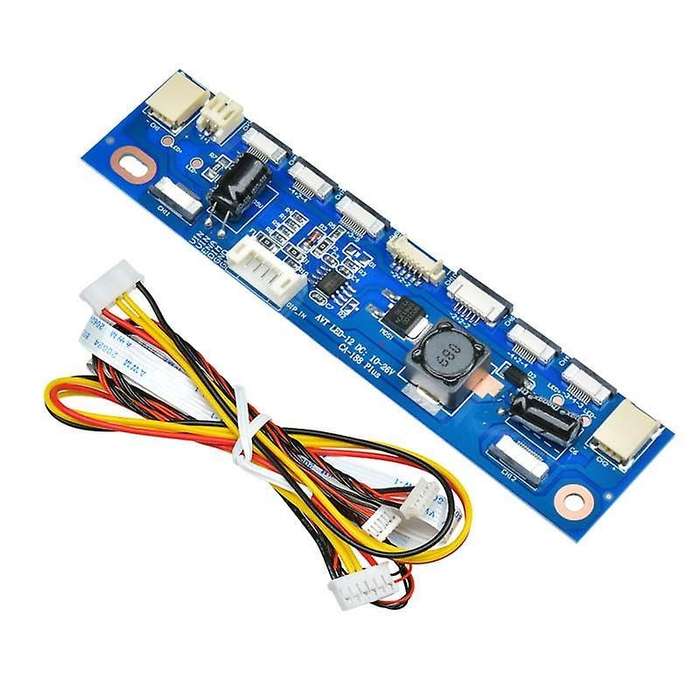

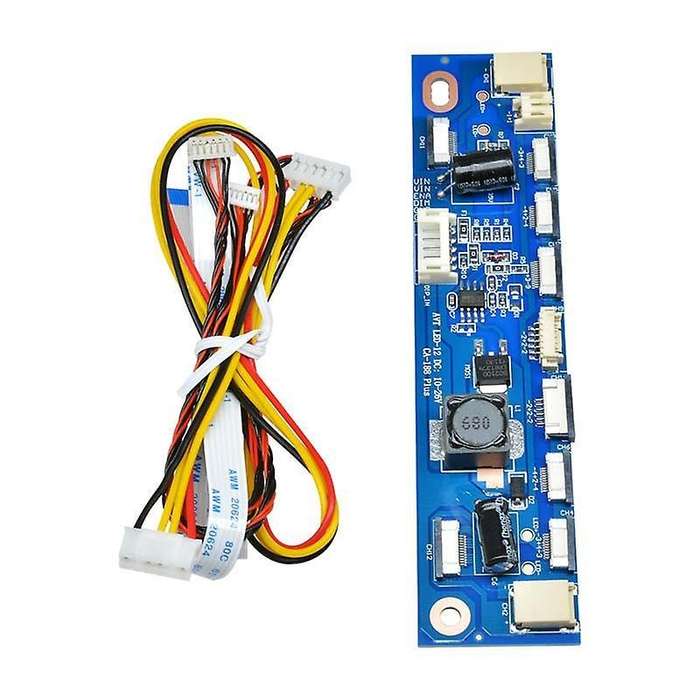

100% brand new and high qualityDescription:Not provide technical support. you should know how to use it. If not, think twice before your order. ThanksProduct Name:Super universal interface 2P 6P 10P 12P full interface universal LED boost board LED high voltage boardLED connection must pay attention to the definition of the interface is only positive and negative points, the positive input power supply must not be reversed or wrong,Improper connection caused by the consequences of their own, special reminder, but also understanding.LED high-pressure board conversion instructions1: Connect the power, ground, and switch signals required by the booster board to the universal LED booster boardVCC Power ON Switch Signal ADJ Brightness Control GND GroundHINT: Connect the same way as the LCD high voltage board2: with a multimeter to measure the amount of LED light bar is the number of lines, which are a few negative which are the number of lines which are a few linesLine is only in the more positive and negative points, engage in technology should not amount to see the original boost board can see out of the definition.Size:12.3cm * 3.1cmInterface definition: Outputs 12 interfaces-3 + 4-3-4 + 2-4+ 3-9-1 + 1-2 + 2-2 electronic wire-2 + 2-2FFC-4 + 2-4-3 + 4-3-5 + 2-5 * 2Small mouth * 2Input: Power supply switch signal brightness control ground wire(Same as LCD)Not all of the interfaces are soldered on, we pre-installed one or more details see above description.color: blue Material: plastic + metalPackage Included:1x Universal Inverter1x 4 pin cableOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
