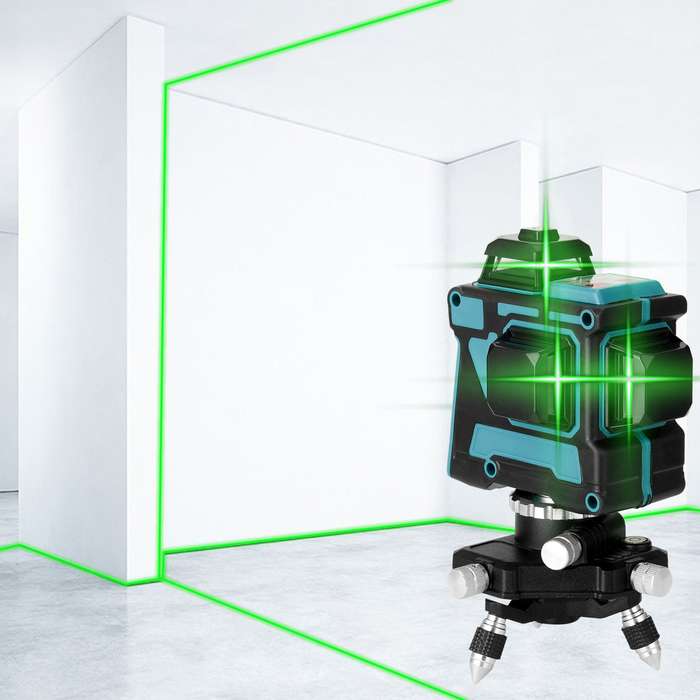

The 3D laser level meter can emit visible lase horizontal and vertical lines for the automatic leveling separately or simultaneously. Provides accurate horizontal and vertical datums for indoor construction stakeout and calibration, easy to operate, and versatile. Suitable for flooring tile layout, paneling, wallpapering, stenciling, wainscoting, finish carpentry,ￂﾠwall stud layout and partition installation. You can have a try.
Features:

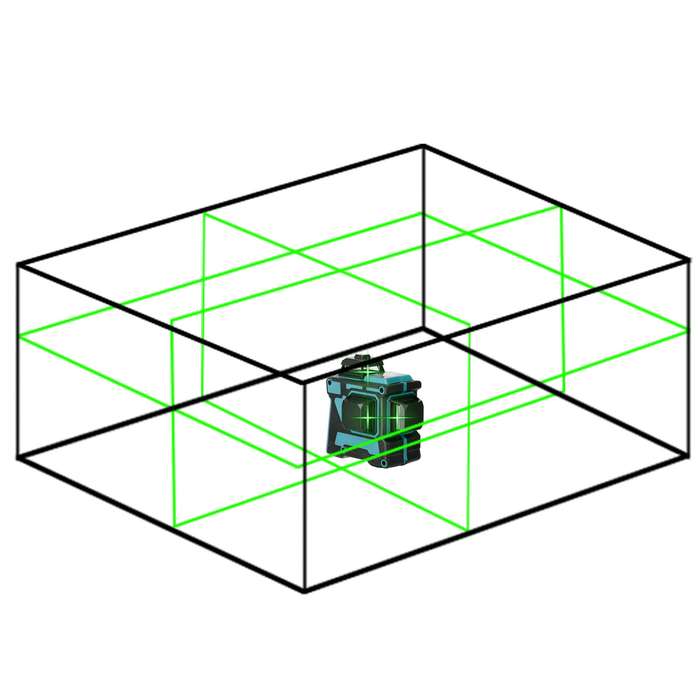

Output 12 laser lines for finer positioning, with self-leveling system, flexibility and stability.
360 rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target.ￂﾠ
1/4 screw size for easy connection, it can be used with tripod to adjust the working height of the machine.
Comes with wall-mounted bracket, can be easily attached to the floor tiles, wall stickers, and ceilings, all 7mm pitch.
Waterproof and dustproof, suitable for both indoor and outdoor use.
Adopts optical , K9 material, fine transmission, with clear laser light.
Equipped with self-test calibration function, ￢ﾉﾤ3 automatic leveling, but if the angle is over 3, the laser light will keep blinking reminding you to reset them on a flat ground.
Rotation knob design, clockwise rotate to open it, anticlockwise ￂﾠrotate to close it.
Two touching buttons design, one OUT/H button, one V button, horizontal line and vertical line with a clearly division.
The button is wear resistant, with high sensitive to switch the line mode quickly, and with comfortable hand feeling.
The T-shape bracket with 7mm wall mounted distance, which has 360 rotatable base, and equipped with fine adjustment mechanism, can make the machine quickly find the target(1/4 screw size).
Easy to carry with the case, providing quick and convenient mobility and storage.
Note:
The laser output maker is located on the output hole.
Do not stare directly at the laser light.
Do not disassemble the instrument and perform internal repairs by yourself.
This instrument meets the laser radiation safety rating standard.
Specifications:
Name: Laser Level
Main material: plastics+metal
Battery: 2 * rechargeable battery, 3.7V, 4800mAh (included, you will find there are two 18650 batteries inside if disassemble one)
Laser ray: 3D, 12 linesￂﾠ
Range: 30m
Laser lines accuracy: ￂﾱ0.2mm/m
Laser light color: green light
Self-levelling-range: ￂﾱ3
Leveling time: ﾼﾜ4s
Laser class: 2
Working temperature: -10 to 40
Storage temperature: -20 to 70
Moisture: 90%
Continuous time: 3-9 hours
Item size:
Assemble size: 137 * 110 * 217mm / 5.39 * 4.33 * 8.54in
Wall mounted bracket size: 160 * 86 * 65mm / 6.30 * 3.39 * 2.56in
Item weight: 1387g / 3.06lb
Package size: 230 * 185 * 160mm / 9.06 * 7.28 * 6.30in
Package weight: 1572g / 3.47lb
Packing List:
1 * Level Machine with Battery
1 * Replacement Battery
1 * Wall Mounted Bracket
1 * Base Stand
1 * Iron Board
1 * Power Adapter
1 * Carrying Bag
1 * Guideline
