Multifunctional AC LCD Digital Voltage Current Tester KWh Watt Panel Battery Meter Gauge

Features:

Function: 1. Electical parameter measurement function(Voltage, current,active power) 2. Large-screen LCD (display voltage, current, active power) 3. Remember the display items(Store display items when power off) 4. Backlight function. Appearance and key function 1.Diaplay interface Display interface is large-screen LCD, extra large fonts to diaplay Voltage, current, power, use the key to switch the parameter. 2.Display format Power: test range: 0-1.1KW Within 1W, the display format is 0.000-0.999W; Within 10W, the display format is 1.000-9.999W; Within 100W, the display format is 10.00-99.999W; Within 1000W, the display format is 100.0-999.9W; 1000W and above,the display format is 1000W Voltage: test range:80-260V Display format: 80.0-260.0V Current: test range: 0-5A Display format: 0.000-5.000A Precautions:

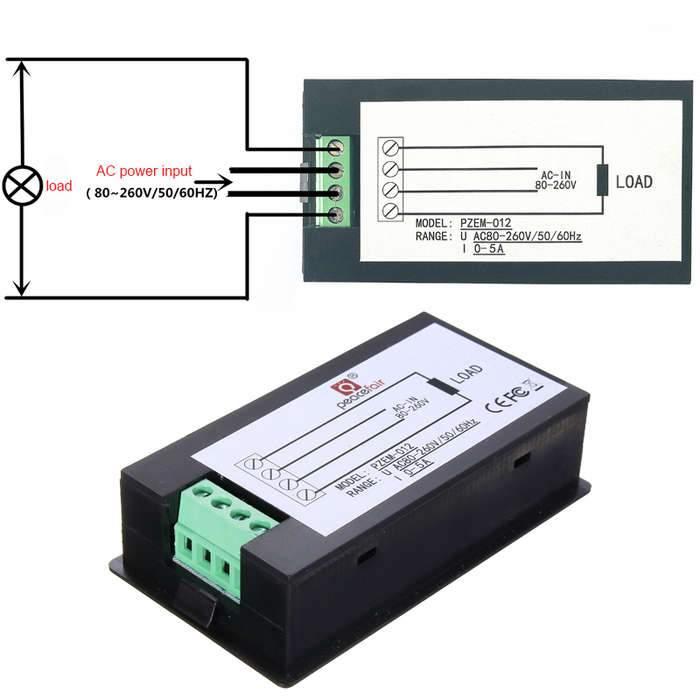

1. This module is suitable for indoor, please do not use outdoor. 2. Applied load should not exceed the rated voltage, current. 3. Wiring order can't be wrong. Specifications:

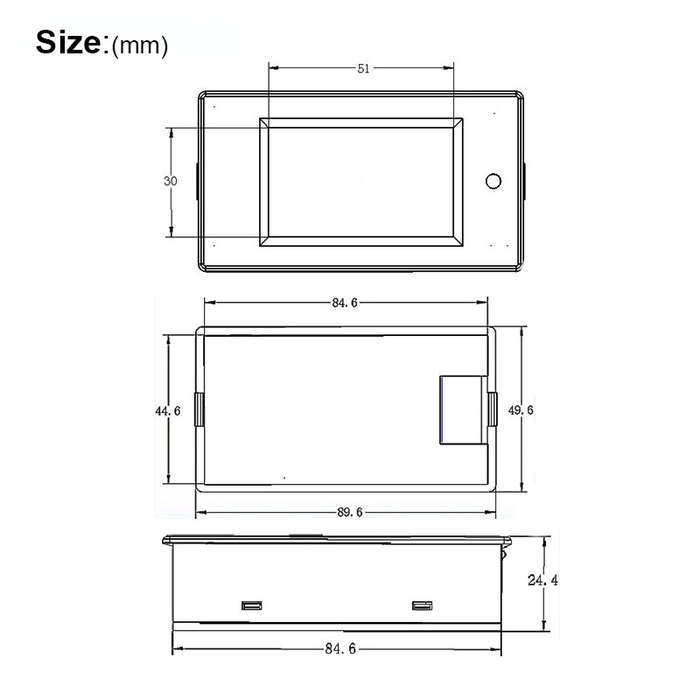

Type: PAEM-012 Working voltage: 80-260VDC Test voltage: 80-260VDC Rated power: 5A/1100W Meaurement accuracy: 1.0 grade Working frequency: 45-65Hz Size: 89.6 x 49.6 x 24.4mm(Length x Wide x High) LCD screen: 51 x 30mm(Length x Wide) Color: Black Package included:
1 x AC Digital Multi-function Meter(With English manual)

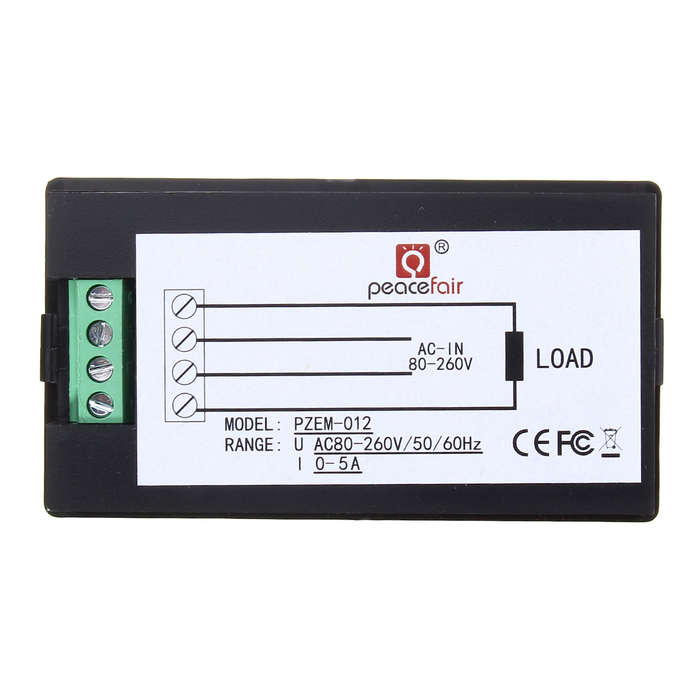

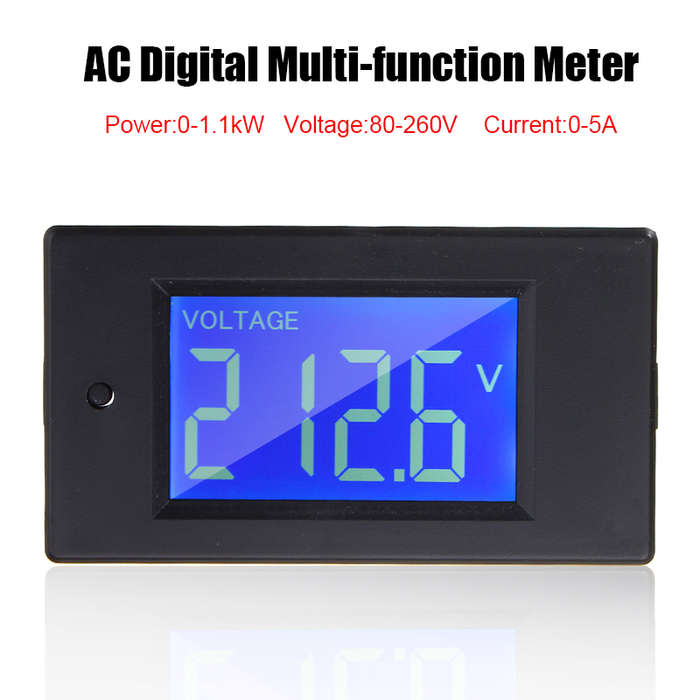

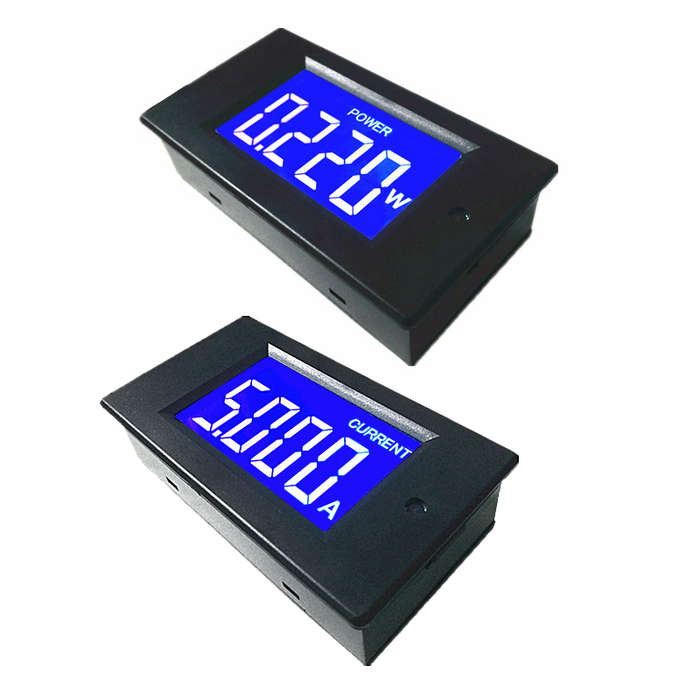

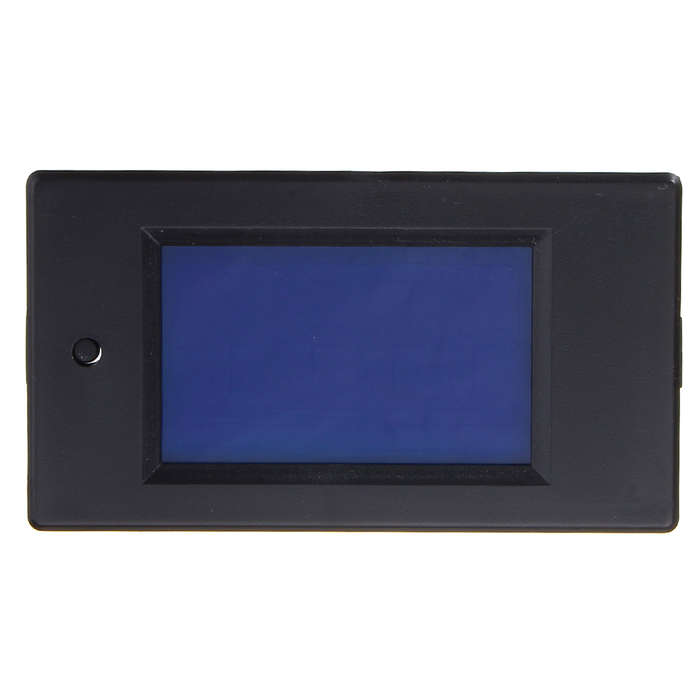

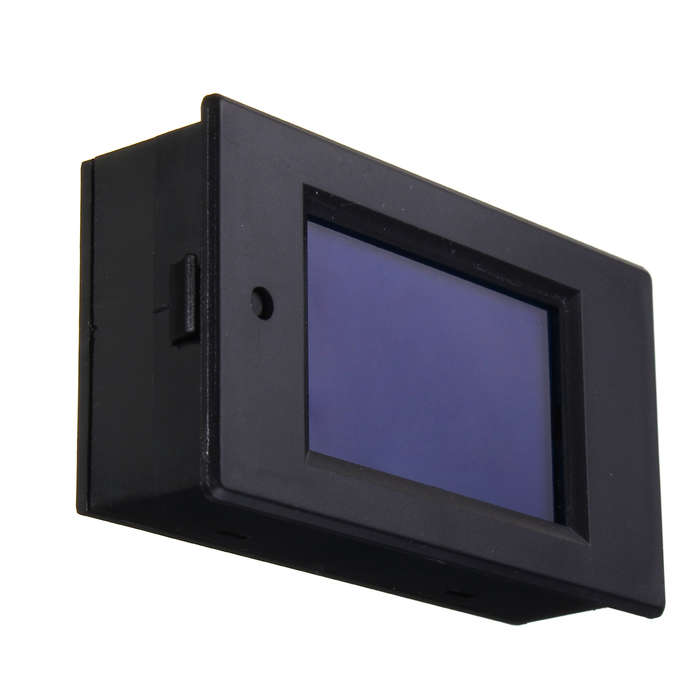

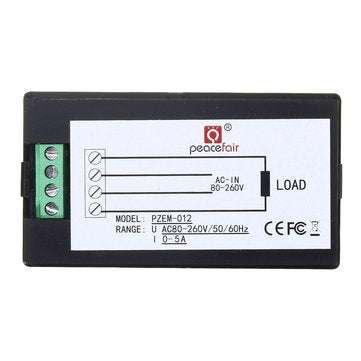

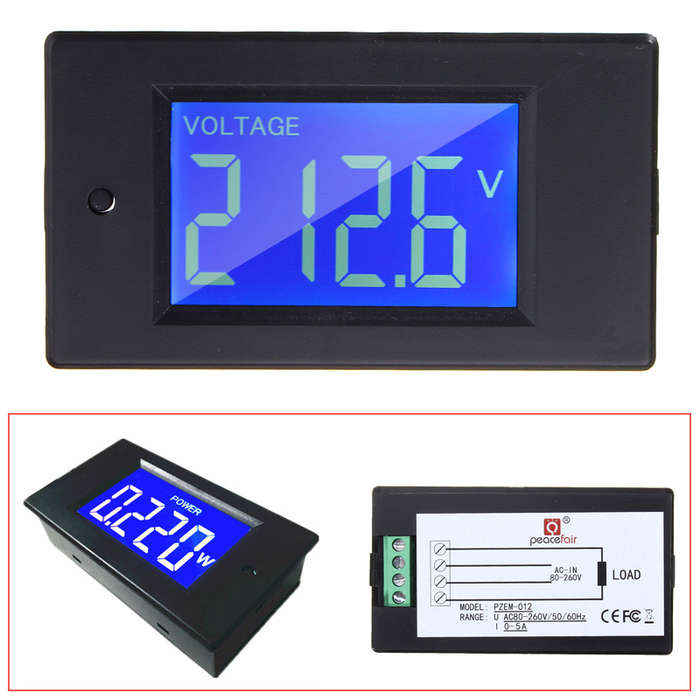

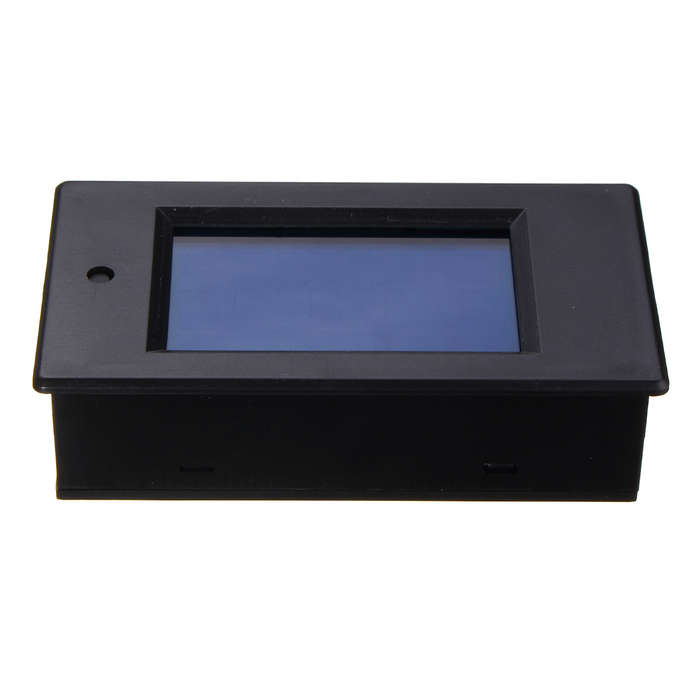

Detail Pictures:












, , , , , , , , ,
