Multifunctional Electric Meter AC Digital Voltage Frequency Monitor, Specification: AC 100A 22000...

1. Voltage: 110-250V
2. Current: P06S-20 0.00~20.0A; P06S-100 0.00~100A
3. Power: P06S-20 0.00~4400W; P06S-100 0.00~22000W
4. Power factor: 0.00~0.99
5. Power: 0.01~99999KWh
6. Frequency: 50HZ/60Hz
7. All-round buckle design, more stable installation and continuous cracking

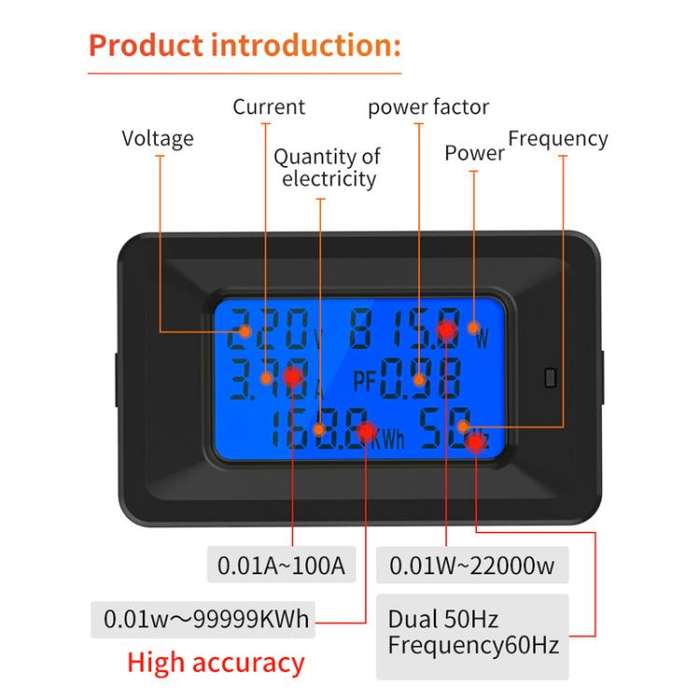

8. HD LCD screen with blue backlight

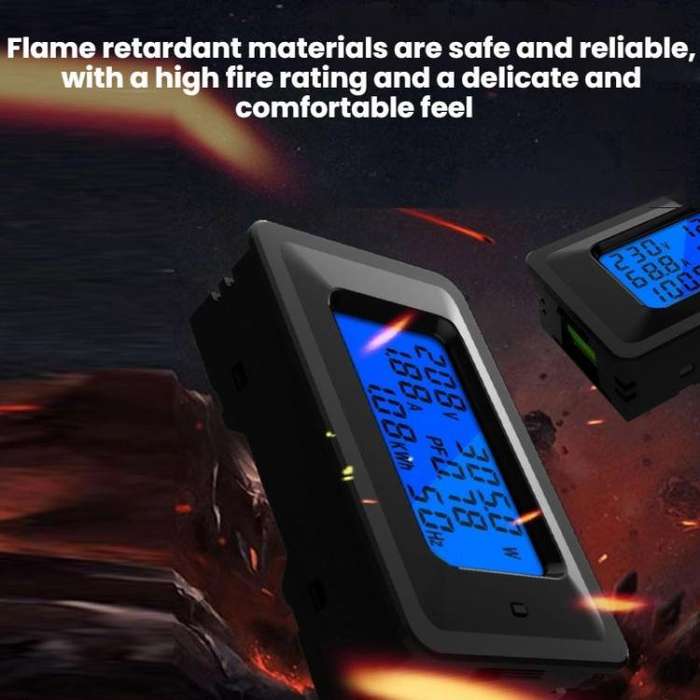

9. Flame retardant materials are safe and secure, with high fire resistance, delicate and comfortable feel
10. ARM processor, integrated dedicated chip, low power consumption/good performance/high accuracy/accurate data
11. Net weight: 20A 81.2g; 100A 106.4g (including transformer)
12. Size: 90x54.5mm (panel); 85x47x28mm

Notes:

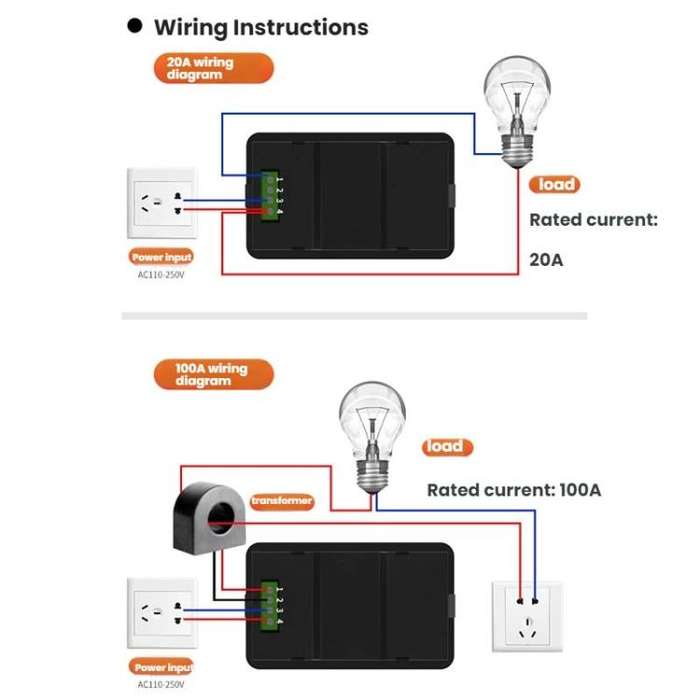

1. The wiring sequence cannot be made wrong
2. Insert the wiring completely into the wiring socket and lock the screws
3. The load applied cannot exceed power (MAX)
4. This product has no waterproof function and is only used indoors and dry environments
