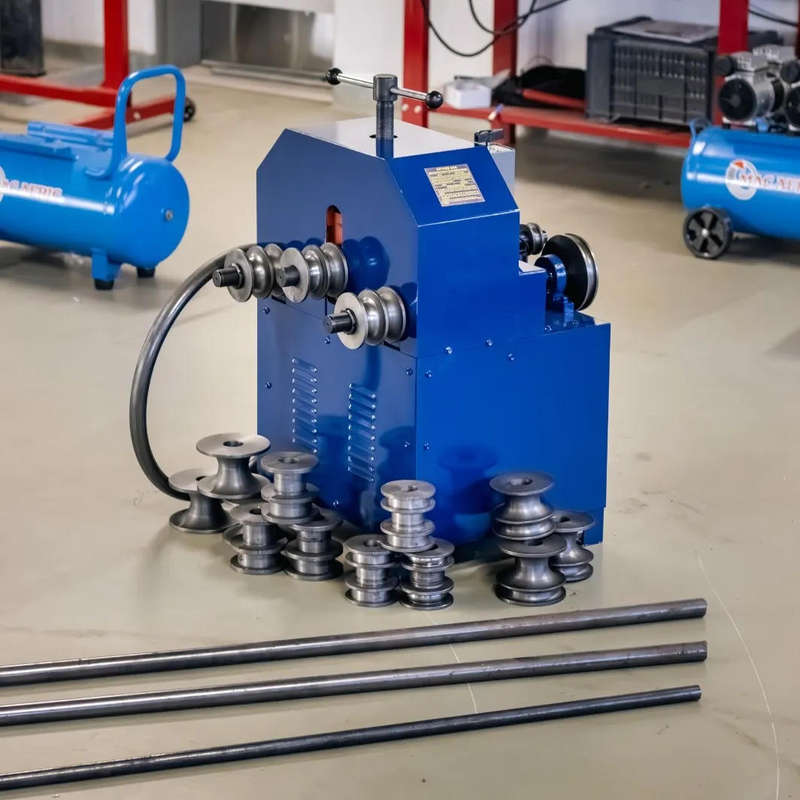

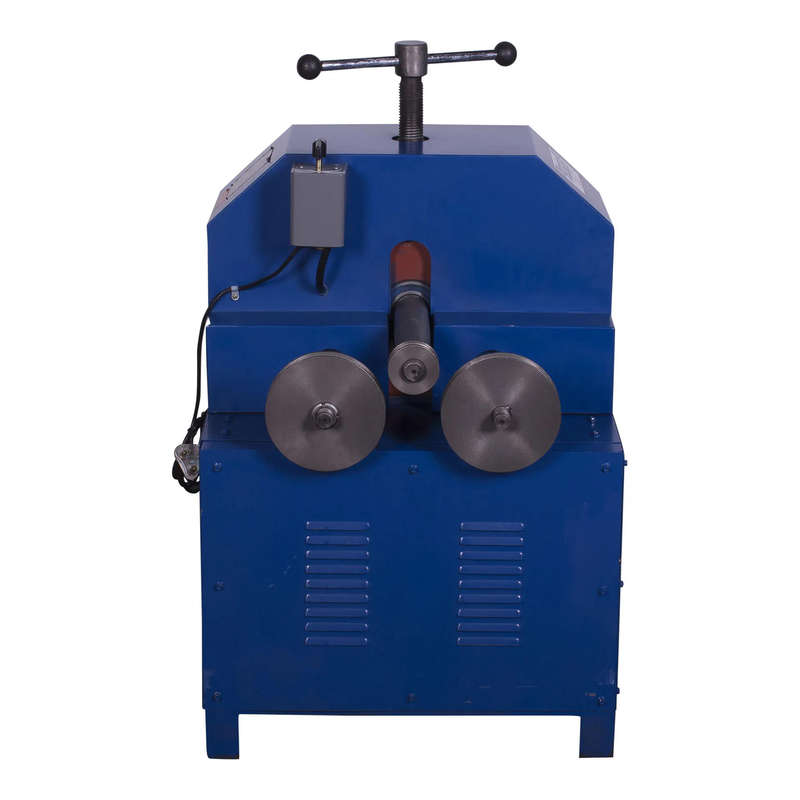

Multifunctional Electrical Round & Square Pipe Bender
This multifunctional electrical pipe bender is engineered for advanced bending tasks across a wide range of applications. Designed to handle both round and square tubing, it efficiently forms arcs and full circles, making it ideal for greenhouse construction, metal frameworks, and structural bending projects. With a powerful motor and hand-adjustable shafts, it offers exceptional control and adaptability for materials such as stainless steel, mild steel, and soft steel.
Capable of bending large diameters with a radius between 320 mm and 1520 mm, this unit works with a variety of die combinations to accommodate different tube sizes and thicknesses. Its precision design includes hardened steel dies for durability, a stable drive system, and optimal support for thick-walled and large-diameter pipes.
Features
Electrical operation with a 1.5 kW motor delivering 1400 RPM
Compatible with both round and square tubing
Supports stainless steel and mild steel from 0.5 mm to 2.3 mm wall thickness
Adjustable shaft system for precision control
Ideal for forming large-radius curves and full-circle bends
Durable steel dies provide consistent, long-lasting performance
Includes a wide selection of die pairs for various pipe sizes
Suitable for industrial, structural, and agricultural fabrication
Specifications
Voltage: 230 V @ 50 Hz
Motor: 1.5 kW, 1400 RPM
Wall Thickness Range: 0.5 mm 2.3 mm (based on material type and pipe size)
Bending Radius: 320 mm 1520 mm
Round Formers Included: 16, 19, 22, 25, 32, 38, 51, 63, 76 mm
Square Formers Included: 16, 19, 22, 25, 30, 38, 40, 50 mm
Die Combinations:
Round: 16 & 63, 25 & 51, 32 & 38, 76 mm
Square: 30 & 50, 16 & 25 & 40 mm
Adjustment: Manual shaft adjustment for fine-tuning bends
Recommended Wall Thickness (Stainless/Mild Steel):
Round: from 0.5 mm (16 mm pipe) to 2.3 mm (76 mm pipe)
Square: from 0.5 mm (16 mm pipe) to 1.8 mm (50 mm pipe)
