Multifunctional expansion shield DHT11LM35 temperature
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
C13-T10
Bob Shop ID
594514796
Description

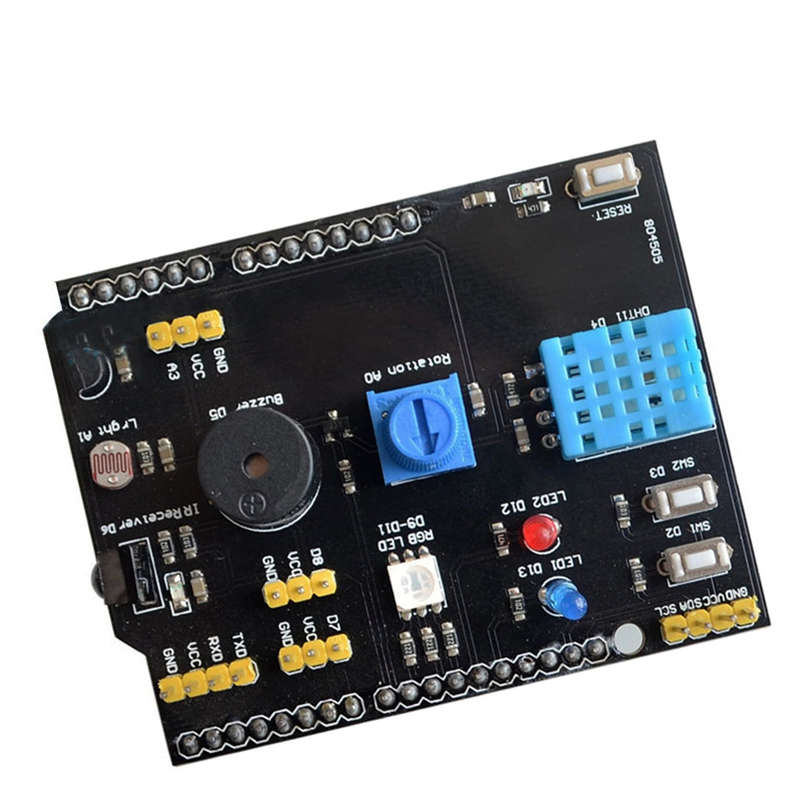

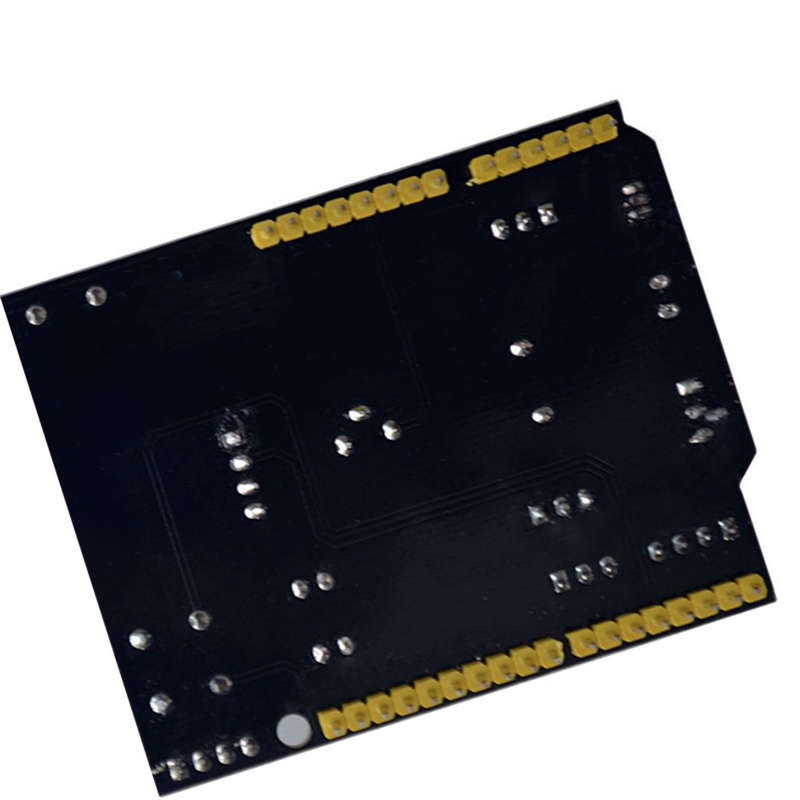

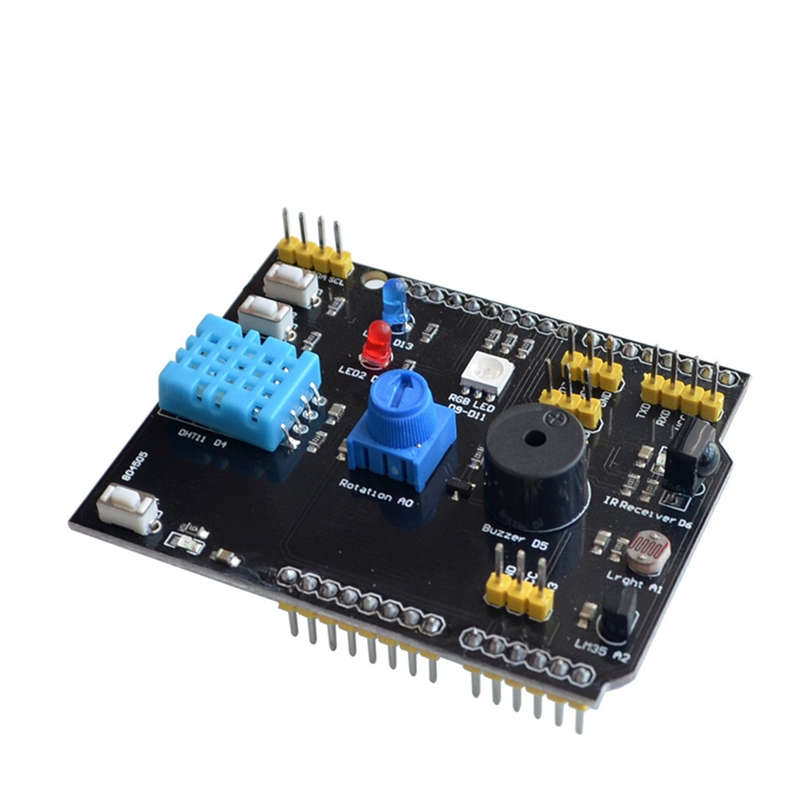

This shield is an excellent platform for those that are in the early phases of learning Ardiono. It's plug and play into your Arduino Uno and you can get started with the coding in no time. The relevant Arduino Uno pins are clearly marked on the board for easy reference.
Specifications
2 X Buttons (SW1 - D2, SW2 - D3)
2 X LED (Red - D12 and Blue - D13)
1 X LDR (A1)
1 X LM35D temperature sensor (A3)
1 X Passive Buzzer (D5)
1 X Rotary potentiometer (A0)
1 X RGB LED (D9-D11)
1 X Infrared receiver module (Check out our IR remotes, audio version) (D6)
1 X DHT11 temperature and humidity sensor module (D4)
1 X I2C interface (A4 SDA, A5 SCL)
1 X Reset button
