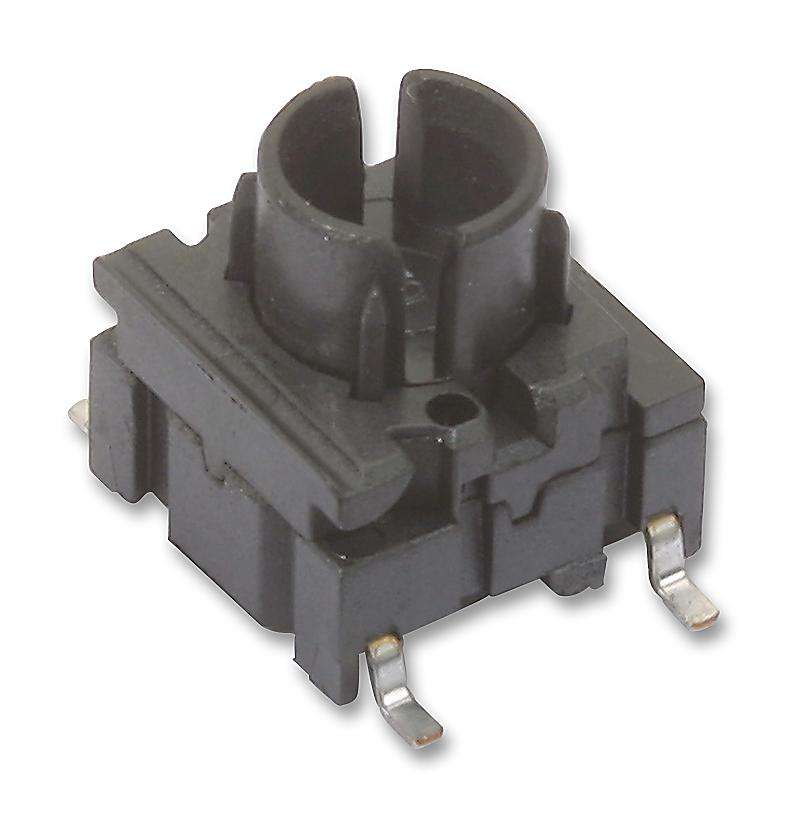

Multimec (RA3FSH9) Tactile Switch, Multimec 3F, Top Actuated

Tactile Switch, Multimec 3F, Top Actuated, Surface Mount, Round Button, 300 gf,50mA at 24VDCProduct InformationSwitch Terminals: SolderProduct Range: Multimec 3FActuator Orientation: Top ActuatedSwitch Mounting: Surface MountActuator Style: Round ButtonContact Current Max: 50mAActuating Force: 300gfContact Voltage DC Nom: 24VContact Rating: 50mA at 24VDCOperating Force: 3NSwitch Dimensions (L x W): 10mm x 10mmIP Rating: IP67Illumination: Non IlluminatedProduct OverviewThe RA3FSH9 is a single-pole single-throw (SPST) Surface Mount momentary actionTactile Switch with SnCu + 2µNI + 3µSnPb terminals, PBT UL94VO housing andactuator. The MULTIMEC series switch is excellent for build-in, over-mould aswell as under foil solutions because it can still function even if the overlaybreaks and an upgrade can be done by changing the foil and not the PCB.Silicone rubber sealing + springStainless steel + 3µAg Contact spring10000000 operations LifetimeIP67 Protection rating (sealed)ApplicationsIndustrial
