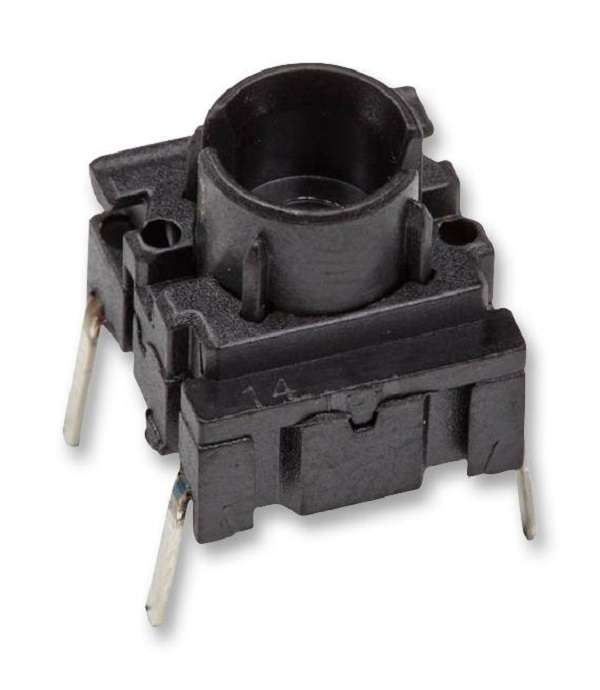

Multimec (RA3FTH9) Tactile Switch, Multimec 3F, Top Actuated

Tactile Switch, Multimec 3F, Top Actuated, Through Hole, Round Button, 300 gf,50mA at 24VDCProduct InformationSwitch Terminals: Through HoleProduct Range: Multimec 3FActuator Orientation: Top ActuatedSwitch Mounting: Through HoleActuator Style: Round ButtonContact Current Max: 50mAActuating Force: 300gfContact Voltage DC Nom: 24VDCContact Rating: 50mA at 24VDCOperating Force: 3NSwitch Dimensions (L x W): 10mm x 10mmIP Rating: IP67Illumination: Non IlluminatedProduct OverviewThe RA3FTH9 is a single-pole single-throw through hole momentary action TactileSwitch. This series has an actuator extended out of the switch body and usesslide-on cap retention system.IP67 Protection rating (sealed)High temperature rangePPS UL94V-0 Housing and actuator1000000 Cycles lifetimeApplicationsIndustrial
