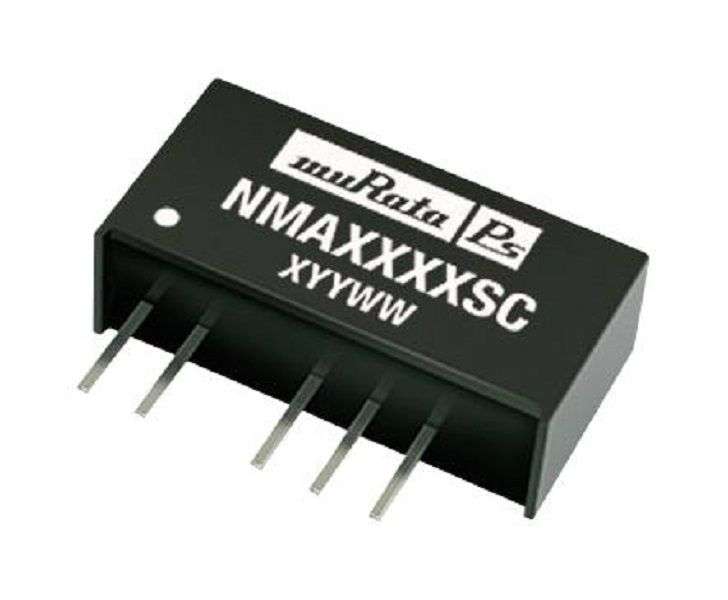

Murata (NMA0515SC) Isolated Through Hole DC/DC Converter 2 Output 15V, 33mA

Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 2 Output, 15 V, 33 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 15VOutput Current - Output 1: 33mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -15VOutput Current - Output 2: 33mAOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 4.5VInput Voltage DC Max: 5.5VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 5VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 19.5mmHeight: 10mmDepth: 6mmProduct Range: NMA SeriesProduct OverviewThe NMA0515SC is a 2-output board-mount isolated DC to DC Converter ideallysuited for providing dual rail supplies on primarily digital boards with theadded benefit of galvanic isolation to reduce switching noise. The NMA series 1WDC/DC converter is the standard building block for on-board distributed powersystems. All of the rated power may be drawn from a single pin provided thetotal load does not exceed 1 watt.Efficiency up to 80%Power density up to 0.85W/cm³No heatsink requiredFootprint from 1.17cm²Industry standard pinoutPower sharing on output1kVDC IsolationInternal SMD constructionFully encapsulated with toroidal magneticsNo external components requiredMTTF up to 3.1 million hoursNo electrolytic or tantalum capacitorsApplicationsPower Management
