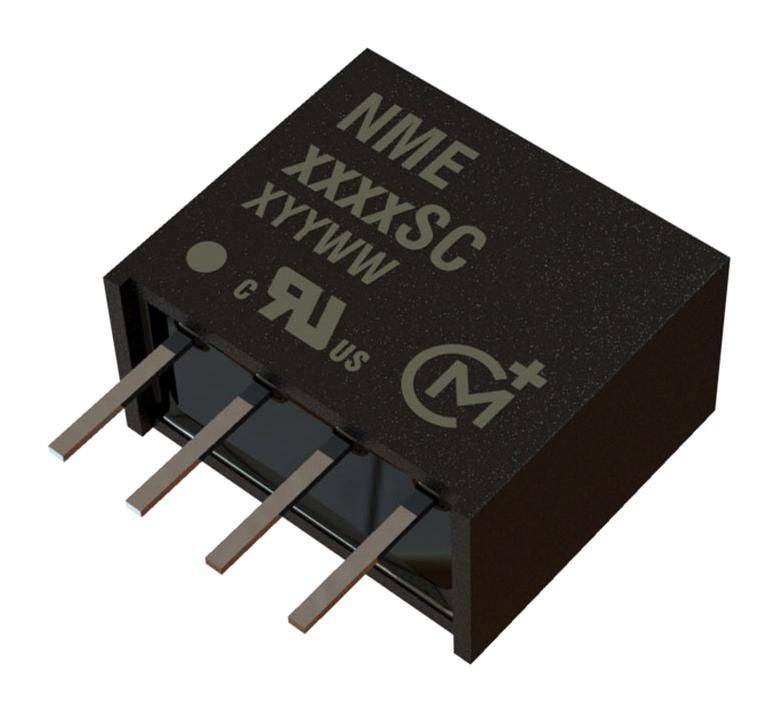

Murata (NME0512SC) Isolated Through Hole DC/DC Converter, Output 12V, 83mA

Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, 1:1, 1 W, 1 Output,12 V, 83 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 12VOutput Current - Output 1: 83mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 4.5VInput Voltage DC Max: 5.5VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 5VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 6mmHeight: 10mmDepth: 11.48mmProduct Range: NME SeriesProduct OverviewThe NME0512SC is a 1-output 1W board-mount isolated DC to DC Converterparticularly suited to isolating and/or converting DC power rails. The galvanicisolation allows the device to be configured to provide an isolated negativerail in systems where only positive rails exist. Pin compatible with LME and NMLseries.1kVDC IsolationEfficiency up to 80%1.53W/cm³ Power densityFootprint from 0.69cm²Industry standard pinoutNo heatsink requiredInternal SMD constructionFully encapsulated with toroidal magneticsNo external components requiredMTTF up to 3.4 million hoursPCB mounting-40 to +85°C Operating temperature rangeApplicationsPower Management
