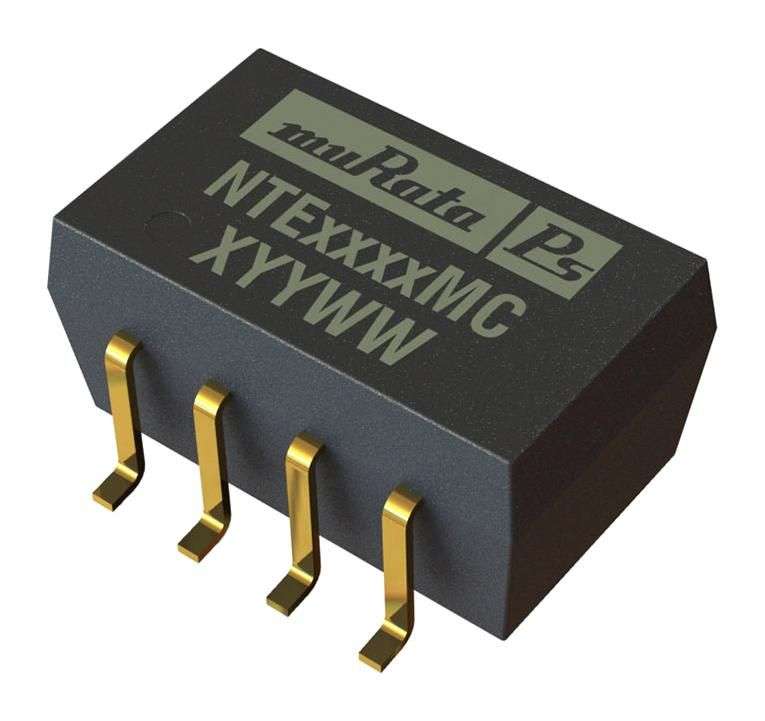

Murata (NTE0512MC) Isolated Surface Mount DC/DC Converter, 12 V, 83 mA

Isolated Surface Mount DC/DC Converter, Miniature, ITE, 1:1, 1 W, 1 Output, 12V, 83 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 12VOutput Current - Output 1: 83mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 4.5VInput Voltage DC Max: 5.5VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 5VDC / DC Converter Mounting: Surface Mount DeviceWidth: 7.7mmHeight: 6.6mmDepth: 12.7mmProduct Range: NTE SeriesProduct OverviewThe NTE0512MC is an isolated single-output SM DC/DC Converter employs lead-frametechnology and transfer moulding techniques to bring all of the benefits of ICstyle to hybrid circuitry. The co-planarity of the pin positions is based uponIEC 191-6:1990. The device is suitable for all applications where high volumeproduction is envisaged.No heat-sink requiredInternal SMD constructionToroidal magneticsMulti-layer ceramic capacitors1.8W/cm³ Power density1.37cm² Footprint over pins77% Efficiency42pF Isolation capacitance4960µs Start-up timeApplicationsSignal Processing, Industrial
