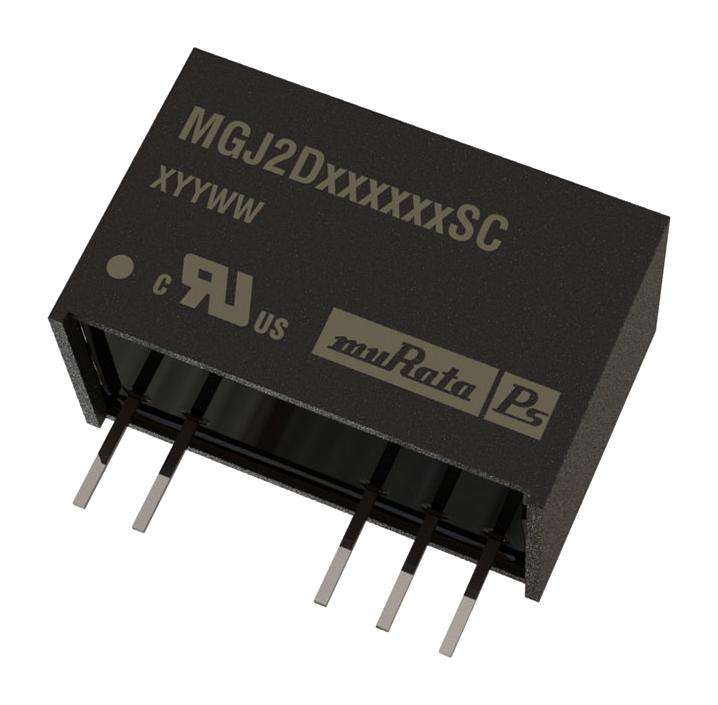

Murata Power (MGJ2D052005SC) Isolated Through Hole DC/DC Converter,

Isolated Through Hole DC/DC Converter, Gate Drive, 1:1, 2 W, 2 Output, 20 V, 80mAProduct InformationPower Supply Approvals: Gate DriveOutput Power Max: 2WInput Ratio: 1:1Output Voltage - Output 1: 20VOutput Current - Output 1: 80mANo. of Outputs: 2 OutputOutput Voltage - Output 2: -5VOutput Current - Output 2: 40mAOutput Regulation: UnregulatedIsolation Voltage: 5.2kVInput Voltage DC Min: 4.5VInput Voltage DC Max: 5.5VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 5VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 9.95mmHeight: 12.65mmDepth: 19.65mmProduct Range: MGJ SeriesProduct OverviewThe MGJ2D052005SC is a 2-output 2W board-mount isolated gate-drive DC/DCConverter ideal for powering high-side and low-side gate drive circuits forIGBTs and MOSFETs in bridge circuits. A choice of asymmetric output voltagesallows optimum drive levels for best system efficiency and EMI. The device ischaracterized for high isolation and dv/dt requirements commonly seen in bridgecircuits used in motor drives and inverters, while the device industrial gradetemperature rating and construction gives long service life and reliability.Ultra low coupling capacitanceCharacterised dv/dt immunityCharacterised partial discharge performancePower density 0.81W/cm³5.2kVDC Isolation test voltage hi pot test8% Maximum load regulation50mVp-p Maximum ripple and noise78.5% Typical efficiency3.3pF Isolation capacitance5.4ms Start-up timeApplicationsPower Management, Industrial
