Murata Power (NME0505SC) Isolated Through Hole DC/DC Converter, Output, 5 V

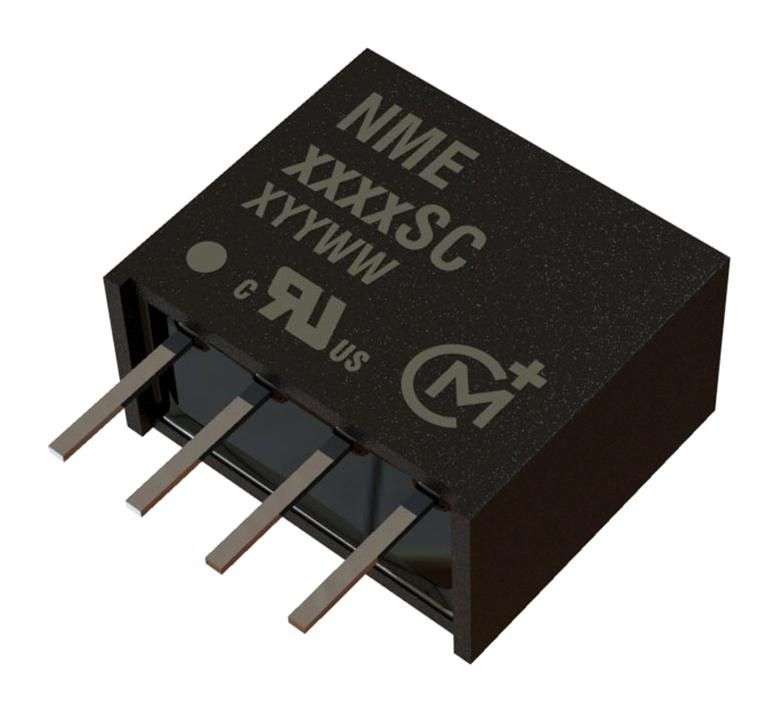

Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, 1:1, 1 W, 1 Output, 5V, 200 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 5VOutput Current - Output 1: 200mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 4.5VInput Voltage DC Max: 5.5VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 5VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 6mmHeight: 10mmDepth: 11.48mmProduct Range: NME SeriesProduct OverviewThe NME0505SC from Murata is an isolated, 1W, single output DC to DC converterin SIP package. It is particularly suited to isolate or converting DC powerrails. The galvanic isolation allows the device to configure an isolatednegative rail in systems where only positive rails exist.Nominal input voltage is 5VDCOutput voltage is 5VDCOutput current is 200mAInput current at rated load is 289mAEfficiency is 69%1KVDC isolationUL 94V-0 package materialFully encapsulated with toroidal magneticsNo external components requiredNo heatsink requiredApplicationsPower Management, Industrial
