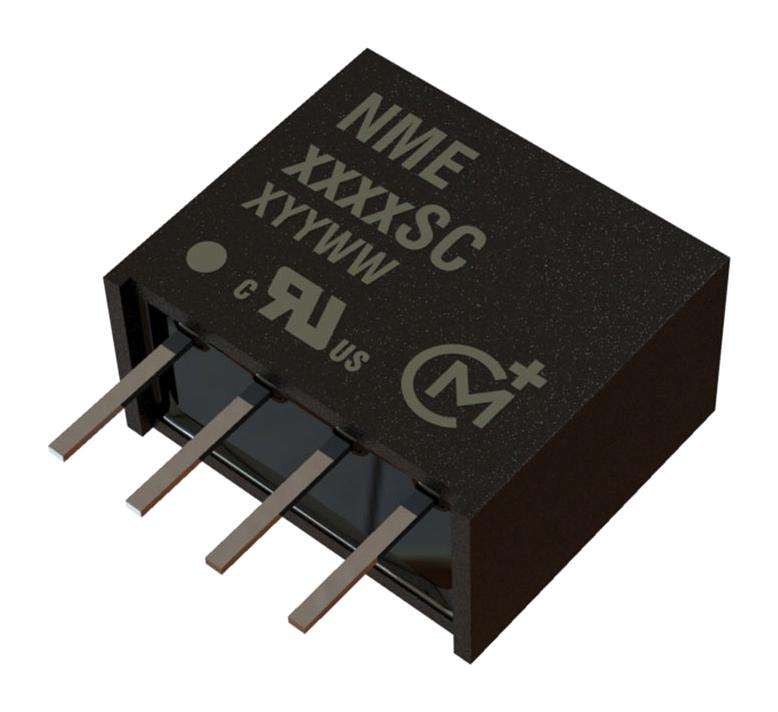

Murata Power (NME2405SC) Isolated Through Hole DC/DC Converter, Output 5V

Isolated Through Hole DC/DC Converter, ITE, 1:1, 1 W, 1 Output, 5 V, 200 mAProduct InformationPower Supply Approvals: ITEOutput Power Max: 1WInput Ratio: 1:1Output Voltage - Output 1: 5VOutput Current - Output 1: 200mANo. of Outputs: 1 OutputOutput Regulation: UnregulatedIsolation Voltage: 1kVInput Voltage DC Min: 21.6VInput Voltage DC Max: 26.4VDC / DC Converter Output Type: FixedInput Voltage DC Nom: 24VDC / DC Converter Type: SIPDC / DC Converter Mounting: Through HoleWidth: 6mmHeight: 10mmDepth: 11.48mmProduct Range: NME SeriesProduct OverviewThe NME2405SC is a 1-output 1W board-mount isolated DC to DC Converterparticularly suited to isolating and/or converting DC power rails. The galvanicisolation allows the device to be configured to provide an isolated negativerail in systems where only positive rails exist.1kVDC IsolationEfficiency up to 80%1.45W/cm³ Power densityFootprint from 0.69cm²Industry standard pinoutNo heatsink requiredInternal SMD constructionFully encapsulated with toroidal magneticsNo external components requiredApplicationsPower Management
