Title:

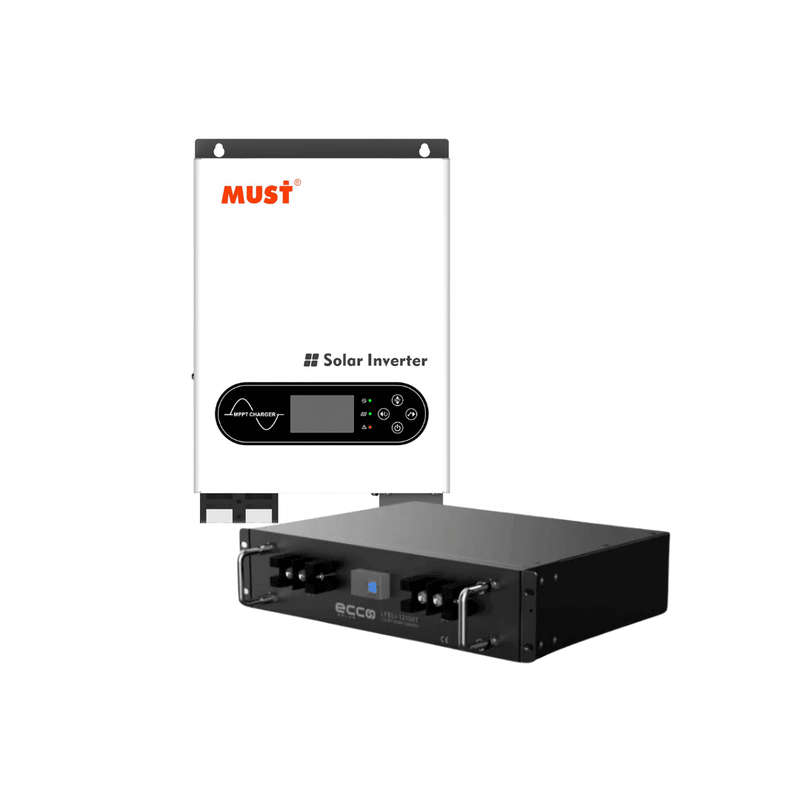

MUST 3.6KVA / 3600W Hybrid Inverter + Ecco 2.56kWh 25.6V 100Ah LiFePO4 Battery | Solar Backup & Load Shedding Solution
Description:
The MUST 3.6KVA Hybrid Inverter, paired with the Ecco 2.56kWh 25.6V 100Ah Lithium Iron Phosphate (LiFePO4) Battery, is a powerful and efficient energy storage solution for homes and businesses. Designed for hybrid solar integration, this system allows seamless switching between solar, battery, and grid power, ensuring uninterrupted electricity supply during load shedding or outages.
The MUST Hybrid Inverter features MPPT (Maximum Power Point Tracking) technology, maximizing solar energy efficiency by up to 30% more than PWM controllers. The Esener LiFePO4 battery provides high energy density, long lifespan, and rapid charge/discharge performance, making it an ideal off-grid and backup power solution.
Must 3.6kW 100A 24V MPPT Solar Hybrid Inverter PV1800 ECO
Versatile Off-Grid & Hybrid Power Solution
The Must PV1800 ECO 3.6kW Hybrid Inverter is a multi-functional energy solution, integrating an inverter, MPPT solar charge controller, and battery charger into a compact unit. Designed for off-grid and hybrid applications, it provides reliable, uninterrupted power by efficiently managing solar energy, AC utility, and battery storage.
With a high PV input voltage range (up to 400V/450V/500V), this inverter maximizes solar energy utilization and can function without a battery, making it a cost-effective and flexible solution for renewable power needs.
Features:
- Pure Sine Wave Output: Provides stable power for sensitive electronics.
- Smart LCD Interface: Allows configuration of operating modes, charge current, and voltage settings.
- Integrated MPPT Solar Charge Controller: Enhances solar energy efficiency.
- Broad PV Input Voltage Range: Supports high solar voltages for increased compatibility.
- Battery-Free Operation: Can power loads directly from solar panels.
- Dual Output for Smart Load Management: Prioritizes critical loads for optimized performance.
- Advanced Protection System: Overload, short circuit, and deep discharge protection.
- Cold Start Function: Enables startup without grid power.
- Remote Monitoring: Compatible with RS485 and CAN communication for lithium battery integration.
Technical Specifications:
Inverter Mode:
- Rated Power (Main + Secondary Load): 3600VA / 3600W
- DC Input Voltage: 24VDC, 135A
- AC Output Voltage: 230VAC, 50/60Hz, 15.7A
- Power Factor: 1.0
AC Charger Mode:
- AC Input Voltage: 230VAC, 50/60Hz, 17.7A
- DC Output Voltage: 24VDC, 60A
Solar Charger Mode:
- Maximum MPPT Charge Current: 100A
- MPPT Voltage Range (Typical): 30-320VDC
- Maximum PV Input Voltage (VOC): 400VDC
- Maximum PV Input Current: 18A
- Maximum MPPT Power: 4000W
- Maximum Charge Current: 100A
What's Included:
- 1 × Must 3.6kW 24V MPPT Hybrid Inverter
- 1 × User Manual
Warranty:
- 1-Year Manufacturer Warranty
Battery Specifications (Ecco 2.56kWh 25.6V 100Ah Lithium Iron Phosphate Battery):
- Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 25.6V
- Capacity: 100Ah (2.56kWh)
- Cycle Life:
- 2,200+ cycles at 100% Depth of Discharge (DOD)
- 4,000+ cycles at 80% DOD
- Charge & Discharge Performance:
- Maximum Charging Current: 100A
- Maximum Discharging Current: 100A
- Voltage Range: 20.0V - 29.2V
- Self-Discharge Rate: Low, ensuring long-term energy retention.
- Built-in Battery Management System (BMS):
- Overcharge, over-discharge, and over-temperature protection
- Electronic Circuit Breaker and Current Limiting for Safety
- Mounting Options:
- Standard 19-inch Rack Mount
- Wall Mount Brackets Included
- Weight: 26kg
- Dimensions: 484 x 420 x 133mm
- Design Life: 10+ Years
- Warranty: 5-Year Manufacturer's Warranty
What's Included in the Package:
- 1x MUST Hybrid Inverter 3KVA / 3000W 24V (MPPT 60A, Pure Sine Wave)
- 1x Ecco 2.56kWh 25.6V 100Ah Lithium Iron Phosphate Battery
- Battery Accessories:
- Battery Cables + & -
- User Manual
Optional Add-On:
- Wi-Fi Dongle for Remote Monitoring
Important Notes:
- Installation must be carried out by a qualified wireman or master electrician.
- A valid Certificate of Compliance (COC) is required for warranty claims.
- Warranty claims without professional installation proof, installation photos, or a valid COC may be rejected.
- Damage due to improper use or burning out of the unit is not covered under warranty.
Ideal For:
- Load shedding and emergency power backup
- Small business and home solar setups
- Off-grid and hybrid solar energy storage
- Energy-efficient backup for essential appliances
Installation & Warranty Information:
- Inverter Warranty: 2-Year Repair Warranty
- Battery Warranty: 5-Year Manufacturer's Warranty (Retains 80% capacity or 3000 cycles, whichever comes first)
