SELECTED OPTION:

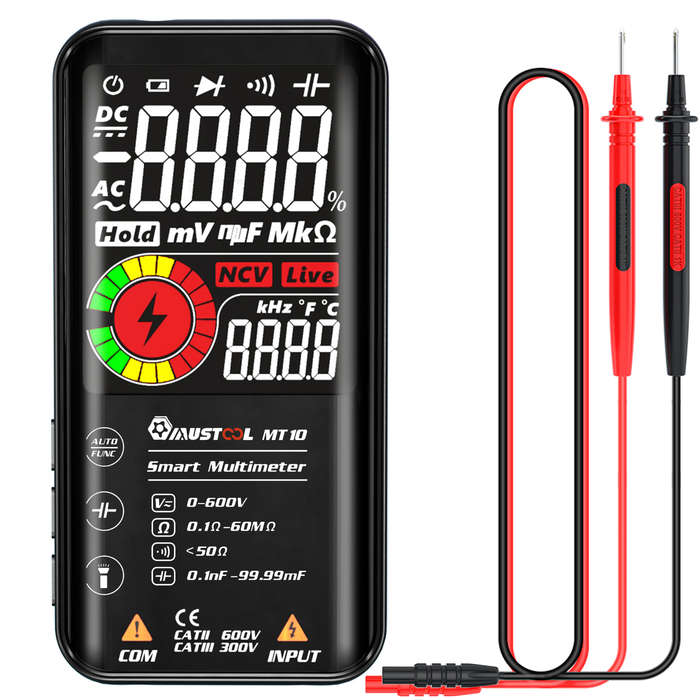

MODEL: MT10

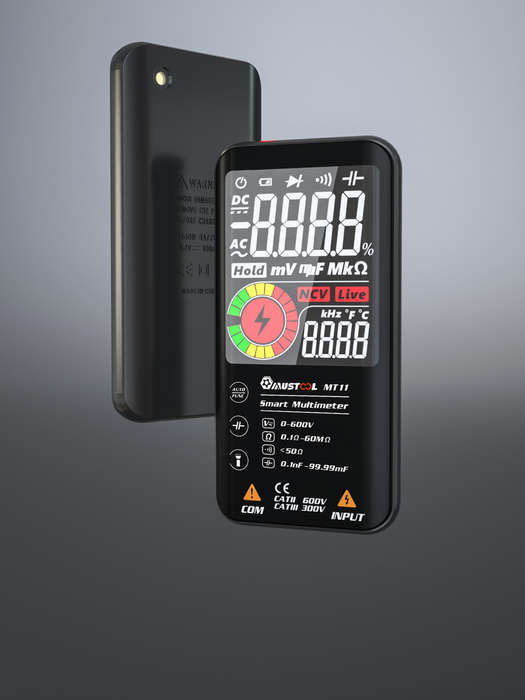

Features: [Phone Size Design]: Super-thin body and pocket size design make it looks ike a real phone. Ideal for daily diy use, teachal use, or fashion use.

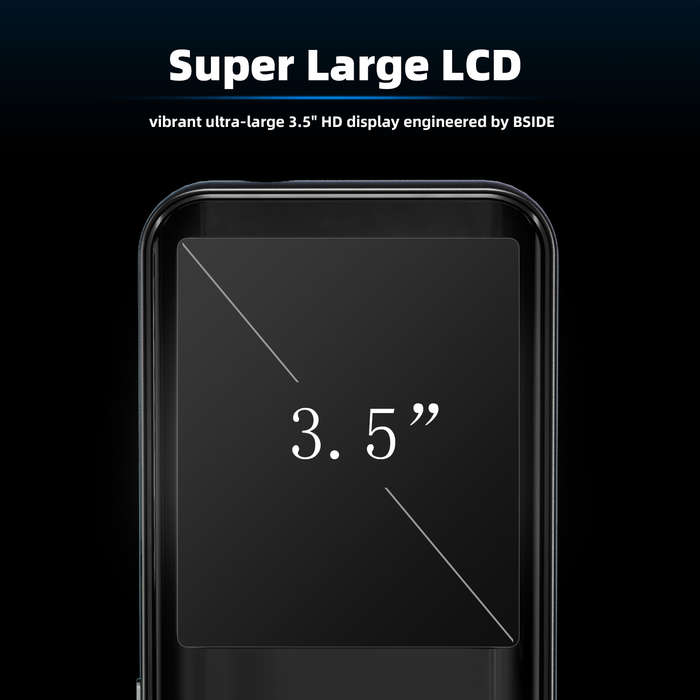

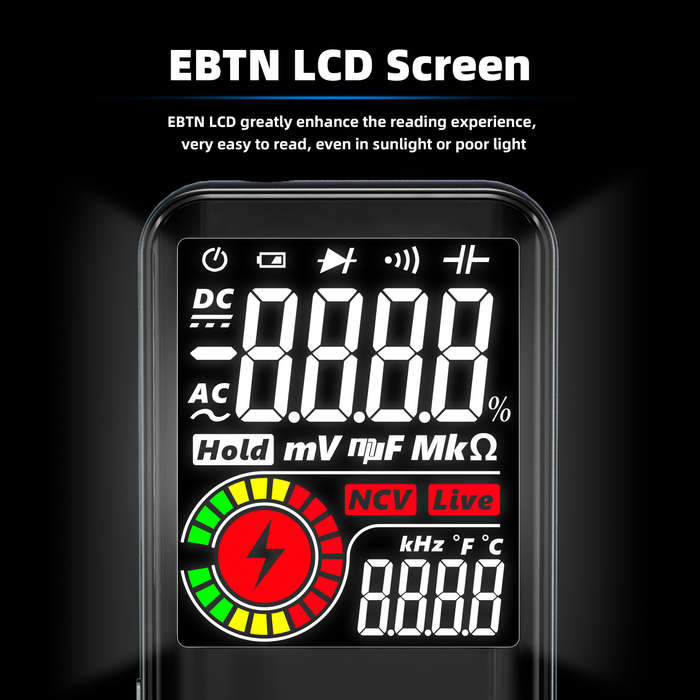

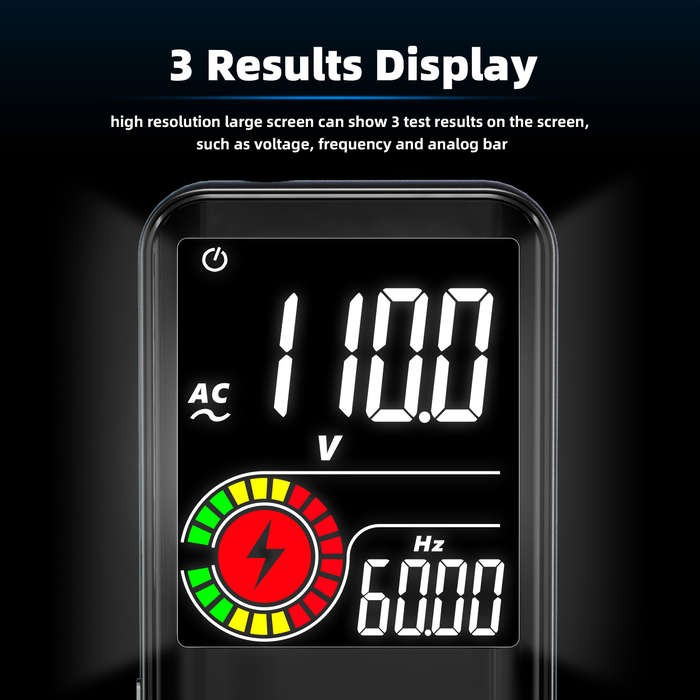

[Large Screen 3 Line Display]: Large screen triple line display can show 3 test results on the screen, such as voltage, frequency and analog bar.
[Automatic Identification Design]: Automatic identification design allows for no-switching when testing AC/DC voltage, Hz, continuity and resistance.
[Flashlight Design]: Flashlight design makes measurement more efficient. Hang hole design make it more portable.
[Unibody Design]: Unibody design, no need to plug in, out probes, which not only can save learning and test time, but also prevent wrong insertion of ports, which may burn out the multimeter.
[Automatic Measurement and Protection Function]: Automatic measurement range and full range overload protection function, the maximum display value is 9999.
[Multi-function Test Design]: It can be used for temperature, NCV, voltage, resistance, capacitance, frequency, duty cycle, diode, continuity, and live test.
[Auto Power Off Function]: After 5 minutes, the multimeter will automatically turn off any input signal to save power.
[ Ambient temperature measurement ]:With temperature measurement function, temperature unit ?ﾣC/?ﾣF switch function
Specification:

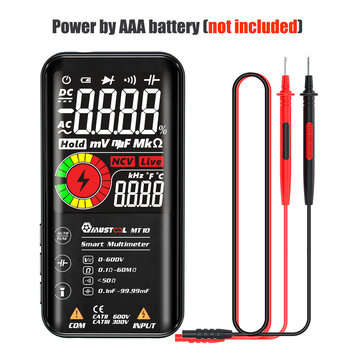

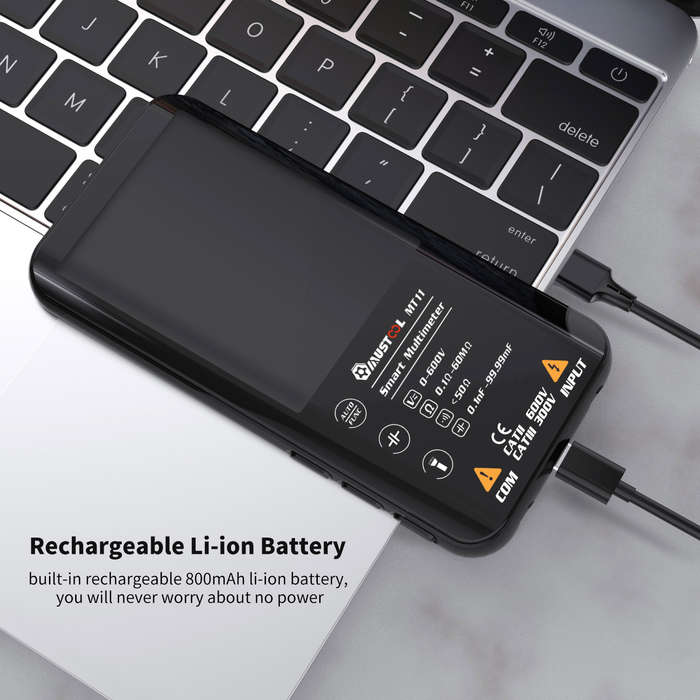

Display: 9999 counts Screen: 3.5 inch DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V Resistance: 1??-999.9?? ±(2.0%+5); 1k??-60M?? ±(1.0%+3); Resolution: 0.11?? Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF Frequency:? 1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz 1KHz-60KHz ±(1.0%+5) (ACV:10V-620V);? Resolution: 0.001Hz Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1% Diode: Auto identify diode if less than 3.0V V-Alert(non-contact voltage detection): beep alarm sounds Live Check: alarm beep sounds, LCD screen display stripe Continuity: If the resistance is less than 30??, the beeper sounds Power: 1*Li-ion 800mAh(MT11)/1.5V (AAA) x 2(MT10) Package Size: 147*85*42mm Package Weight: 180g

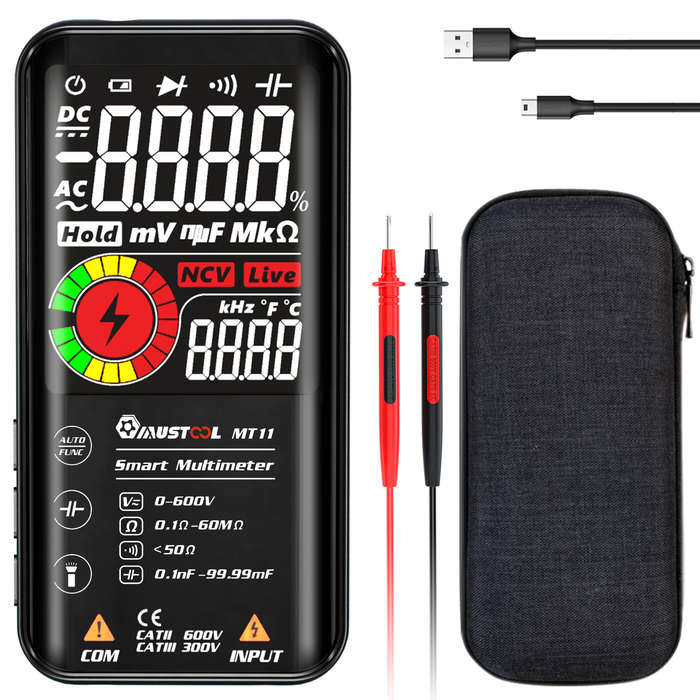

Package Includes:

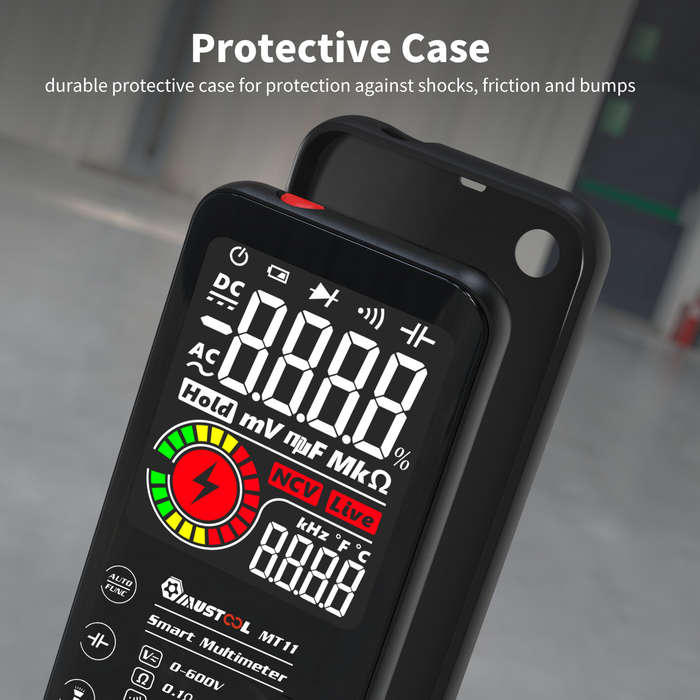

1 * Multimeter? 1 * Test lead?? 1 * English user manual? 1 * Packing box 1 * USB charging cable???MT11?Only??? 1 * EVA portable cloth bag???MT11?Only??? 1 * Protective shell???MT11?Only???
Details Picture:
