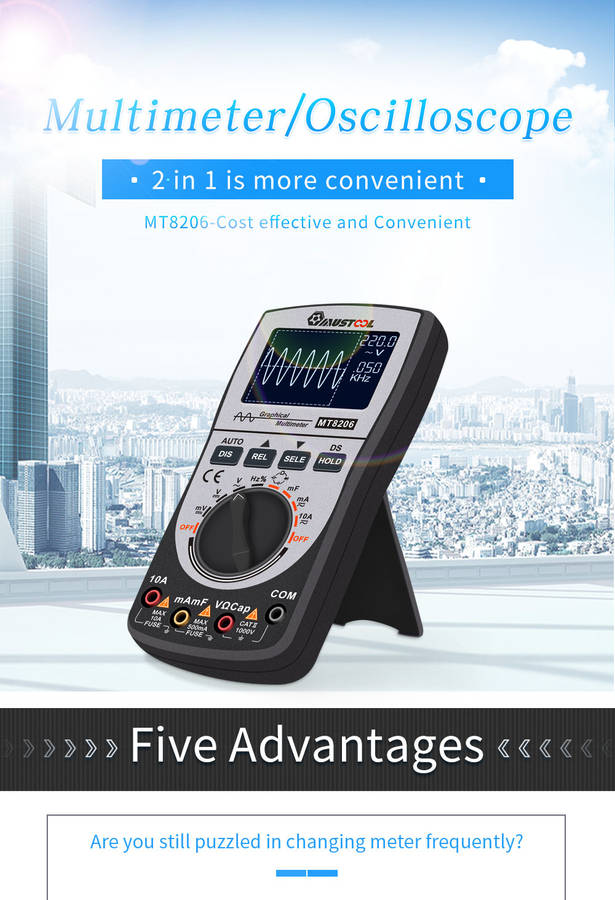

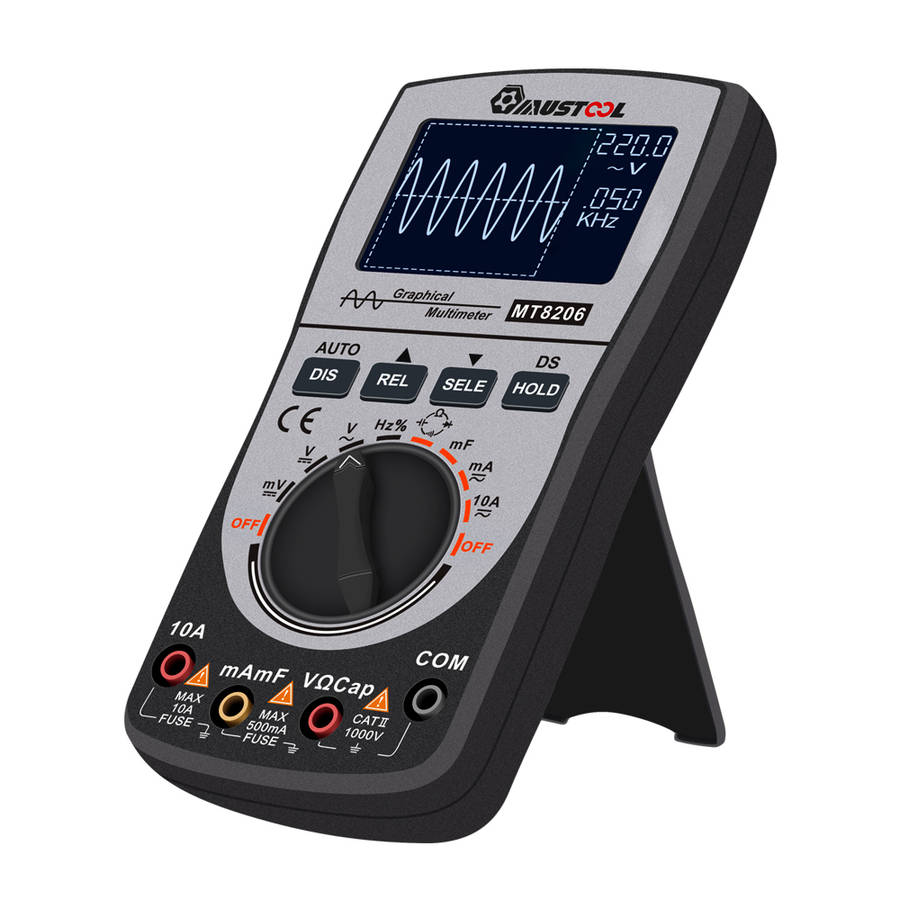

MUSTOOL MT8206 2 in 1 Intelligent Digital Oscilloscope Multimeter AC/DC Current Voltage Resistance
New
R1,399.00
Closed
29 Nov 20 21:31
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Customer ratings:
Product code
ELECTRONICS1331666
Bob Shop ID
491236302
WE PAY ALL CUSTOM FEES ON THIS ORDER!! NO ADDITIONAL FEES!! HASSLE FREE SHOPPING!!
Technology upgrades:
Waveform signal display within 20KHz + 3999 Counts Display Multimeter, such a amazing instrument!
More improvements , higher performance, smaller size!New Technology upgrades(For products shipped after 2018.10.05):
According to the feedback information from our users, the MUSTOOL team has made some upgrades:
1.Silent mode
2.Automatic sleep mode can be selected to open or close
3.ACmV small signal waveform measurement

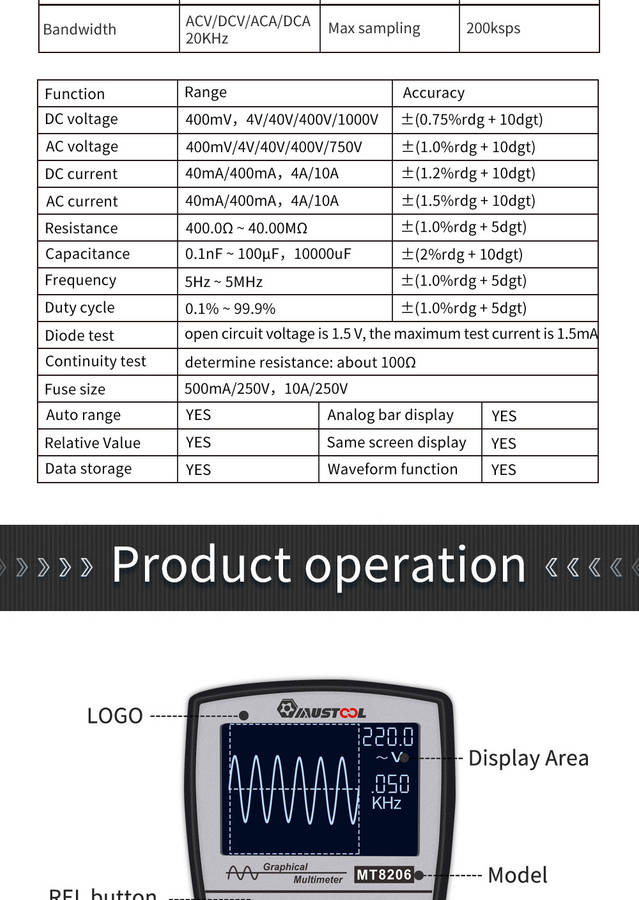

Features:
1.Analog Bandwidth : ACV/DCV/ACA/DCA 20kHz , 200k high-speed A/D sampling
2.HD Display Screen

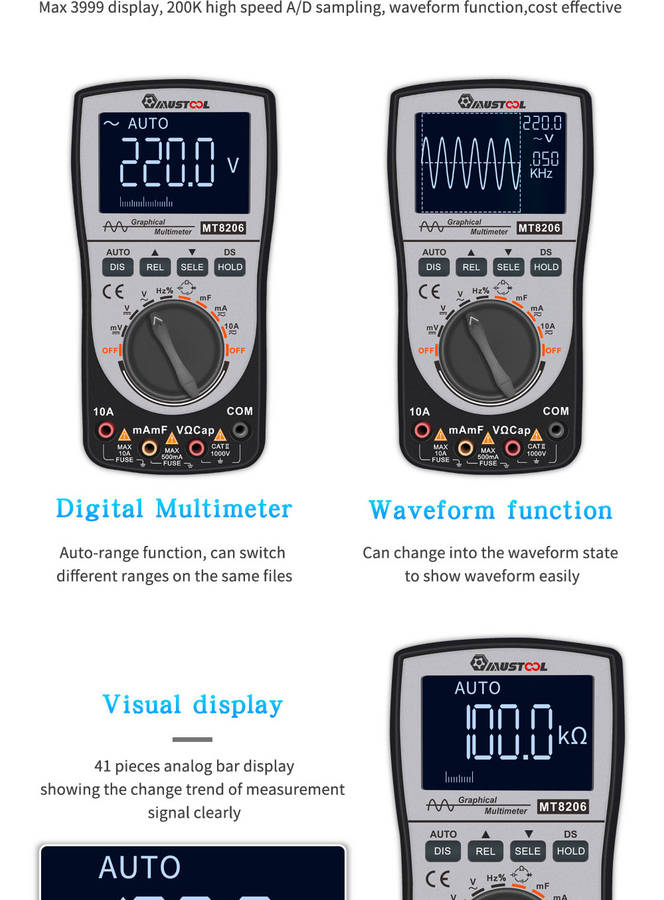

3.Digital multimeter with 41-segment analog bar display,200k high-speed A/D sampling,4000 counts auto-range(can be selected manually), one-button switch of graphical waveform display during measurement

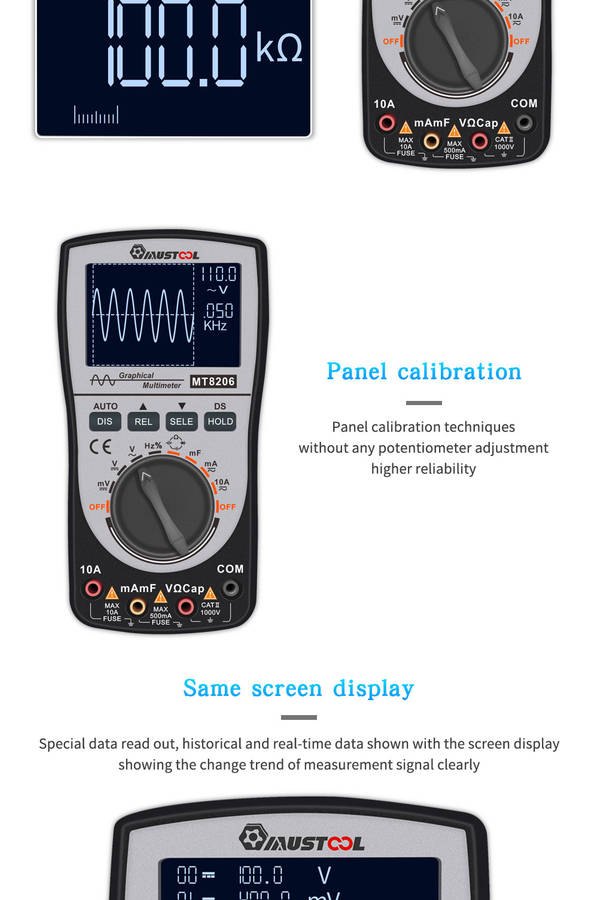

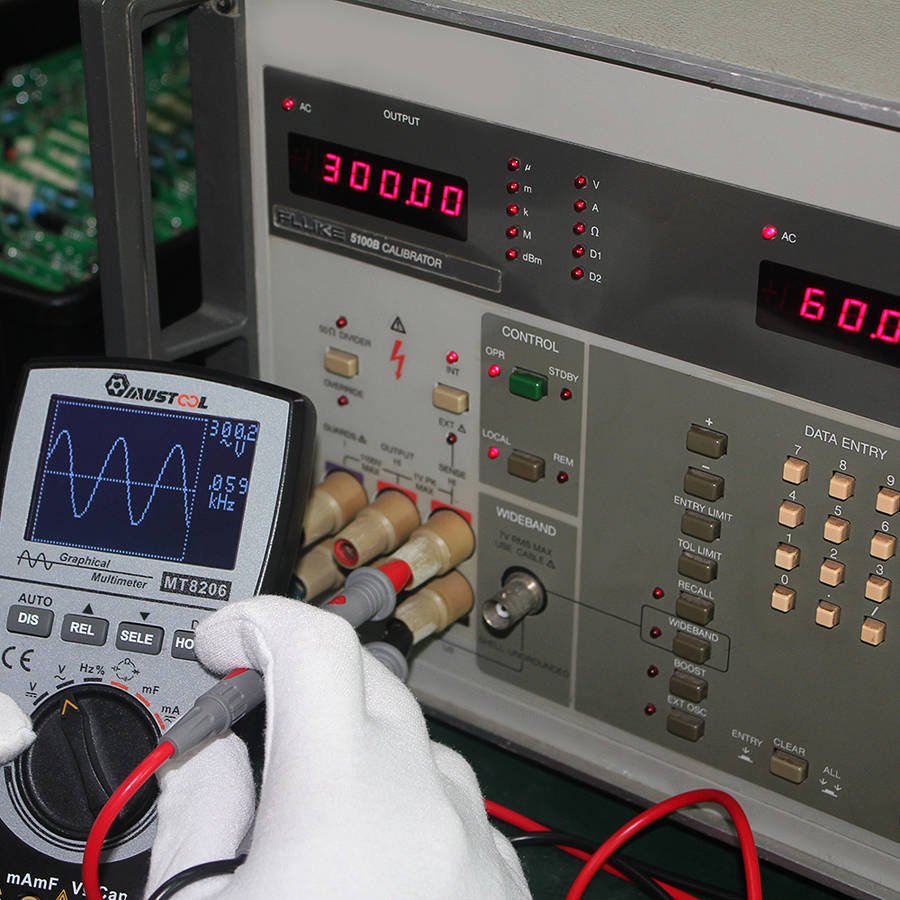

4.High reliability with panel calibration technology and memory calibration, sparing the need for adjustment with potentiometer
5.Storing 100 sets of data and 10 waveforms independently
6.Capable of holding waveform and data during measurement,easy to view and analyze
7.Realizing one-button automatic waveform capture,operator-friendly to learn and operate
8.Displaying historical data and real-time measurement on the same screen with unique record reading mode for easy comparison
9.Effectively eliminating lead resistance, distributed capacitance or interference signals with relative value measurement (clearing)
10.Extending battery life with automatic shutdown function
11.Featuring DC/AC voltage/current, resistance,capacitance/mF (large capacitance)
12.Frequency/duty cycle, diode/continuity test
13.Frequency measurement with 5Hz ~ 5MHz automatic switching range and the maximum input of 380VAC
14.10A AC and DC current measurement with protection against voltage error
15.Capacitance double gear design 0.1nf-100uf gear position: convenient for small capacitors to measure quickly
16.10mf gear position: high capacitance and high accuracy are guaranteed
Silent mode:
Innovative design of the one-button "silent mode", quiet in mastery
In the off state, press and hold the SELE button for two seconds to turn it on to enter the silent mode;
In the off state, press and hold the SELE button for two seconds to turn it on again,it will exit the silent mode.
When the meter enters the "silent mode", all beeps and prompt tone will be turned off.
Automatic sleep:
Avoid the instrument sleeping in the background and use the battery to cause over-discharge of the battery.
The meter without operation for 15 minutes (no rotary switch and button operation) will automatically enter the sleep state;
Turn the rotary switch to OFF and then turn it on again, the meter will enter to normal measurement state.
When the Instrument is in the off state, press and hold the AUTO button for two seconds to turn it on again , then the auto sleep function can be cancelled.
In the off state, press and hold the AUTO button for two seconds to turn it on and then release it to resume auto sleep. features.
Tips The main chip and the power of screen display are only turned off when the meter is automatically turned off, but there is still a part of the circuit working, which will have an operating current of about 4 mA.
ACmV small signal waveform measurement:
ACmV small signal waveform measurement, you need to manually select the ACmv range first, then long press the "SELE" button to enter waveforms display.
Press theAUTO button to realize one-button automatic capture fuction and display a stable waveform.
When the frequency more than 10 kHz, the one-button automatic capture time will be longer.
Silent mode:
Innovative design of the one-button "silent mode", quiet in mastery
In the off state, press and hold the SELE button for two seconds to turn it on to enter the silent mode;
In the off state, press and hold the SELE button for two seconds to turn it on again,it will exit the silent mode.
When the meter enters the "silent mode", all beeps and prompt tone will be turned off.
Automatic sleep:
Avoid the instrument sleeping in the background and use the battery to cause over-discharge of the battery.
The meter without operation for 15 minutes (no rotary switch and button operation) will automatically enter the sleep state;
Turn the rotary switch to OFF and then turn it on again, the meter will enter to normal measurement state.
When the Instrument is in the off state, press and hold the AUTO button for two seconds to turn it on again , then the auto sleep function can be cancelled.
In the off state, press and hold the AUTO button for two seconds to turn it on and then release it to resume auto sleep. features.
Tips The main chip and the power of screen display are only turned off when the meter is automatically turned off, but there is still a part of the circuit working, which will have an operating current of about 4 mA.
ACmV small signal waveform measurement:
ACmV small signal waveform measurement, you need to manually select the ACmv range first, then long press the "SELE" button to enter waveforms display.
Press theAUTO button to realize one-button automatic capture fuction and display a stable waveform.
When the frequency more than 10 kHz, the one-button automatic capture time will be longer.
Package Included:

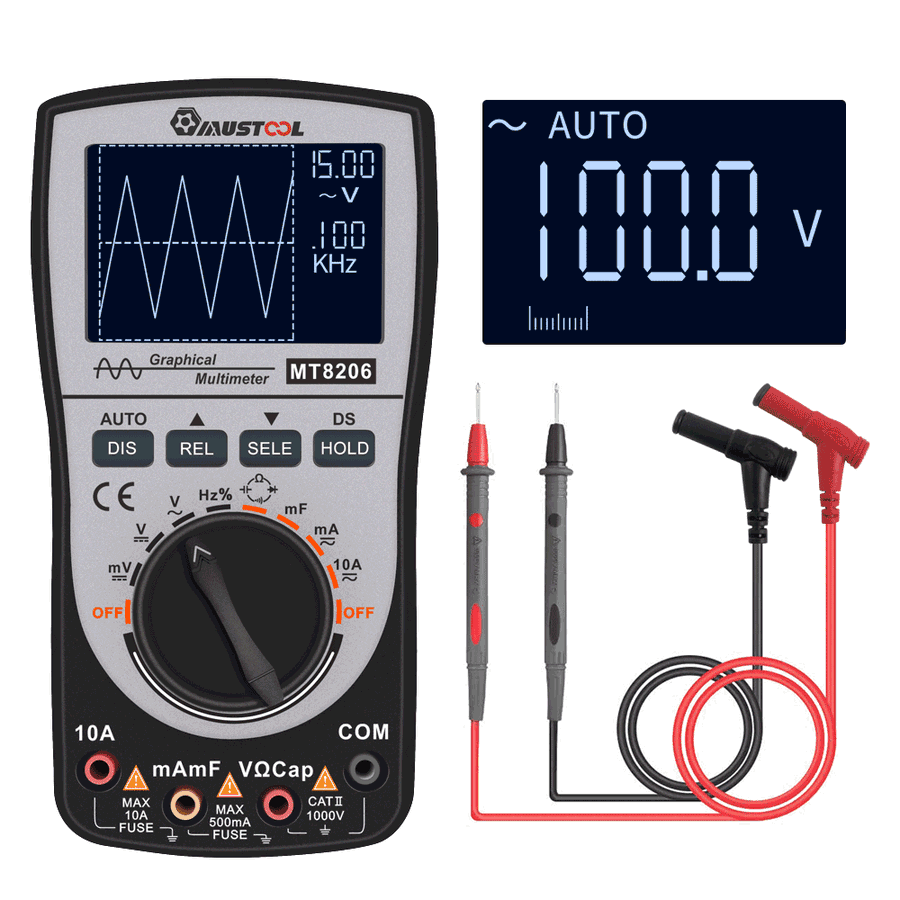

1 x MT8206 Unit
1 x Bag
1 x Pair of Probes
1 x English User Manual
1 x Package Box
1 x Bag
1 x Pair of Probes
1 x English User Manual
1 x Package Box

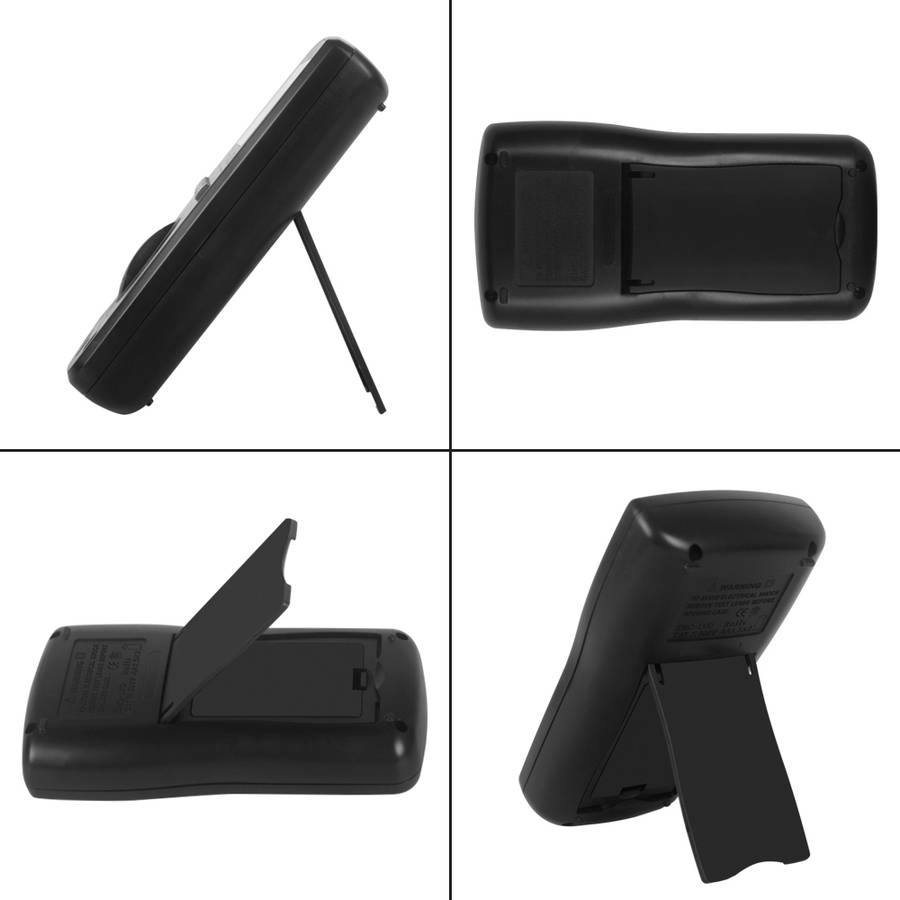

Detail Pictures:
