Description:
It's the first multimeter features capacitance + frequency + auto auto-ranging + general function all in one with such price~ get one in your tool bag now!
Features :

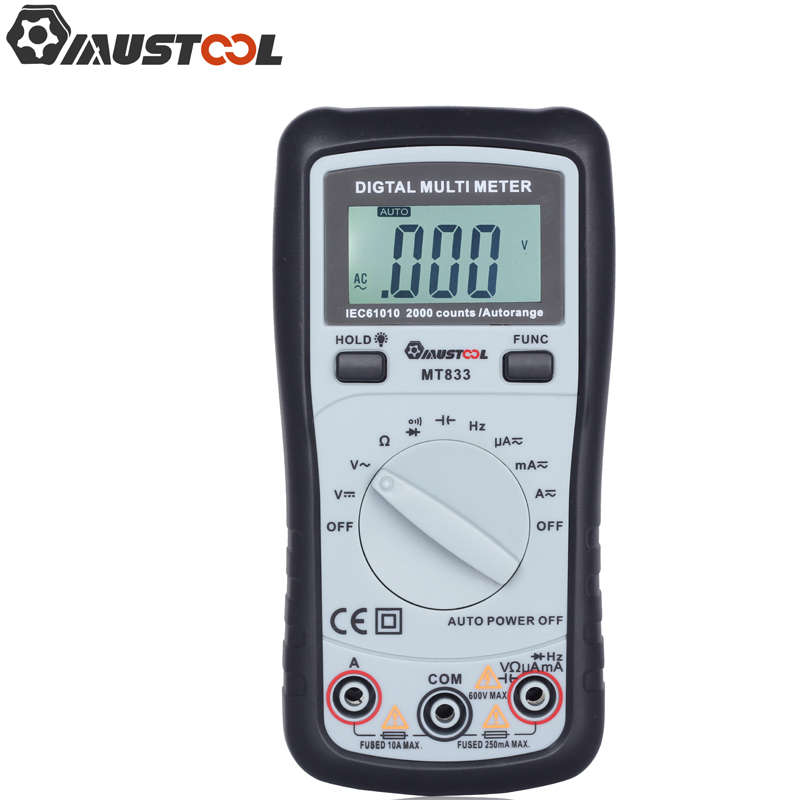

Mustool 2000 counts MT833 pocket digital multimeter: 2000μf capacitance and 200khz frequency measurement, accurately measures current, voltage, resistance, and more, maximum reading over time, auto-ranging and continuity buzzer.
Large backlit lcd display: Auto polarity display, easy to read large backlit lcd display, back-light makes a real difference in low light areas.
CE rated digital mulimeter with over load protection: Designed to safely and accurately troubleshoot a variety of automotive and household electrical.

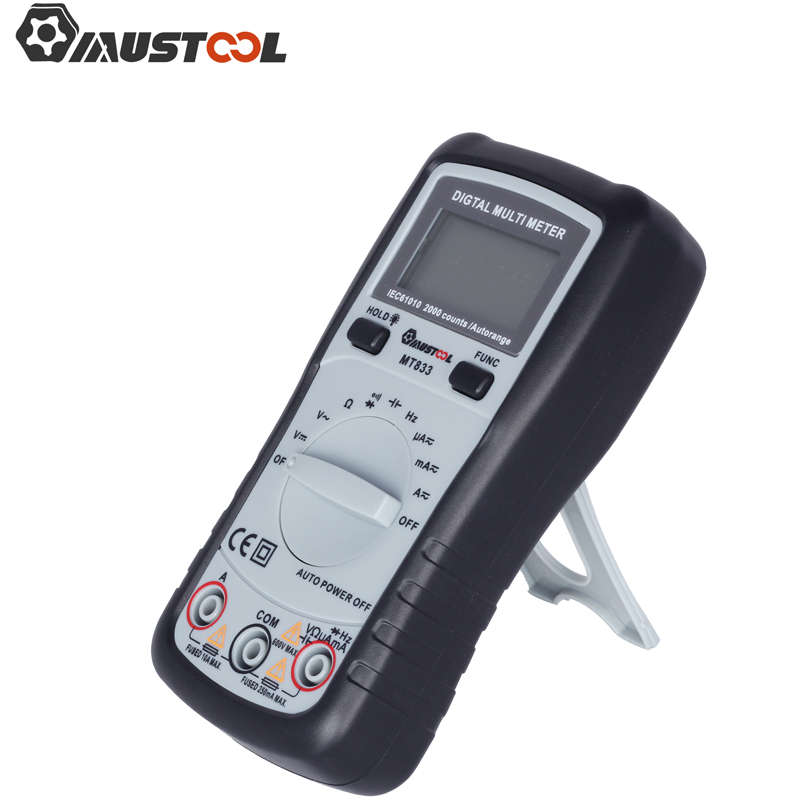

Nice protective black shell with stand built: The case with our multimeter is some kind of non slip, slightly soft plastic that will help with drop protection, the stand places the device at a 45 degree angle and makes the screen easy to see hands free.

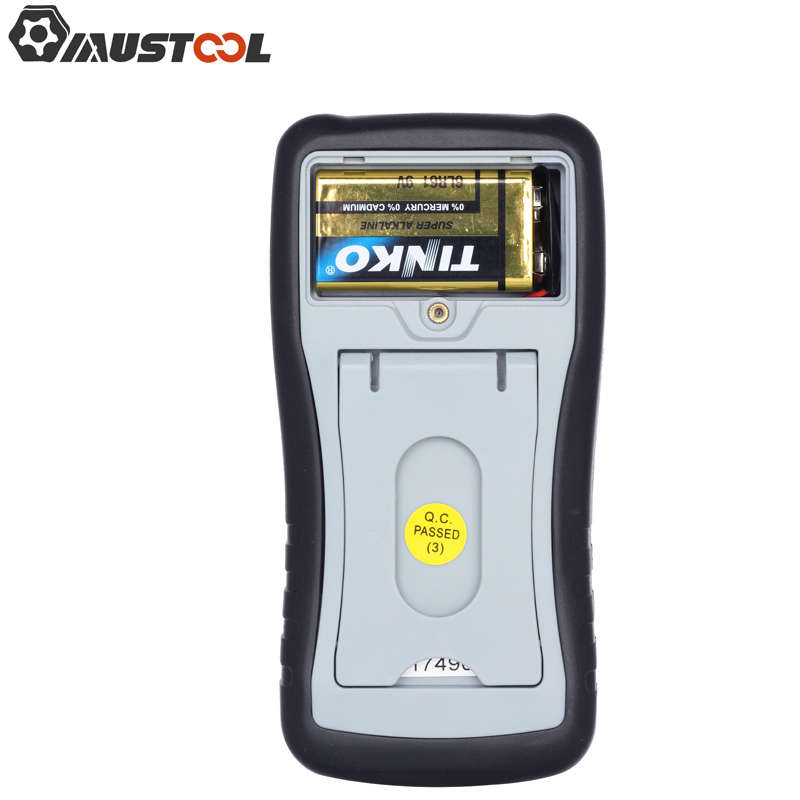

Using 9v volt battery: The compartment lid at the back is secured by one cross head screw, not difficult to remove at all; also, included 2 x test leads and 2 x banana plug to alligator clip cable.
1. Over load protection: Used the PTC protection circuit for Resistance, frequency measurement Double Current Fuses.
High quality ,More Safety. Meet For Euro Standard.Safety Class: IEC 61010-1, CAT II 600V
2. 2000μF Capacitance and 200KHz Frequency measurement.
3. Make Sound of Continuity test more Loudly .
4. Back Light
5. DATA HOLD function
6. Low battery indication
7. Auto Power-OFF
8. Diode test
Specification:
DC Voltage: 200mV/2V/20V/200V+-(0.5%+2) 600V+-(0.8%+2)
AC Voltage: 2V/20V/200V+-(0.9%+3) 600V+-(1.2%+3)
DC Current: 200uA/2000uA/20mA/200mA/10A+-(1.5%+3)
AC Current: 200uA/2000uA/20mA/200mA/10A+-(1.5%+4)
Resistance: 200ohm/2Kohm/20Kohm/200Kohm+-(0.8%+2), 2Mohm/20Mohm+-(1.0%+2)
Frequency: 200kHz
Capacitance: 2000uF

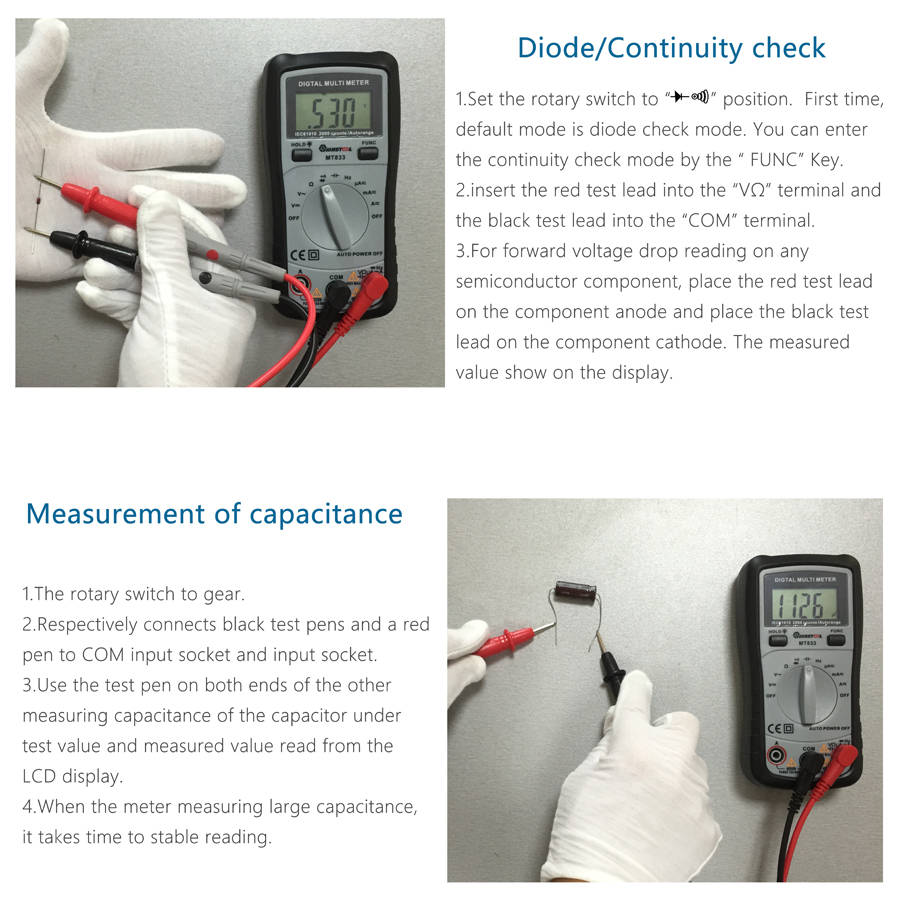

Diode check: Resolution: 0.001V, Will display the forward drop voltage.
Continuity check: If measured resistance less than 100Ω, will buzzer is sounded. Sound loudly ,Easliy to hear.
Power Supply: 9V Battery(6F22 or 1604A Type) x 1pc (not include the package for Aviation Safety)

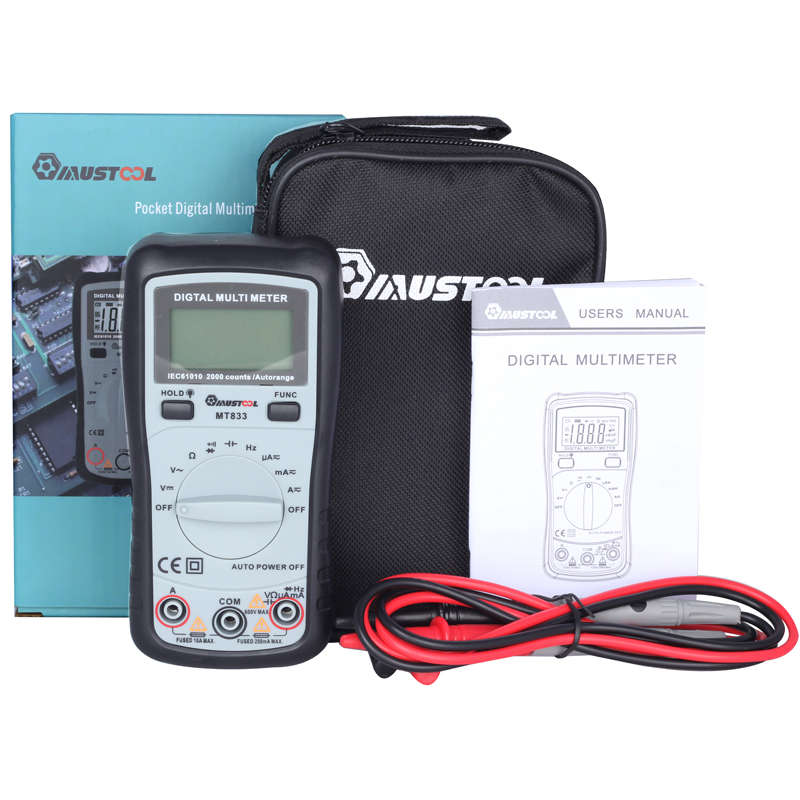

Packages includeds:1 x MS8233D pro multimeter
2 x Test leads
1 x English User manual
1 x Box

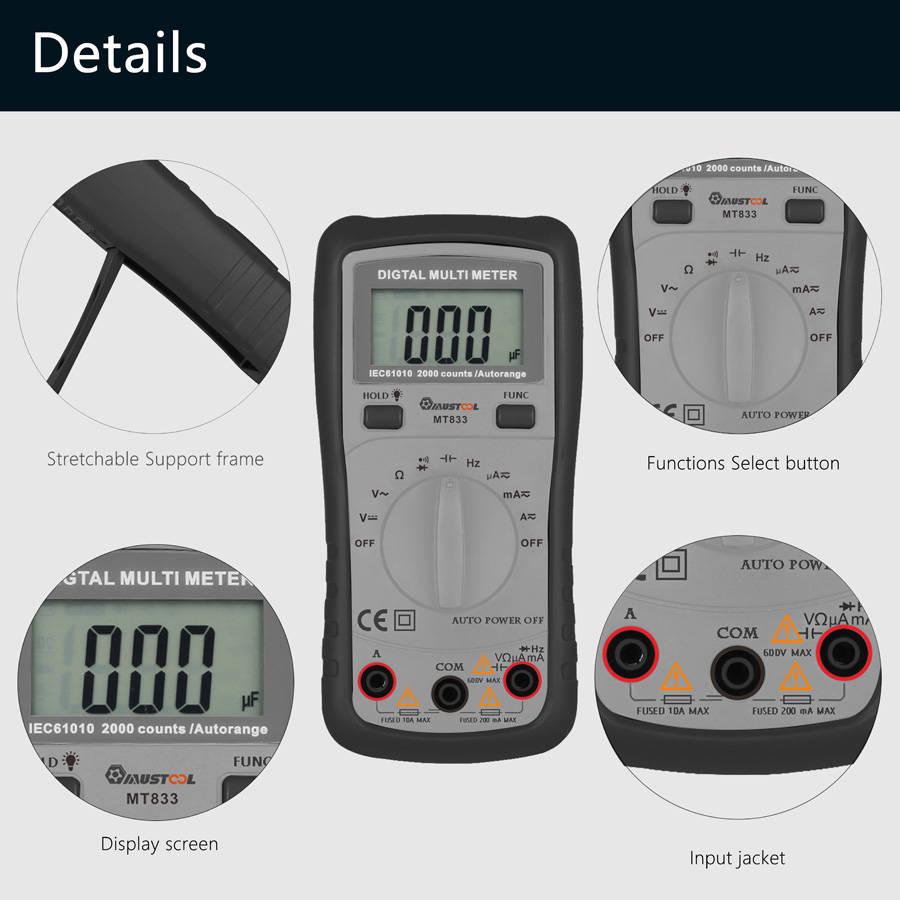

Details:More Details Pictures:
