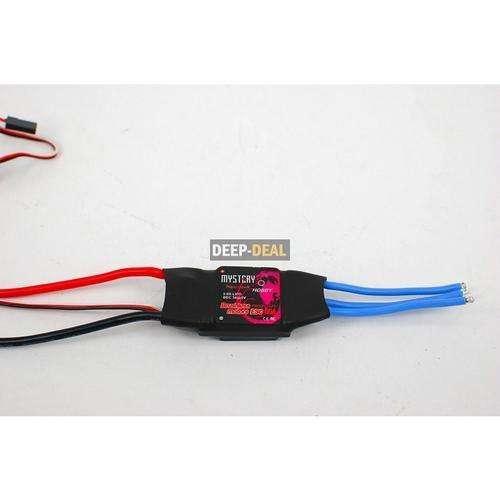

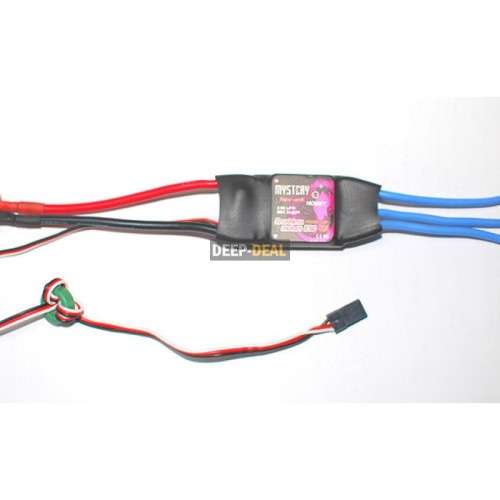

Mystery FlyFun-40A Brushless Speed Controller ESC 3A / 5V BEC 35g 2-6S 450 heli
Compatible with: 400-450 helicopters and Aircraft
Output: Continuous 40A, Burst 60A up to 10 Secs.
Input Voltage: 2-6 cells lithium battery or 5-18 cells NiCd/NIMh battery.
Size: 45mm (L) * 27mm (W) * 16mm (H)
Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery
connected.
Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully
compatible with all market available transmitters.
Programmable Items:
Brake Setting: brake enabled / brake disabled.
Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the
output power.
Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.
Start Mode: normal / soft / very soft.
Timing: low / medium / high.
Reset: reset all the programmable items to their default settings.
Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost
protection.
Features:
Extremely low internal resistance
Super smooth and accurate throttle linearity
Safety thermal over-load protection
Auto throttle shut down in signal lose situation
Supports high RPM motors
Power arming protection (prevents the motor from accidentally running when switched ON)
New Advanced programming software
Our ESC allows you to program all functions to fit your specific needs,which makes it very efficient
and user friendly:
1.User programmable brake setting (we recommend using brake for only folding props
applications)
2.User programmable battery type(LiPo or NiCd/NiMh)
3.User programmable low voltage cutoff setting
4.User programmable factory default setup restore
5.User programmable timing settings (to enhance ESC efficiency and smoothness)
6.User programmable soft acceleration start ups (for delicate gearbox and helicopter applications)
7.User programmable governor mode(for helicopter applications)
8.User programmable motor rotation(clockwise\counterclockwise)
9.User programmable switching frequency
10.User programmable low voltage cutoff type (power reduction orimmediate shutdown)
