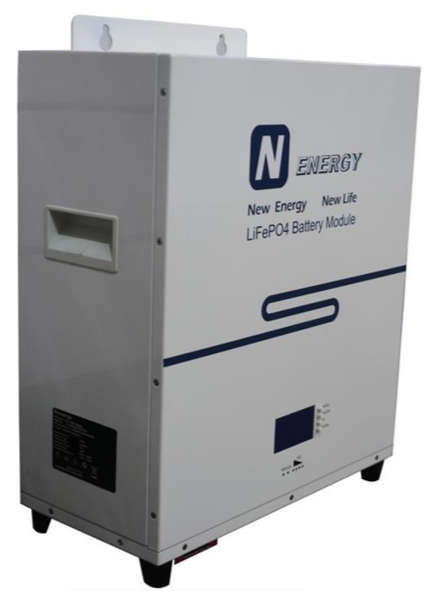

Nenergy 48V 80Ah LiFePo4 Single Battery Module- Total Usable Energy 3.8 kWh, LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage 48V, Rated Capacity (5HR) 80AH, Continuous Charging 30A, Continuous Discharging 30A, Working Voltage Range 40.5V-54V, Floor Standing Or Wall Mount, Battery Cable And Wall Mount Bracket Not Included Design To Work Perfectly Hybrid Invertors Up To 5.5KVA, Retail Box, 1 Year Limited Warranty
Product Overview
The Nenergy 48V 80Ah LiFePo4 Single Battery Module with Total Usable Energy 3.8 kWh is designed for Floor Standing or Wall Mount Installations complete with integrated Battery Management System that is perfect for small to medium residential or office installations with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 5.5KVA . This is unit is designed for single use but can also be connected in Parallel with up to 16 battery packs. Fully integrates and communicates with RS232 and RS485 with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
Highlights
Nenergy 48V 80Ah LiFePo4 Single Battery Module
Floor Standing and Wall Mount Installation -Brackets and Cables Not Included
Complete with integrated Battery Management System (BMS)
Parallel Connection Up To 16 Packs With Full Communication
Normal Voltage: 48V
Rated Capacity (5HR):80Ah
Total Usable 3.8 kWh
Maximum Continuous Charging Current: 30A
Maximum Continuous Discharging Current: 30A
Working Voltage Range 40.5V-54V
Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
LCD Control Panel
Specifications
Stock Code SOL4880AH
Description Nenergy 48V 80Ah LiFePo4 Single Battery Module
Complete with integrated Battery Management System
Rated Capacity (5HR): 80Ah
Voltage: 48V
Discharge Cut-off Voltage: 40.0V
Maximum Continuous Charging Current: 30A
Maximum Continuous Discharging Current: 30A
Parallel: Parallel connection up to 16 packs with full communications
Cells: New Li-Ion Prismatic Cells
Design Life: -/+ 15 Years
Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
Ports: 1x RS-485 Battery Link port
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Dimensions (WxDxH): 550mm x 63mm x 450mm
Weight: Approx. 48kg
What's in the box
1 x Nenergy 48V 80Ah LiFePo4 Single Battery Module
12 Months Warranty
Warranties Notice:
==================
A licensed electrical wireman or master electrician with current registration with the Department of Labor is required to install all inverters and batteries. Once installed, a valid electrical certificate of compliance (COC) that is particular to the installation of the backup or solar system must be granted. Installations must adhere to SANS 10142 in ALL respects. Any warranty claim that is submitted without installation images, a valid COC, and evidence that the item was installed by a trained wireman or master electrician may be denied and will render the warranty claim void.
